Depureco UK
ECOBULL XM DEX 1/3D

ECOBULL XM DEX 1/3D

A compact, ATEX-certified industrial vacuum built to recover very fine combustible dust safely in Zone 22 atmospheres.

Request a Quote Ask a Question
Motor power 1.8 kW
Container capacity 20 Lt
Max airflow 240 m³/h
ATEX Zone 20 (chamber)ATEX Zone 2210-year guarantee

The ECOBULL XM DEX 1/3D is a Depureco industrial vacuum engineered to recover very fine dust safely in ATEX explosion-risk areas classified as dust Zone 22. Certified by an external body for the safe vacuuming of combustible and electrically conductive Type IIIC dust, it pairs Category 1D internal protection — rated to Zone 20 inside the collection chamber — with complete grounding of the whole unit, so static cannot build on the machine as fine dust is drawn in.

Extraction is driven by a certified ATEX side-channel blower with a 1.8 kW motor, rated for continuous 24-hour operation. An M-class antistatic polyester cartridge captures fine particulate, a Jet Clean system keeps that filter working without opening the machine, and a vacuum-limiter safety valve guards the airflow. Compact, sturdy and easy to handle, it is supplied in more than one voltage and frequency configuration to suit different sites and mains supplies.

Built for intensive industrial duty and certified to both CE and ATEX, the ECOBULL XM DEX is specified around total cost of ownership rather than the lowest up-front price. It handles dry powders, solids and shavings as well as wet powders or solids, and is Depureco-engineered to keep working where fine combustible dust is a constant, everyday hazard.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type Atex 3D side channel blower
Motor power 1.8 kW
Frequency 50/60 Hz
Voltage 230 | 400 V
Power supply Electrical

Machine

Safety valve Vacuum limiter valve
Container capacity 20 Lt
Dimensions 516 × 545 mm
Height 1,050 mm
Weight 57 kg
Suction inlet 50 mm
ATEX marking II 1/3D Ex h IIIC T160 Da/Dc
Operating temperature -20/+40 °C

Filter

Primary filter class M
Primary filter type Cartridge
Filter media Antistatic polyester
Primary filter area 16,000 cm²
Filter cleaning system Jet Clean

Performance

Max airflow 240 m³/h
Continuous vacuum 180 mbar
Noise level 72 dB(A)

Key Features

SUCTION UNIT

SUCTION UNIT

The suction unit is a manufacturer-certified Atex side channel blower with direct coupling between motor and impeller. The Side Channel Blower is equipped with a safety valve that ensures continuous work, without any maintenance.

FILTER UNIT

FILTER UNIT

Filtration is ensured by a Class M polyester cartridge filter (filtration efficiency 1 micron) with a high filtering surface area, which guarantees air passage even with a dirty filter.

INTERNAL CERTIFICATION CAT 1D - ZONE 20

INTERNAL CERTIFICATION CAT 1D - ZONE 20

Thanks to its 1D – Zone 20 certified chamber, the vacuum cleaner guarantees maximum safety and compliance when vacuuming combustible or conductive dusts (Group IIIC), even when these are contained within the unit.

COLLECTION UNIT

COLLECTION UNIT

The material is collected inside an AISI 304 stainless steel container, complete with a metal handle that allows its release, to avoid any sparks that could be generated by the electrostatic charge.

Downloads

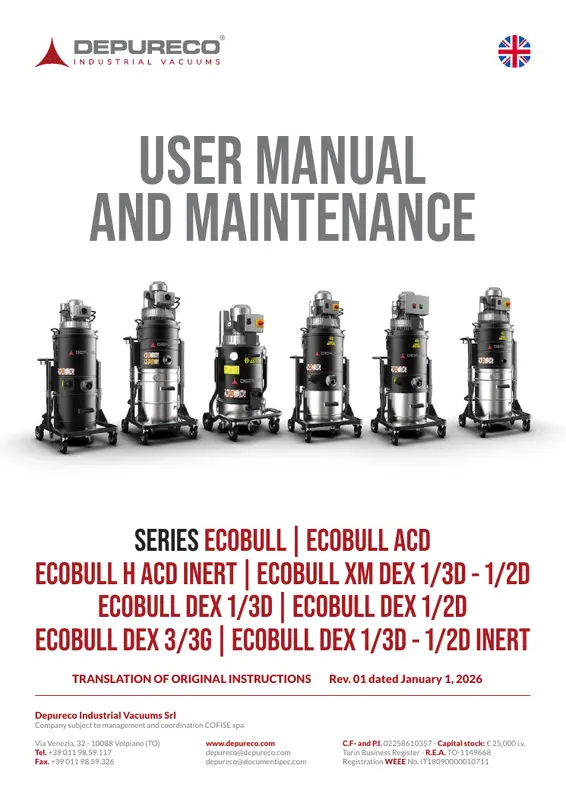

User Manual

Declaration of Conformity

Case Study

ATEX Central Vacuum System for a Flour Mill

How a Depureco ATEX central system controls combustible flour dust across a five-floor mill.

Read case study
Direct from the manufacturer UK-based technical team

Tell us what you need. We'll specify the right machine.

Send us a short description of the job — the material, the volume, the regulations that apply — and we'll come back with a recommended machine and a quote.

Typical response within one working day
