Free UK Site Assessment 10-Year Guarantee UK Support A single high-vacuum CVS suction unit, ducted to serve every point on a cell or line — continuous-duty, with Roots-blower and ATEX-certified options for classified zones.

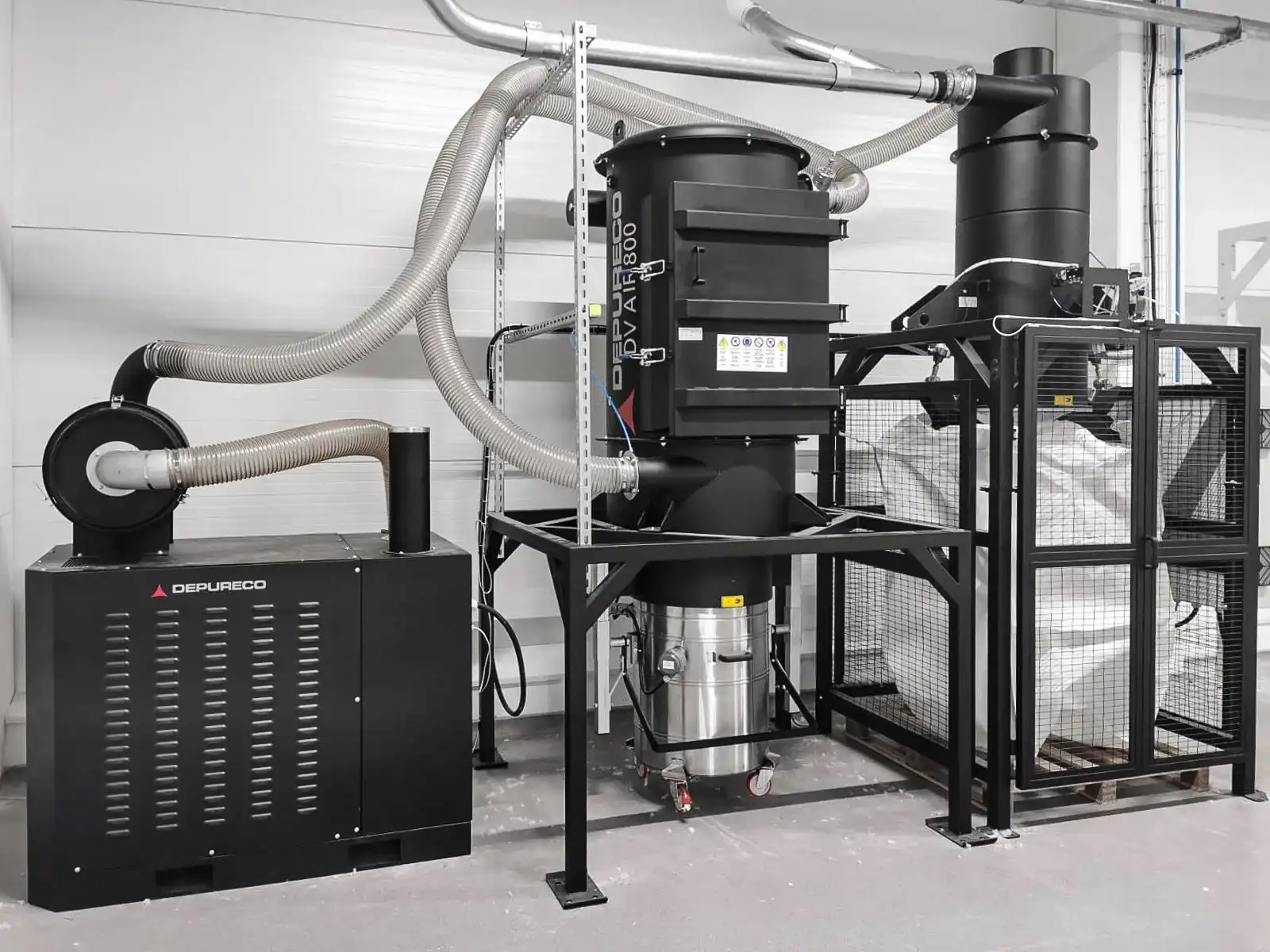

An industrial centralised vacuum system is a single high-vacuum suction unit — not a portable machine — permanently ducted to multiple pick-up points across a cell, line or building, so operators plug a hose in wherever they're working instead of wheeling a vacuum around. The Depureco CVS range runs from the standard side-channel CVS up to the CVS ROOTS, which swaps in a Roots blower for higher airflow and vacuum on demanding, continuous-duty lines, with ATEX-certified 3D Z22 builds for combustible or conductive dust in classified areas.
Search by model below, or tell us the number of pick-up points, duct run and material and we'll size the unit and layout for you.
Need a machine that moves between areas instead of a fixed installation? See our industrial vacuums, or browse the full range.
Showing centralised vacuum systems
CVS is the suction unit for centralized vacuum systems. Available in different motorizations to meet any cleaning or material conveying needs, CVS is combined with a filtration and collection unit to
CVS 3D Z22 is the Atex-certified suction unit for centralized systems, ideal for operating in several points of the company at the same time, with different operators, and moving large quantities of m
CVS ROOTS is a high vacuum suction unit for centralized suction systems characterized by extreme power and reliability. Equipped with a powerful lobe pump with three-lobe rotors, available in differen
CVS ROOTS 3D Z22 is a high vacuum suction unit for centralized Atex suction systems, characterized by extreme power and reliability. Equipped with a powerful Atex-certified three-lobe rotary pump, ava
No machines match all your filters.
Try widening or removing one — ATEX single-phase units, for example, are listed under ATEX vacuums.
Industrial Centralised Vacuum System Questions & Expert Answers
It's a single high-vacuum suction unit, usually sited centrally in a building or plant room, permanently ducted to inlet points across a cell, line or whole site. Instead of wheeling a machine to the work, operators connect a hose at the nearest inlet — one unit covers everywhere it's ducted to, run continuously rather than switched on and off per task.
If dust or debris is generated at several fixed points across a line or building and you'd otherwise need multiple portable machines, a central system covers them all from one suction source and cuts the equipment (and noise) on the shop floor. If the work moves — different machines, different areas, different days — a mobile industrial vacuum stays more practical. Tell us your layout and we'll advise.
Yes — the CVS 3D Z22 and CVS ROOTS 3D Z22 builds are ATEX-certified for Zone 22 (combustible dust in classified areas), so a central system can serve classified zones the same way our mobile ATEX vacuums do. Confirm the zone and dust group against your DSEAR assessment and we'll specify the correct build.
Direct from the manufacturer UK-based technical team Send us a short description of the job — the material, the volume, the regulations that apply — and we'll come back with a recommended machine and a quote.
