CVS 3D Z22

CVS 3D
Z22

Atex Certified Suction Unit For Centralized Systems

Request a Quote Ask a Question
Motor power 7.5 kW | 11 kW | 15 kW | 18.5 kW | 22 kW
Max airflow 700 | 920 | 1,350 | 1,985 | 1,180 m³/h
ATEX Zone 2210-year guarantee

CVS 3D Z22 is the Atex-certified suction unit for centralized systems, ideal for operating in several points of the company at the same time, with different operators, and moving large quantities of material over long distances. Available with different motors to meet every cleaning or material transportation need, CVS ATEX is combined with a filtration and collection unit to feed centralized systems with numerous suction points, even at different heights or levels.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type Atex side channel blower
Motor power 7.5 kW | 11 kW | 15 kW | 18.5 kW | 22 kW
Frequency 50/60 Hz
Voltage 400 V
Insulation class 55 | F
Power supply Electrical

Machine

Safety valve Vacuum limiter valve
Dimensions 821 × 1,319 mm
Height 1,792 mm
Suction inlet 70 | 102 | 127 mm
ATEX marking II 3D Ex htc IIIB T140°C Dc
Operating temperature -10/+40 °C

Performance

Max airflow 700 | 920 | 1,350 | 1,985 | 1,180 m³/h
Continuous vacuum 280 | 300 | 350 | 270 | 200 | 380 mbar
Noise level 74 dB(A)

Key Features

SUCTION UNIT

SUCTION UNIT

The suction unit is a manufacturer-certified Atex side channel blower with direct coupling between motor and impeller. The Side Channel Blower is equipped with a safety valve that ensures continuous work, without any maintenance.

EASY HANDLING

EASY HANDLING

Two pass-through guides located on the bottom facilitate handling of the unit by forklift truck

ELECTRICAL PANEL WITH REMOTE START

ELECTRICAL PANEL WITH REMOTE START

Management via electrical panel equipped with star/delta start and remote control. Implementable with additional functions

REQUIRES FILTRATION UNIT

REQUIRES FILTRATION UNIT

This unit does not include filtration and collection units, it requires coupling with a filter pre-separator or similar unit

Downloads

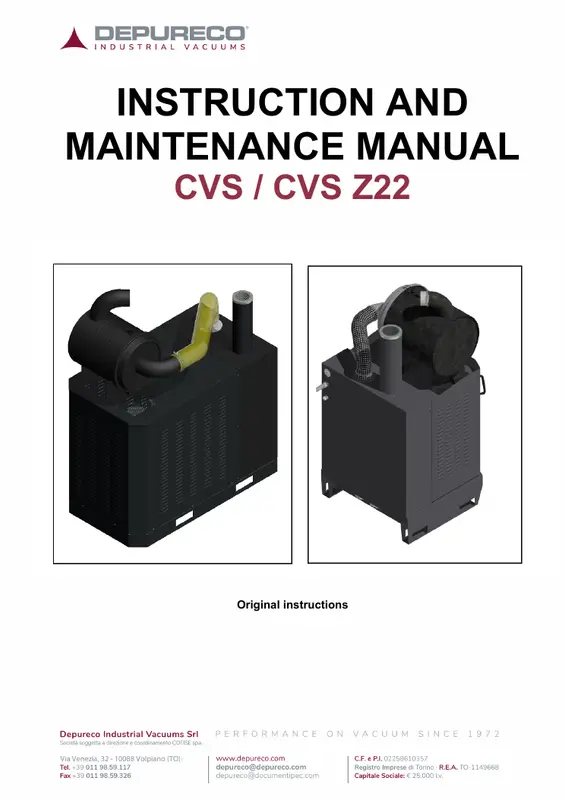

User Manual

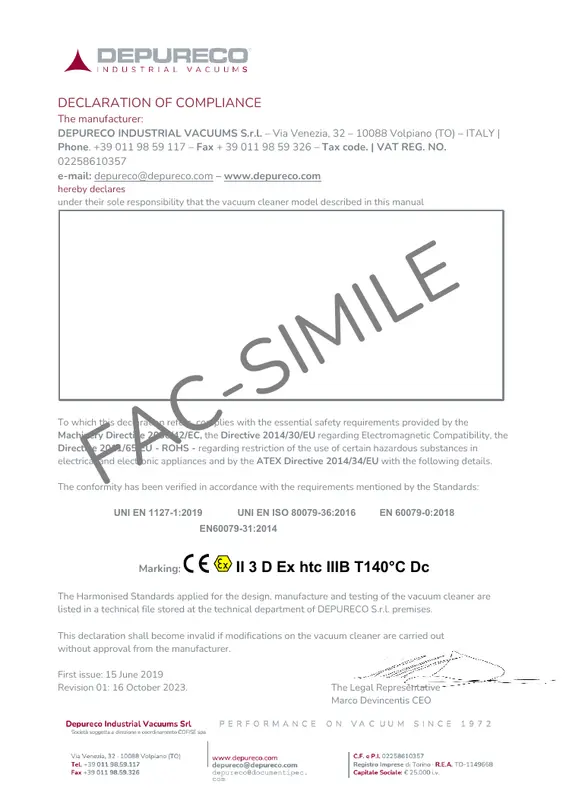

Declaration of Conformity
