Depureco UK
CVS

CVS

Suction Unit For Centralized Systems

Request a Quote Ask a Question
Motor power 11 kW | 12.5 kW | 15 kW | 18.5 kW | 22 kW | 20 kW | 25 kW
Max airflow 950 | 550 | 1,120 | 500 | 1,380 | 1,770 | 1,100 | 2,100 m³/h
10-year guarantee

CVS is the suction unit for centralized vacuum systems. Available in different motorizations to meet any cleaning or material conveying needs, CVS is combined with a filtration and collection unit to feed centralized systems with numerous suction points, even at different heights or levels. Available with Atex certification

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type Side channel blower
Motor power 11 kW | 12.5 kW | 15 kW | 18.5 kW | 22 kW | 20 kW | 25 kW
Frequency 50/60 Hz
Voltage 400 V
Insulation class 55 | F
Power supply Electrical

Machine

Safety valve Vacuum limiter valve
Dimensions 821 × 1,319 mm
Height 1,792 mm
Suction inlet 102 | 127 mm

Performance

Max airflow 950 | 550 | 1,120 | 500 | 1,380 | 1,770 | 1,100 | 2,100 m³/h
Continuous vacuum 300 | 440 | 290 | 530 | 350 | 320 | 275 | 460 mbar
Noise level 74 | 78 dB(A)

Key Features

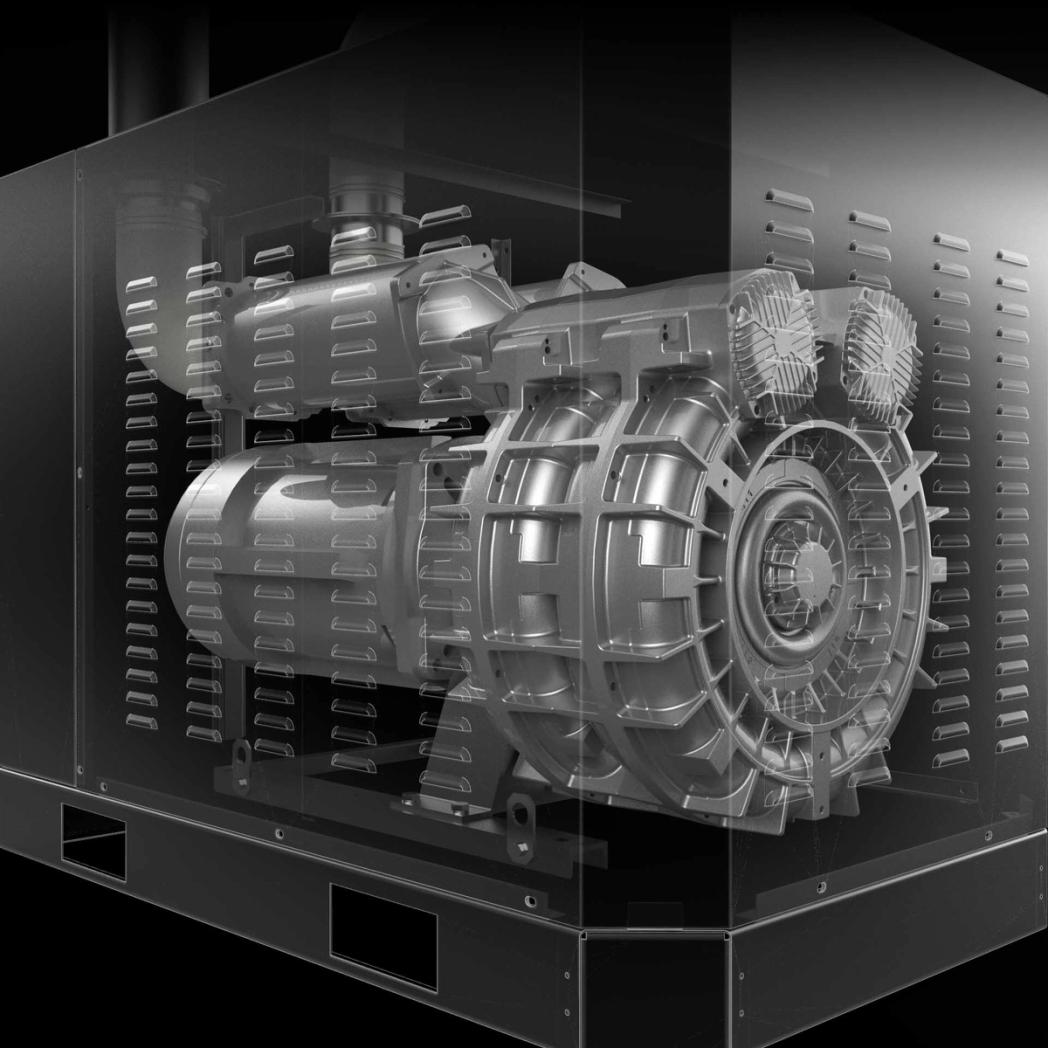

SUCTION UNIT

SUCTION UNIT

The suction unit is a side channel blower with direct coupling between motor and impeller. The Side Channel Blower is equipped with a safety valve to ensure continuous, maintenance-free operation.

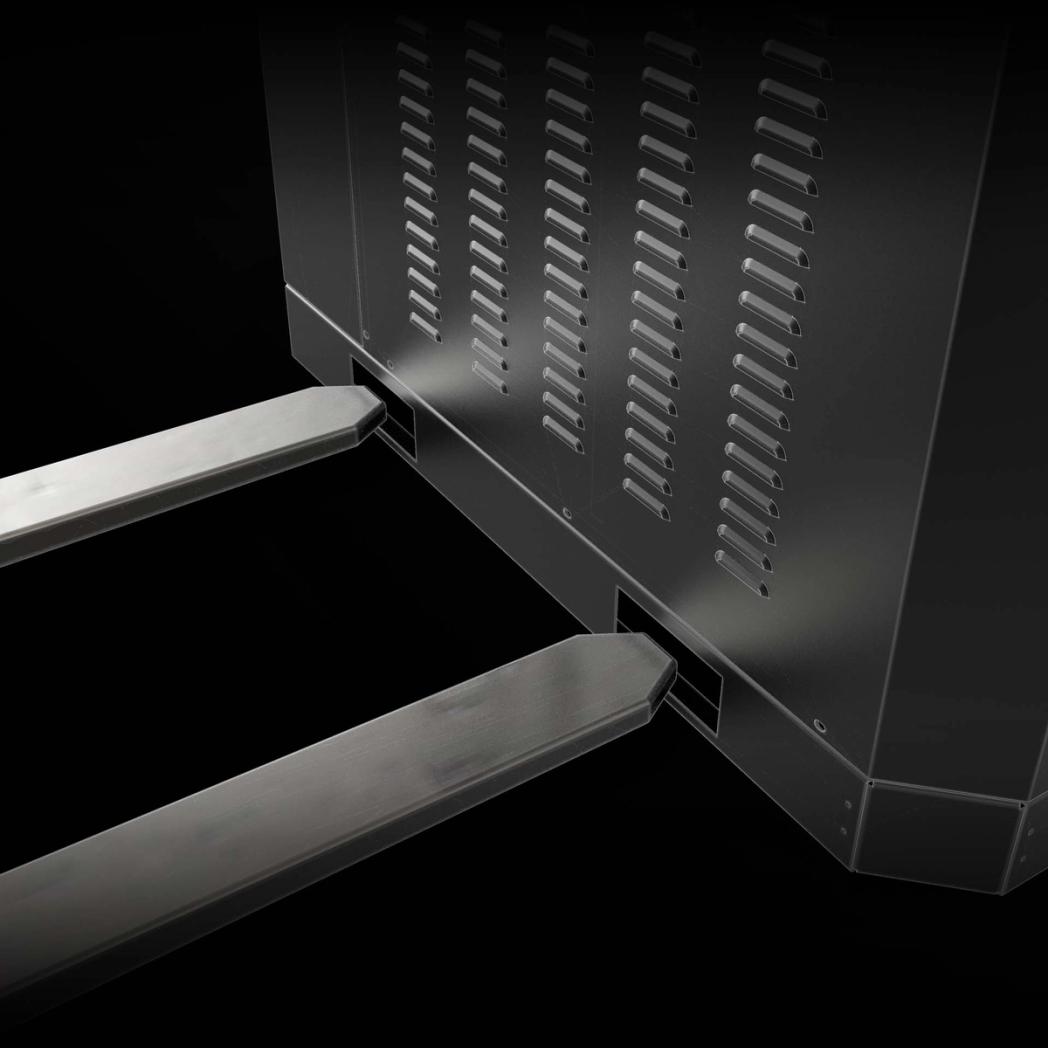

EASY HANDLING

EASY HANDLING

Two pass-through guides located on the bottom facilitate handling of the unit by forklift truck

ELECTRICAL PANEL WITH REMOTE START

ELECTRICAL PANEL WITH REMOTE START

Management via electrical panel equipped with star/delta start and remote control. Implementable with additional functions

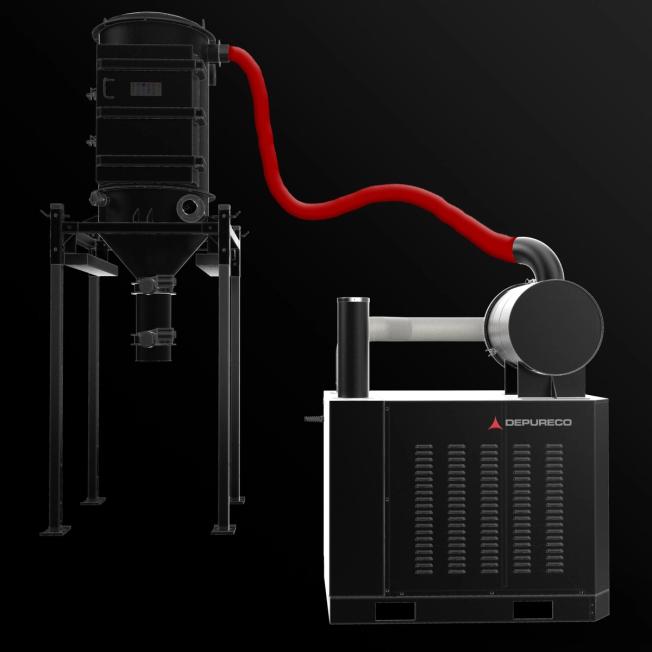

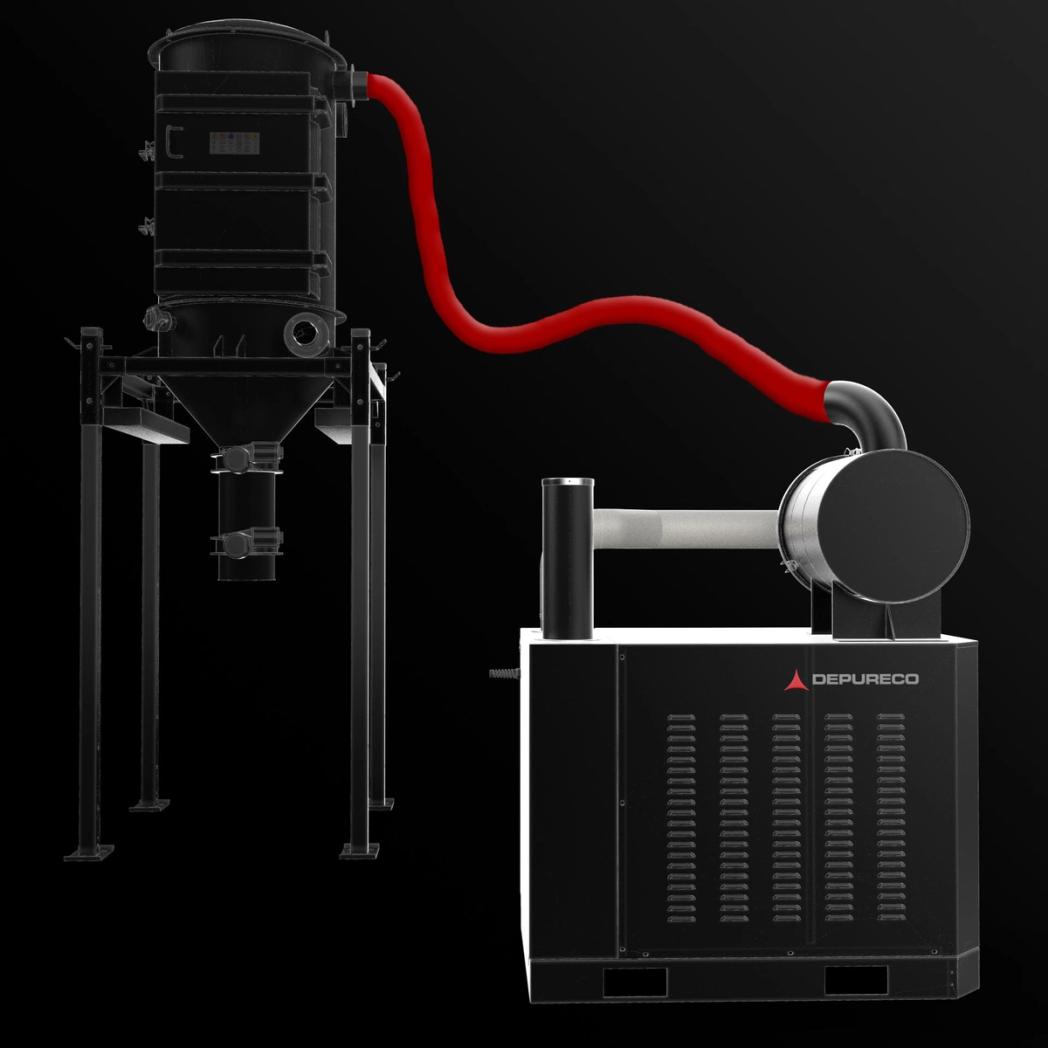

REQUIRES FILTRATION UNIT

REQUIRES FILTRATION UNIT

This unit does not include filtration and collection units, it requires coupling with a filter pre-separator or similar unit

Downloads

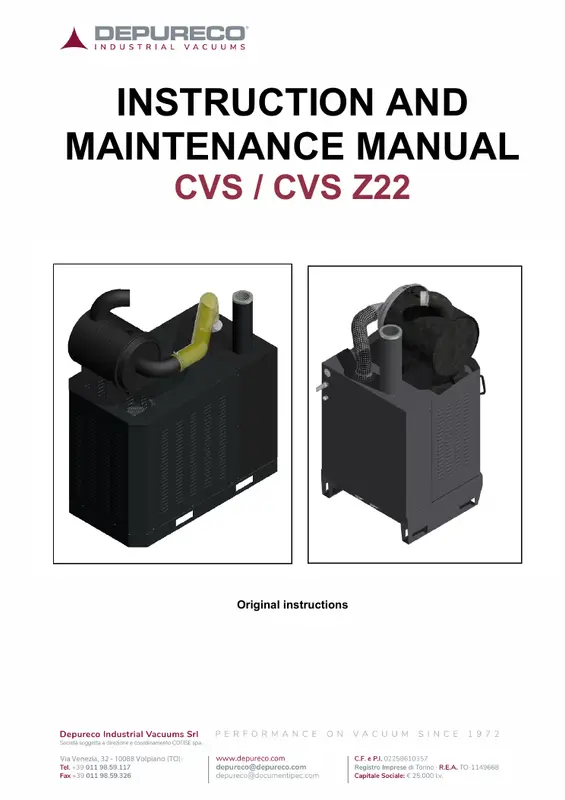

User Manual

Declaration of Conformity

Brochure

Case Studies

Real Depureco installations.

See how our industrial vacuum systems are specified, supplied and commissioned on real industrial sites.

See case studies
Direct from the manufacturer UK-based technical team

Tell us what you need. We'll specify the right machine.

Send us a short description of the job — the material, the volume, the regulations that apply — and we'll come back with a recommended machine and a quote.

Typical response within one working day

Related Products

Similar machines

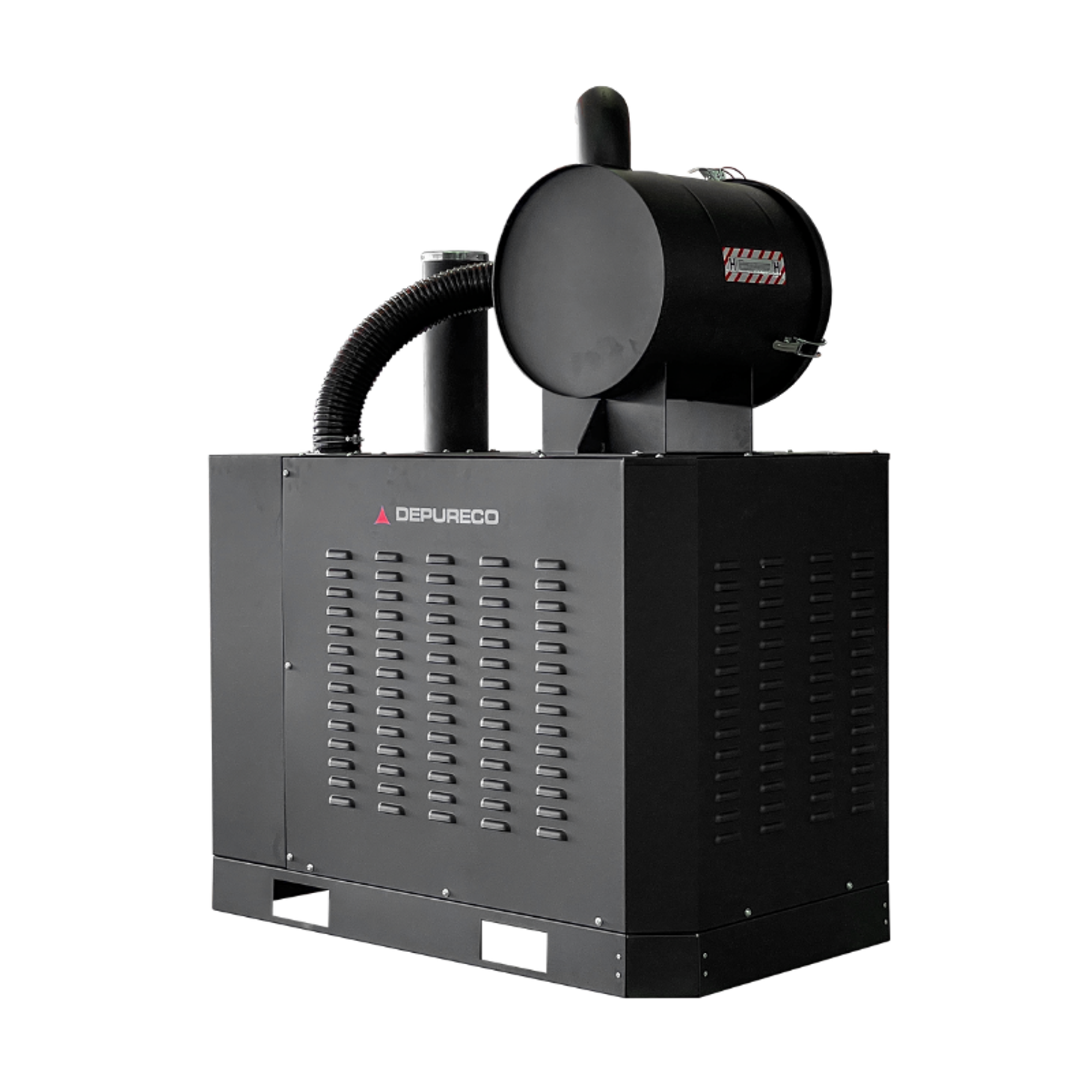

CVS 3D Z22
Centralised Vacuum Systems

CVS 3D Z22

CVS 3D Z22 is the Atex-certified suction unit for centralized systems, ideal for operating in several points of the company at the same time, with different operators, and moving large quantities of m

Motor type Atex side channel blower
Motor power 7.5 kW | 11 kW | 15 kW | 18.5 kW | 22 kW
Max airflow 700 | 920 | 1,350 | 1,985 | 1,180 m³/h
View CVS 3D

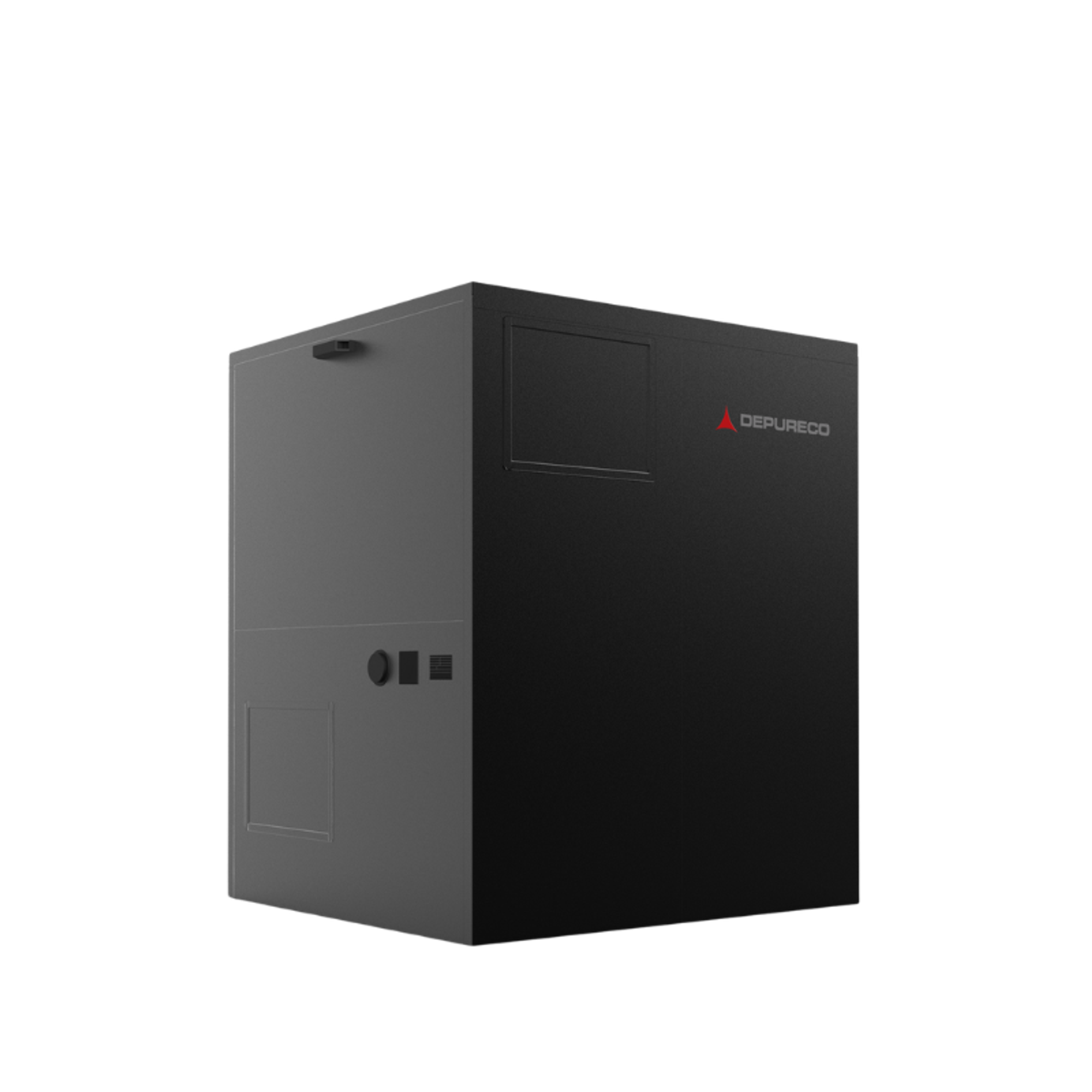

CVS ROOTS
