ECOBULL XM DEX 1/2D

ECOBULL XM DEX 1/2D

Compact, portable ATEX protection for the safe recovery of very fine combustible and conductive dust in dust Zones 21 and 22.

Request a Quote Ask a Question
Motor power 2.2 kW
Container capacity 20 Lt
Max airflow 240 m³/h
ATEX Zone 20 (chamber)ATEX Zone 21ATEX Zone 2210-year guarantee

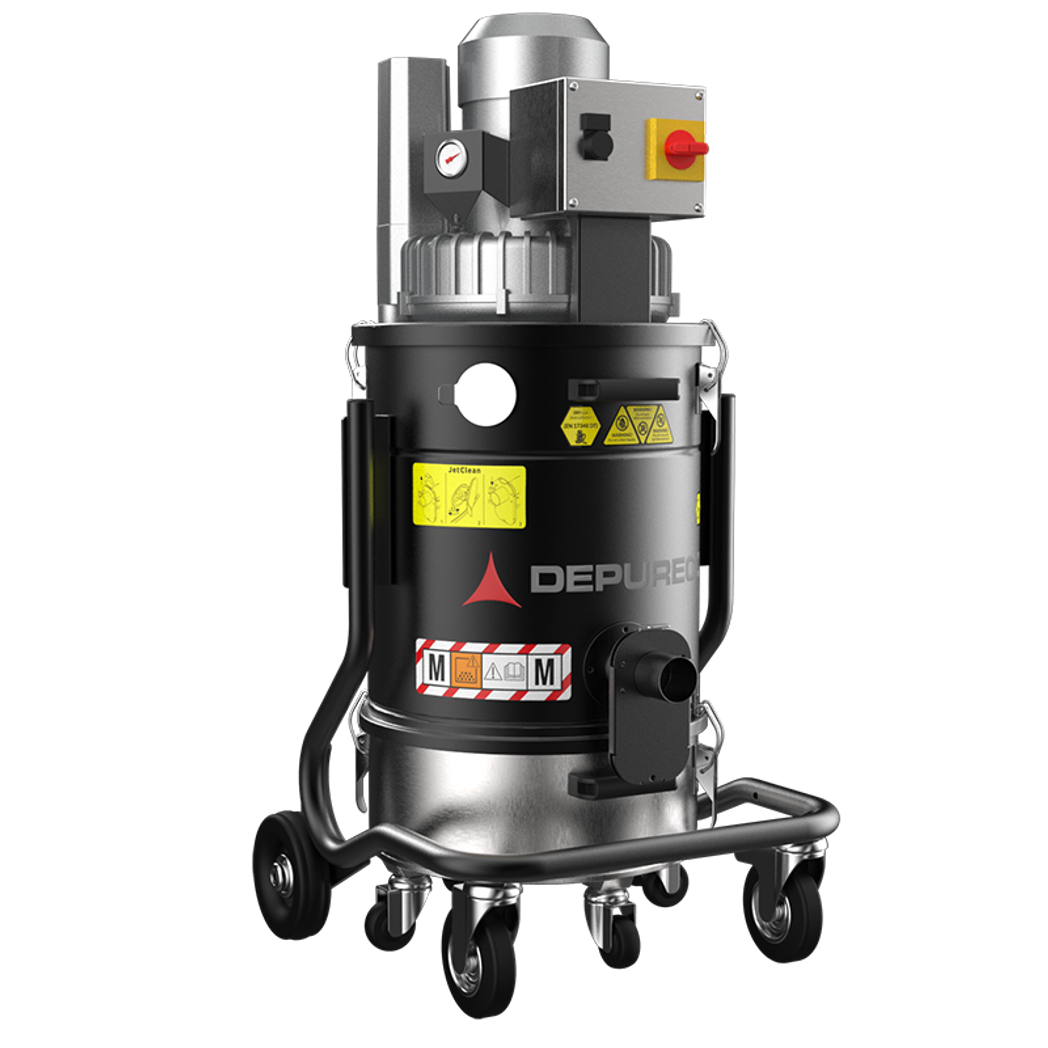

The ECOBULL XM DEX 1/2D is a compact, portable industrial vacuum engineered to recover very fine dust safely inside ATEX explosion-risk areas. It is certified by an external body for the safe vacuuming of conductive and combustible dust, including type IIIC dust, and carries the ATEX marking II 1/2D Ex h IIIC T160 Da/Db — approved for dust Zones 21 and 22, with Category 1D protection treating the internal chamber as Zone 20 for maximum safety.

At its core is a certified side channel turbine rated for 24-hour operation, driving continuous suction without duty-cycle interruptions, with a 2.2 kW motor and a vacuum-limiter valve to protect the turbine under load. A class M cartridge filter in antistatic polyester media captures fine hazardous dust, complete grounding of the unit discharges static across the whole machine, and a Jet Clean filter-cleaning system keeps airflow consistent shift after shift. Recovered material — dry or wet powders, solids, shavings and combustible dust — collects in a 20-litre container.

Italian-engineered by Depureco, the manufacturer, the ECOBULL XM DEX 1/2D is supplied in more than one mains-voltage configuration to match your installation, and is built for the long service life that lowers total cost of ownership on continuous combustible-dust duty. Compact and easy to handle, it brings certified Category 1D internal protection and high filtration efficiency to intensive housekeeping and process-recovery work in classified dust areas.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type Atex 2D side channel blower
Motor power 2.2 kW
Frequency 50/60 Hz
Voltage 230 | 400 V
Power supply Electrical

Machine

Safety valve Vacuum limiter valve
Container capacity 20 Lt
Dimensions 516 × 545 mm
Height 1,050 mm
Weight 57 kg
Suction inlet 50 mm
ATEX marking II 1/2D Ex h IIIC T160 Da/Db
Operating temperature -20/+40 °C

Filter

Primary filter class M
Primary filter type Cartridge
Filter media Antistatic polyester
Primary filter area 16,000 cm²
Filter cleaning system Jet Clean

Performance

Max airflow 240 m³/h
Continuous vacuum 180 mbar
Noise level 72 dB(A)

Key Features

SUCTION UNIT

SUCTION UNIT

The suction unit is a manufacturer-certified Atex side channel blower with direct coupling between motor and impeller. The Side Channel Blower is equipped with a safety valve that ensures continuous work, without any maintenance.

FILTER UNIT

FILTER UNIT

Filtration is ensured by a Class M polyester cartridge filter (filtration efficiency 1 micron) with a high filtering surface area, which guarantees air passage even with a dirty filter.

INTERNAL CERTIFICATION CAT 1D - ZONE 20

INTERNAL CERTIFICATION CAT 1D - ZONE 20

Thanks to its 1D – Zone 20 certified chamber, the vacuum cleaner guarantees maximum safety and compliance when vacuuming combustible or conductive dusts (Group IIIC), even when these are contained within the unit.

COLLECTION UNIT

COLLECTION UNIT

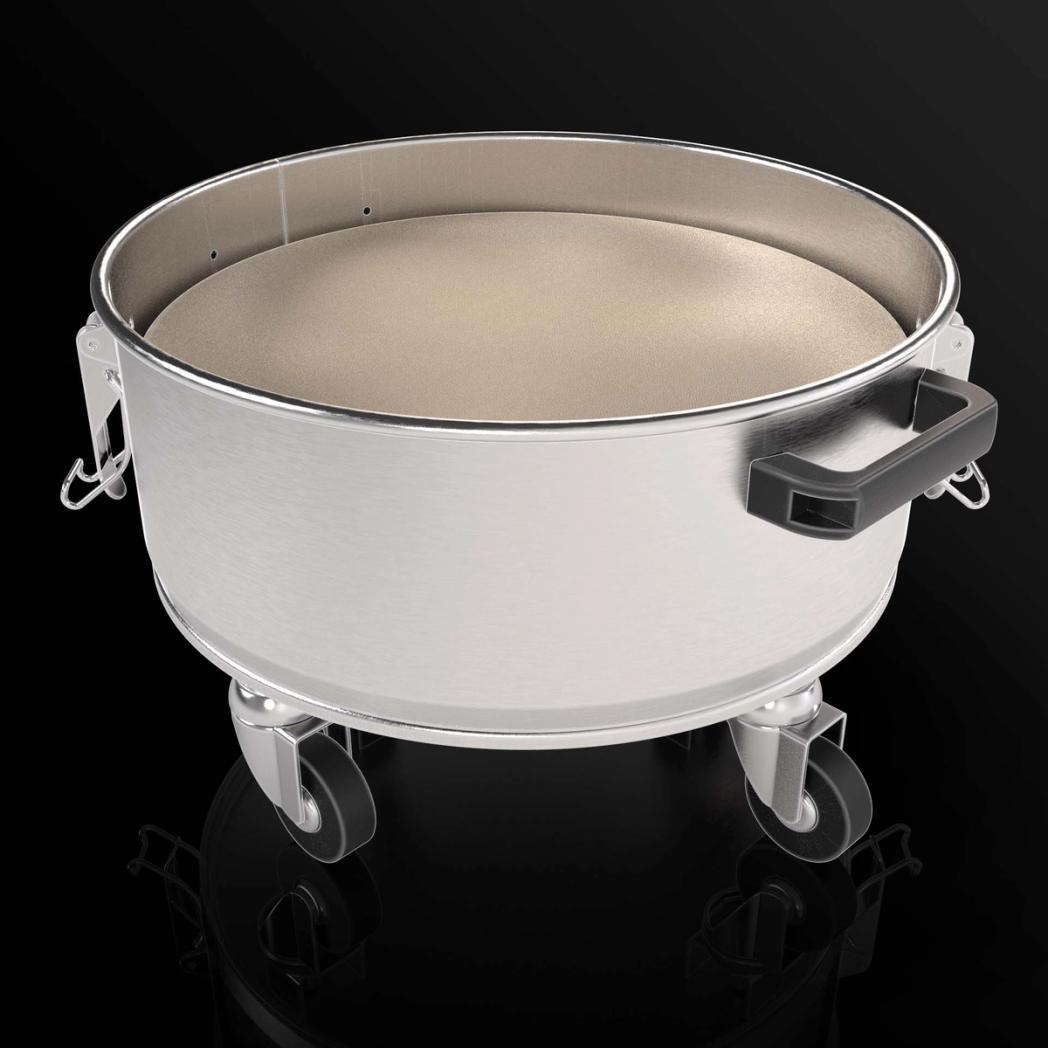

The material is collected inside an AISI 304 stainless steel container, complete with a metal handle that allows its release, to avoid any sparks that could be generated by the electrostatic charge.

Downloads

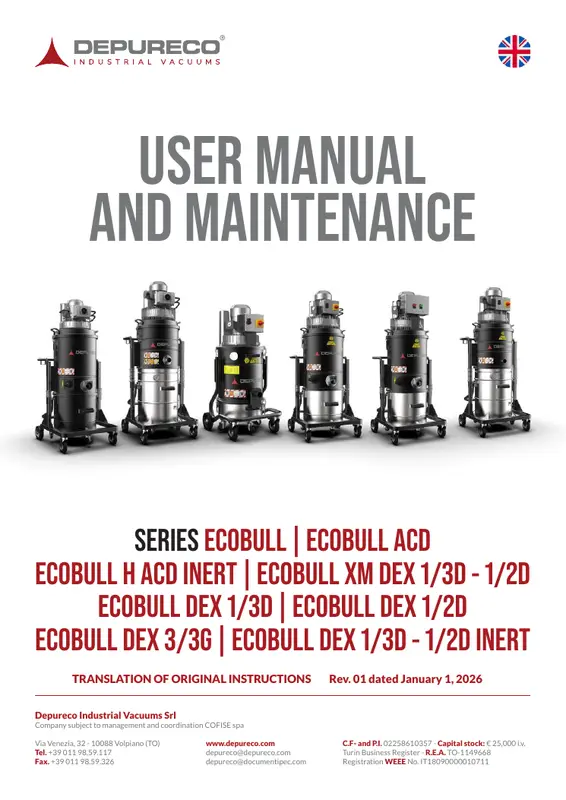

User Manual

Declaration of Conformity

Case Study

ATEX Central Vacuum System for a Flour Mill

How a Depureco ATEX central system controls combustible flour dust across a five-floor mill.

Read case study
