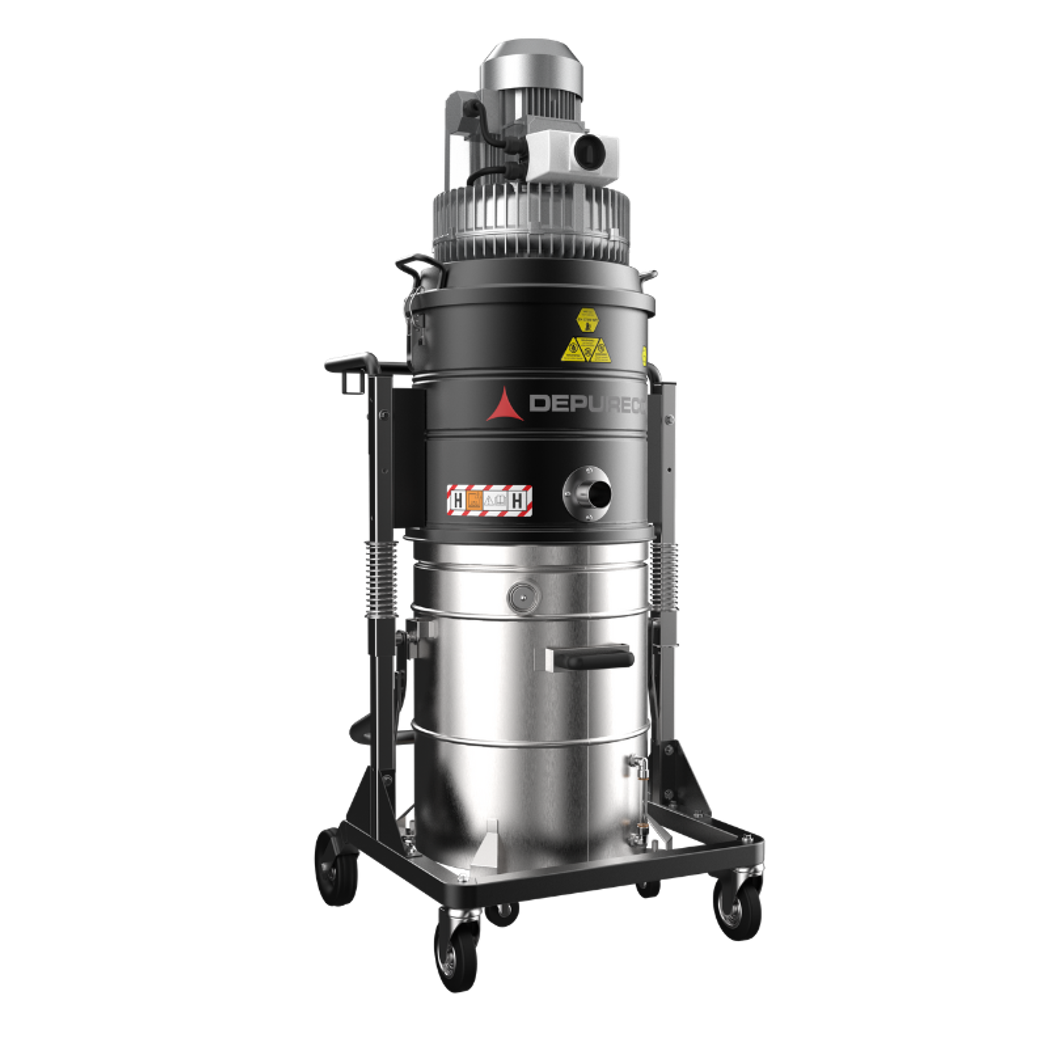

ECOBULL DEX 1/3D INERT

ECOBULL DEX 1/3D INERT

ATEX-certified extraction that neutralises reactive, self-igniting metal dust the moment it enters the machine.

Request a Quote Ask a Question
Motor power 1.8 kW | 3 kW
Container capacity 100 Lt
Max airflow 240 | 340 m³/h
ATEX Zone 20 (chamber)ATEX Zone 2210-year guarantee

The ECOBULL DEX 1/3D INERT is an ATEX-certified industrial vacuum engineered by Depureco for the safe extraction of conductive and self-igniting dust — including the Type IIIC metal dusts that can ignite in ordinary extraction equipment. As the dust is drawn in, an inerting liquid bath immerses and neutralises it on contact, stopping an explosive atmosphere from forming inside the machine.

Certified to the ATEX marking II 1/3D Ex h IIIC T160 Da/Dc, the unit is approved for intensive, continuous work in dust Zone 22, with Category 1D internal protection rated for the Zone 20 atmosphere inside its own collection chamber. A hydrogen vent safety valve, an H13 antistatic polyester cartridge filter and an additional spark-trap filter combine to protect the operator and the wider plant.

Backed by Depureco's Italian engineering heritage since 1972, the ECOBULL DEX 1/3D INERT is driven by an ATEX 3D side-channel blower and offered in 1.8 kW and 3 kW configurations to suit your duty cycle. A patented quick-release coupling lets operators uncouple and refit the container by hand, without tools, making the disposal of reactive dust quick, clean and safe.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type Atex 3D side channel blower
Motor power 1.8 kW | 3 kW
Frequency 50/60 Hz
Voltage 230 | 400 V
Insulation class 55 | F
Power supply Electrical

Machine

Safety valve Hydrogen Vent
Container capacity 100 Lt
Dimensions 660 × 800 mm
Height 1,630 mm
Weight 95 kg
Suction inlet 50 mm
Solid separation system Grated basket
Liquid discharge system Discharge valve
ATEX marking II 1/3D Ex h IIIC T160 Da/Dc
Operating temperature -20/+40 °C

Filter

Primary filter class H13
Primary filter type Cartridge
Filter media Antistatic polyester
Primary filter area 35,000 cm²
Additional filter Spark trap
Liquid separation filter 150μm liquid filter

Performance

Max airflow 240 | 340 m³/h
Continuous vacuum 180 | 230 mbar
Noise level 72 dB(A)

Key Features

SUCTION UNIT

SUCTION UNIT

The suction unit is a manufacturer-certified Atex side channel blower with direct coupling between motor and impeller. The Side Channel Blower is equipped with a safety valve that ensures continuous work, without any maintenance.

INTERNAL CERTIFICATION CAT 1D - ZONE 20

INTERNAL CERTIFICATION CAT 1D - ZONE 20

Thanks to its 1D – Zone 20 certified chamber, the vacuum cleaner guarantees maximum safety and compliance when vacuuming combustible or conductive dusts (Group IIIC), even when these are contained within the unit.

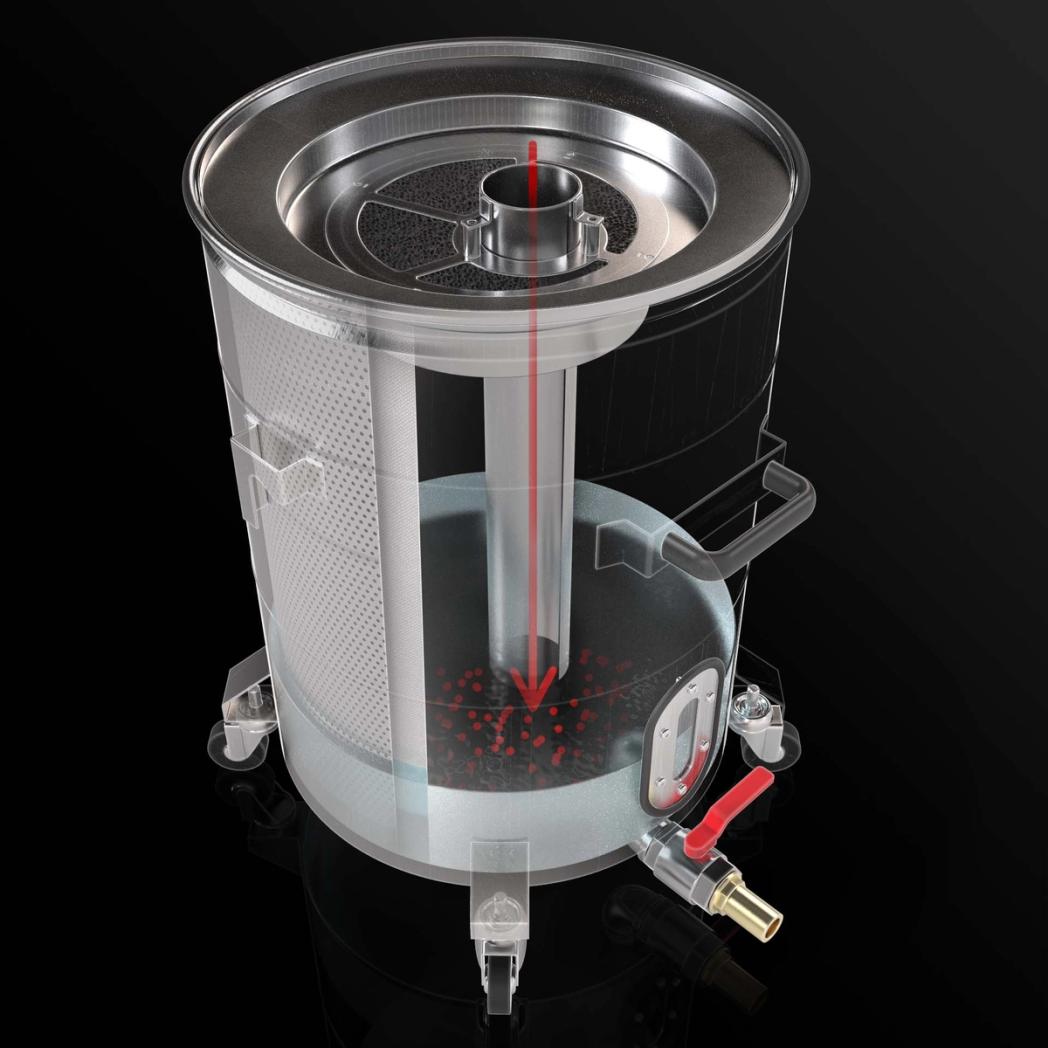

INERTING LIQUID BATH

INERTING LIQUID BATH

Container with conductive dust immersion system. Prevents the formation of explosive atmospheres inside the vacuum cleaner by neutralizing incoming dust.

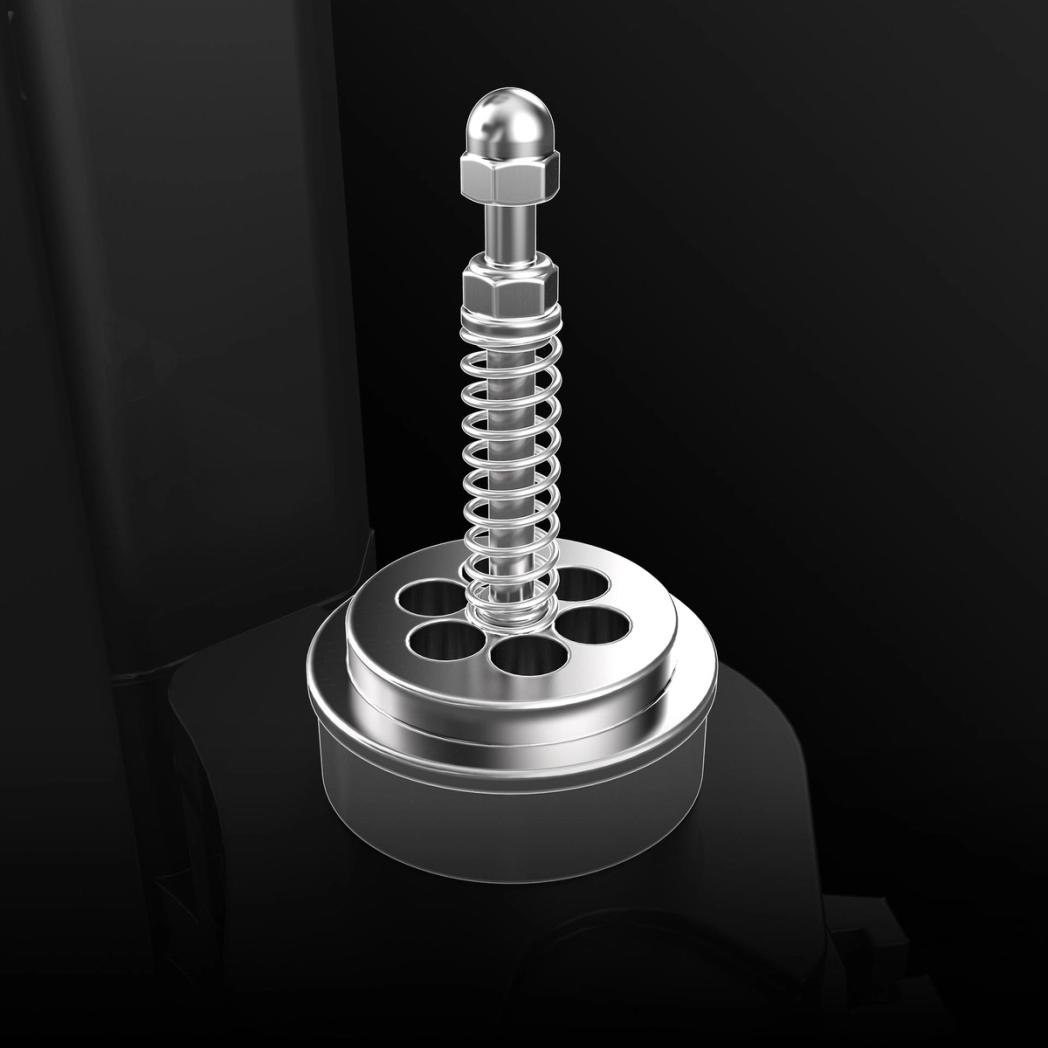

SAFETY VALVE

SAFETY VALVE

Safety valve that in case of reactions between powders and liquids inside the container lets out the released gases preventing explosions.

Downloads

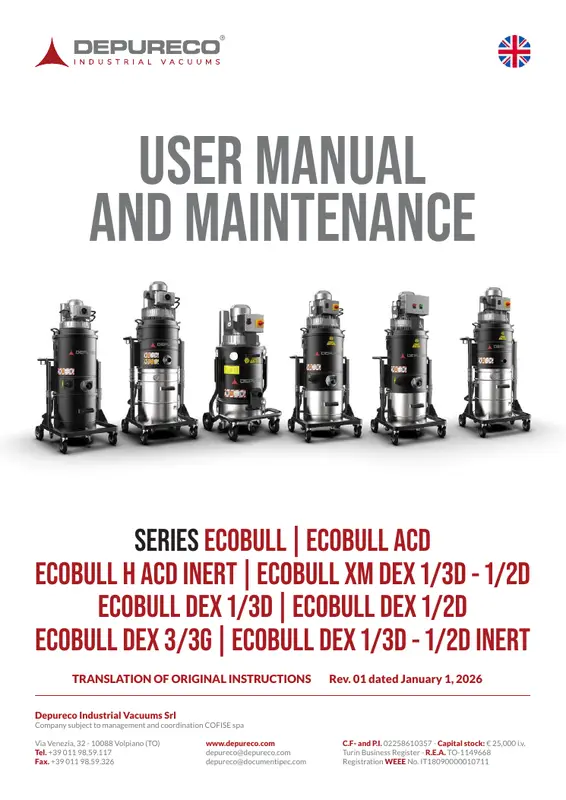

User Manual

Declaration of Conformity

Case Study

ATEX Central Vacuum System for a Flour Mill

How a Depureco ATEX central system controls combustible flour dust across a five-floor mill.

Read case study
