ECOBULL DEX 1/3D

ECOBULL DEX 1/3D

An ATEX-certified industrial vacuum built for continuous, heavy-duty extraction of combustible and conductive dust in Zone 22 areas.

Request a Quote Ask a Question
Motor power 1.8 kW | 3 kW | 4 kW
Container capacity 65 Lt
Max airflow 240 | 340 | 350 m³/h
ATEX Zone 20 (chamber)ATEX Zone 2210-year guarantee

The ECOBULL DEX 1/3D is an ATEX-certified industrial vacuum engineered for the toughest dust-extraction duties. It is certified for intensive work in ATEX Zone 22 dust areas and is designed to capture combustible, conductive and fine dust, including type IIIC, safely, even in heavy-duty and continuous applications.

Safety is built into every part of the machine. A side channel blower certified ATEX in category 3D drives the suction, while a category 1D certified internal chamber, rated to Zone 20, contains combustible and conductive dust even inside the unit. Complete grounding of the whole unit discharges the static that dust in motion generates, and a vacuum relief valve keeps the blower working continuously without interruption.

Filtration is handled by a class M primary filter, an antistatic polyester star filter with a large filtering surface that is cleaned manually, for high efficiency on fine dust. The DEX 1/3D is supplied in more than one configuration, with motor power of 1.8 kW, 3 kW or 4 kW, so the machine can be matched to the demands of the application. Built for intensive, continuous service, it is designed to keep working shift after shift, which is where its value shows over the working life of the machine.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type Atex 3D side channel blower
Motor power 1.8 kW | 3 kW | 4 kW
Frequency 50/60 Hz
Voltage 230 | 400 V
Insulation class 55 | F
Power supply Electrical

Machine

Safety valve Vacuum limiter valve
Container capacity 65 Lt
Dimensions 660 × 800 mm
Height 1,630 mm
Weight 95 kg
Suction inlet 70 mm
ATEX marking II 1/3D Ex h IIIC T160 Da/Dc
Operating temperature -20/+40 °C

Filter

Primary filter class M
Primary filter type Star
Filter media Antistatic polyester
Primary filter area 24,000 cm²
Filter cleaning system Manual

Performance

Max airflow 240 | 340 | 350 m³/h
Continuous vacuum 180 | 230 | 270 mbar
Noise level 74 | 72 dB(A)

Key Features

SUCTION UNIT

SUCTION UNIT

The suction unit is a manufacturer-certified Atex side channel blower with direct coupling between motor and impeller. The Side Channel Blower is equipped with a safety valve that ensures continuous work, without any maintenance.

FILTER UNIT

FILTER UNIT

The material is diverted by a deflector protecting the main filter. Filtration is ensured by a class M polyester star filter (filtration efficiency 1 micron) with high filtering surface area, which guarantees air passage even with the dirty filter.

INTERNAL CERTIFICATION CAT 1D - ZONE 20

INTERNAL CERTIFICATION CAT 1D - ZONE 20

Thanks to its 1D – Zone 20 certified chamber, the vacuum cleaner guarantees maximum safety and compliance when vacuuming combustible or conductive dusts (Group IIIC), even when these are contained within the unit.

COLLECTION UNIT

COLLECTION UNIT

The material is collected inside an AISI 304 stainless steel container, complete with a metal handle that allows its release, to avoid any sparks that could be generated by the electrostatic charge.

Downloads

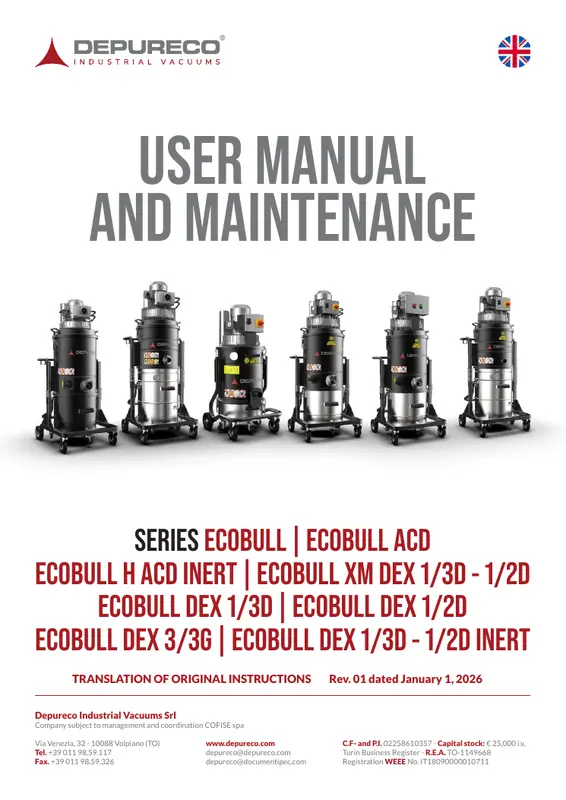

User Manual

Declaration of Conformity

Case Study

ATEX Central Vacuum System for a Flour Mill

How a Depureco ATEX central system controls combustible flour dust across a five-floor mill.

Read case study
