Depureco UK
DF 40 SP

DF 40 SP

High-flow industrial dust collection with automatic, counter-current filter cleaning for fine suspended dust.

Request a Quote Ask a Question
Motor power 4 kW
Container capacity 65 Lt
Max airflow 1,500 | 2,100 | 2,700 m³/h
10-year guarantee

The DF 40 SP is a powerful industrial dust collector built around a three-phase, 4 kW electric fan, engineered to move very high volumes of air and draw large quantities of fine, suspended dust out of the workspace or straight off your production machinery. Its sturdy painted steel construction is made to stand up to permanent installation in demanding industrial settings.

At its core is an integrated automatic filter-cleaning system. As the machine runs, a counter-current of air pulses the four antistatic polyester cartridges clear, so airflow and suction stay high instead of tailing off as dust loads the filters. Rated to M-class filtration, it holds fine suspended powders reliably while cutting the manual filter maintenance that drives up running costs over a machine's life.

The DF 40 SP can be supplied with a suction arm installed for operator-guided extraction, or set up for direct connection to your production machinery for fixed, in-line capture. It is available in three fan configurations, so airflow can be matched to your process, and is CE-marked for use in ordinary, non-hazardous areas.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type Electric Fan
Motor power 4 kW
Frequency 50/60 Hz
Voltage 400 V
Insulation class 55 | F
Power supply Electrical

Machine

Container capacity 65 Lt
Dimensions 630 × 1,100 mm
Height 2,500 mm
Weight 145 kg
Suction inlet 150 | 180 | 200 mm

Filter

Primary filter class M
Primary filter type 4x Cartridges
Filter media Antistatic polyester
Primary filter area 120,000 cm²
Filter cleaning system Automatic SP

Performance

Max airflow 1,500 | 2,100 | 2,700 m³/h
Max vacuum 370 | 340 | 270 mmH₂O
Static depression 300 | 270 | 200 mmH₂O
Noise level 73 dB(A)

Key Features

SUCTION UNIT

SUCTION UNIT

The suction is generated by a specially designed electric fan to ensure the best air flow rate while maintaining a good level of water lift.

FILTER UNIT

FILTER UNIT

Filtration is ensured by polyester cartridge filters in class M (filtration efficiency 1 micron) with high filtering surface area, which guarantees the passage of air even with dirty filter.

SP FILTER CLEANING SYSTEM

SP FILTER CLEANING SYSTEM

Automatic filter cleaning system in reverse flow of air at 6 bar (compressed air not supplied as standard). Each filter is cleaned at regular, alternately adjustable intervals without interrupting suction. Ideal for fine and difficult dust.

COLLECTION UNIT

COLLECTION UNIT

The material is collected inside a coated container complete with a handle that allows its release. Thanks to the 4 sturdy pivoting wheels, the container can be moved with ease, and the collected material can then be disposed of.

Downloads

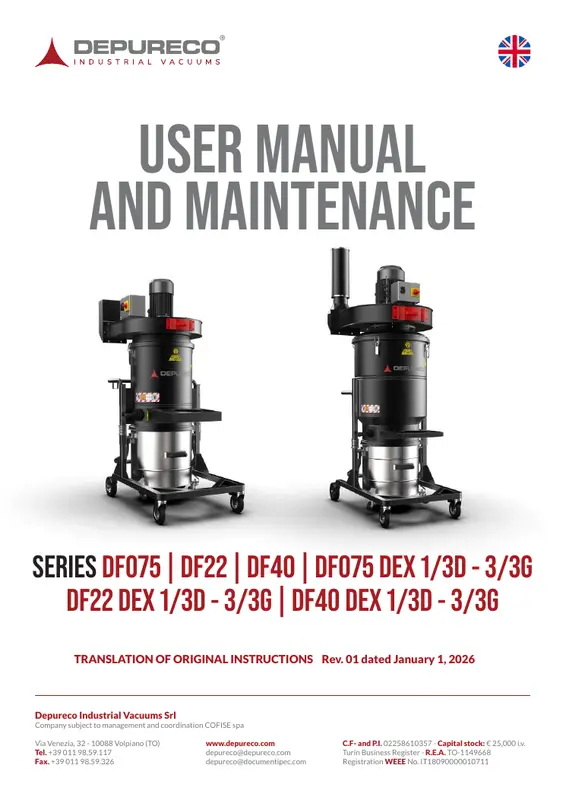

User Manual

Declaration of Conformity

Brochure

Case Studies

Real Depureco installations.

See how our industrial vacuum systems are specified, supplied and commissioned on real industrial sites.

See case studies
Direct from the manufacturer UK-based technical team

Tell us what you need. We'll specify the right machine.

Send us a short description of the job — the material, the volume, the regulations that apply — and we'll come back with a recommended machine and a quote.

Typical response within one working day
