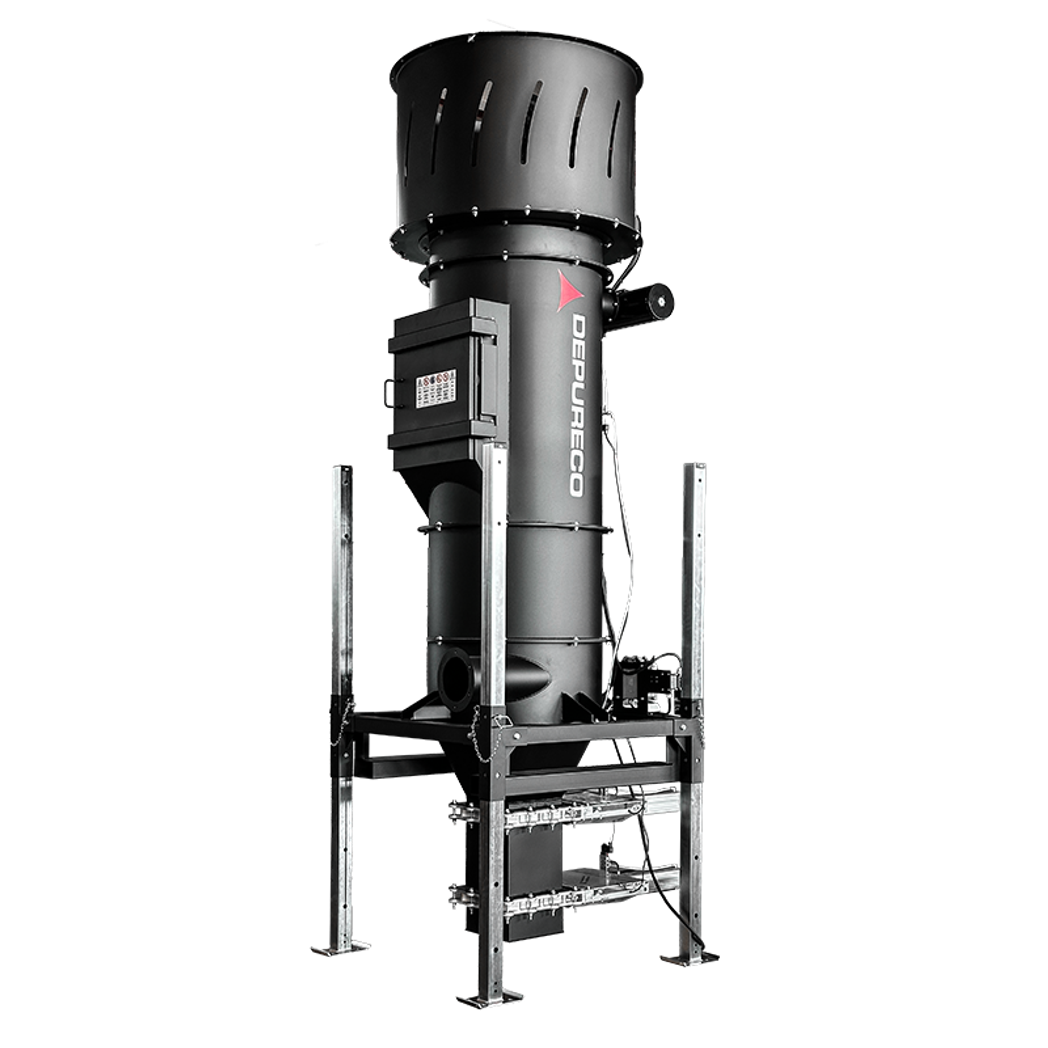

AF

AF

Very high airflow for fine-dust extraction, with automatic filter cleaning and big-bag discharge built in.

Request a Quote Ask a Question
Motor power 4 kW | 5.5 kW | 7.5 kW
Max airflow 2,200 | 2,700 | 3,900 m³/h
10-year guarantee

The AF is an industrial dust collector built around a fan with a very high air flow rate, engineered to capture volatile and suspended fine powders across a busy production line. Its strength is filtration capacity: an M-class cartridge pack holds fine dust reliably while the fan keeps extraction volumes high, so the unit clears airborne dust at the source rather than letting it settle across the floor.

The AF is offered in several configurations. Motor power is specified at 4 kW, 5.5 kW or 7.5 kW, so the fan can be matched to the extraction duty rather than over- or under-sized. Four antistatic polyester cartridges carry the primary M-class filtration, and an integrated automatic cleaning system pulses them clear during operation, holding airflow and efficiency steady without pausing the process. A side window gives quick, easy access for filter checks and changes.

Discharge is configurable too: continuous or intermittent systems can be fitted for collection into big-bags or for localised discharge of the extracted material, so the AF drops into an existing materials-handling setup rather than dictating one. The unit is CE-marked and runs on an electrical supply; it is not ATEX zone-certified and is intended for ordinary industrial areas. Automatic filter cleaning and easy maintenance access are designed to limit downtime, which keeps servicing time and running costs down.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type Electric Fan
Motor power 4 kW | 5.5 kW | 7.5 kW
Frequency 50/60 Hz
Voltage 400 V
Power supply Electrical

Machine

Dimensions 1,402 × 1,130 mm
Height 4,279 mm
Compact height 2,580 mm
Weight 409 | 432 | 455 kg
Suction inlet 200 mm

Filter

Primary filter class M
Primary filter type 4x Cartridges
Filter media Antistatic polyester
Primary filter area 340,000 cm²
Filter cleaning system Automatic SP

Performance

Max airflow 2,200 | 2,700 | 3,900 m³/h
Max vacuum 340 | 517 | 575 mmH₂O
Static depression 270 | 480 | 539 mmH₂O
Noise level 73 | 75 | 74 dB(A)

Key Features

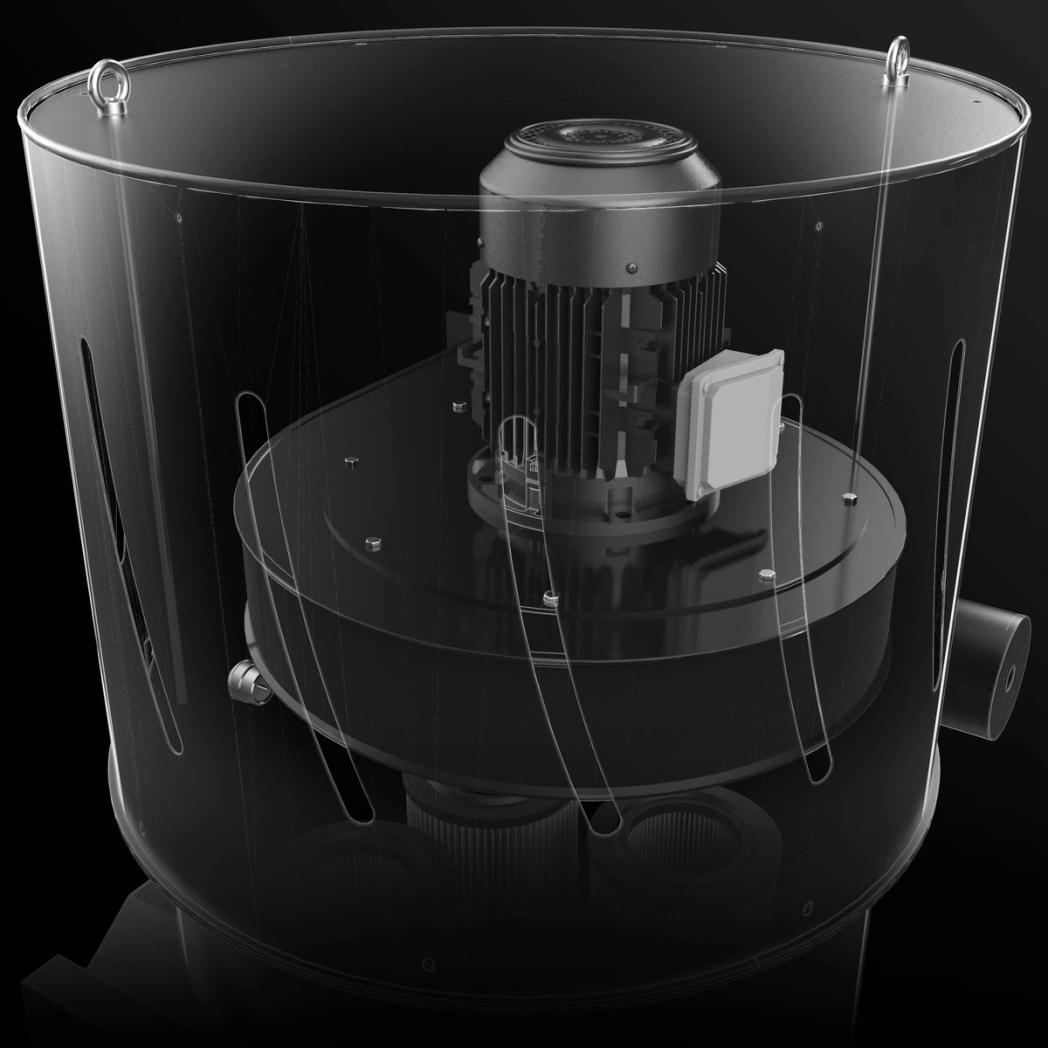

SUCTION UNIT

SUCTION UNIT

Suction is generated by an electric fan specially designed to ensure the best air flow rate while maintaining a good vacuum level.

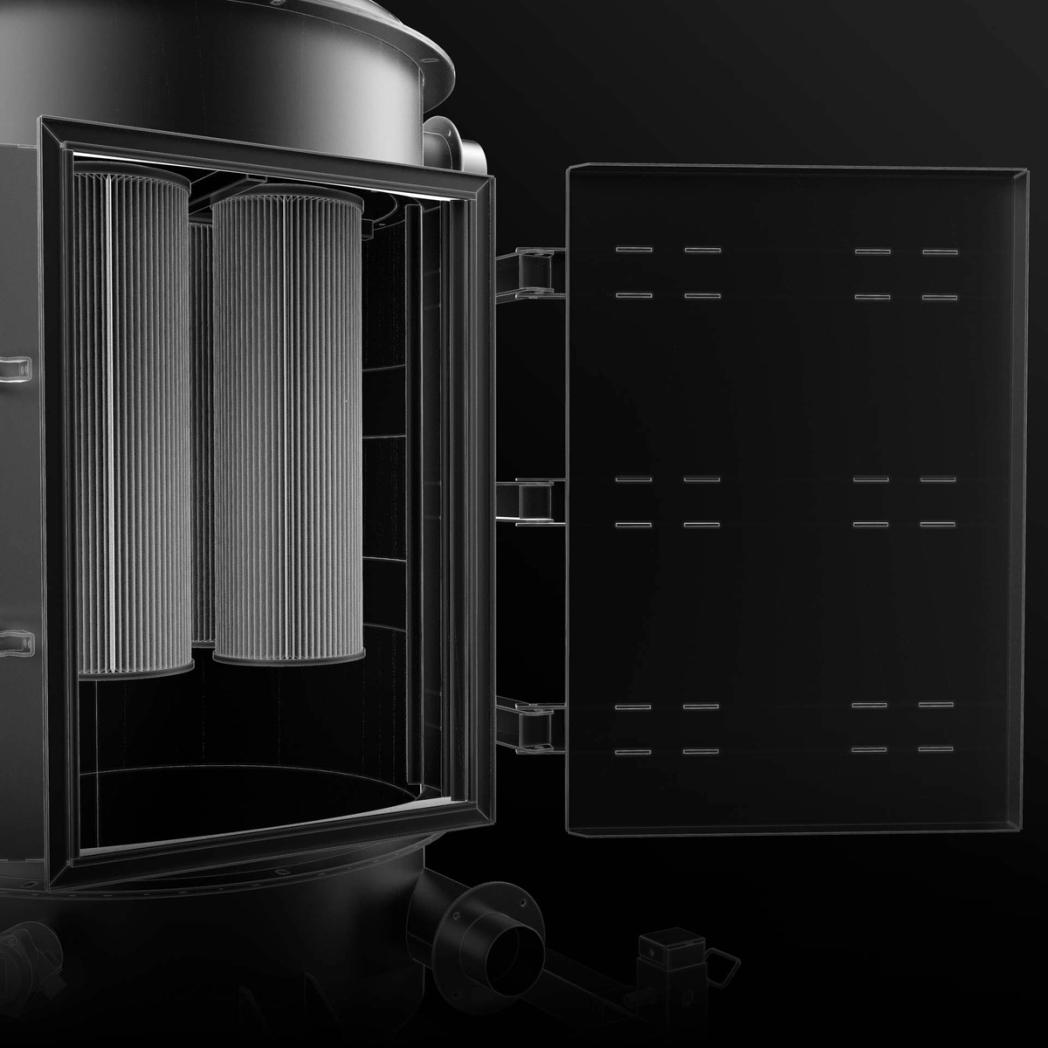

FILTER UNIT

FILTER UNIT

High-efficiency Class M cartridges ensure maximum dust filtration. A practical hatch facilitates maintenance and replacement operations and avoids the need to remove the cover above, making maintenance operations easier.

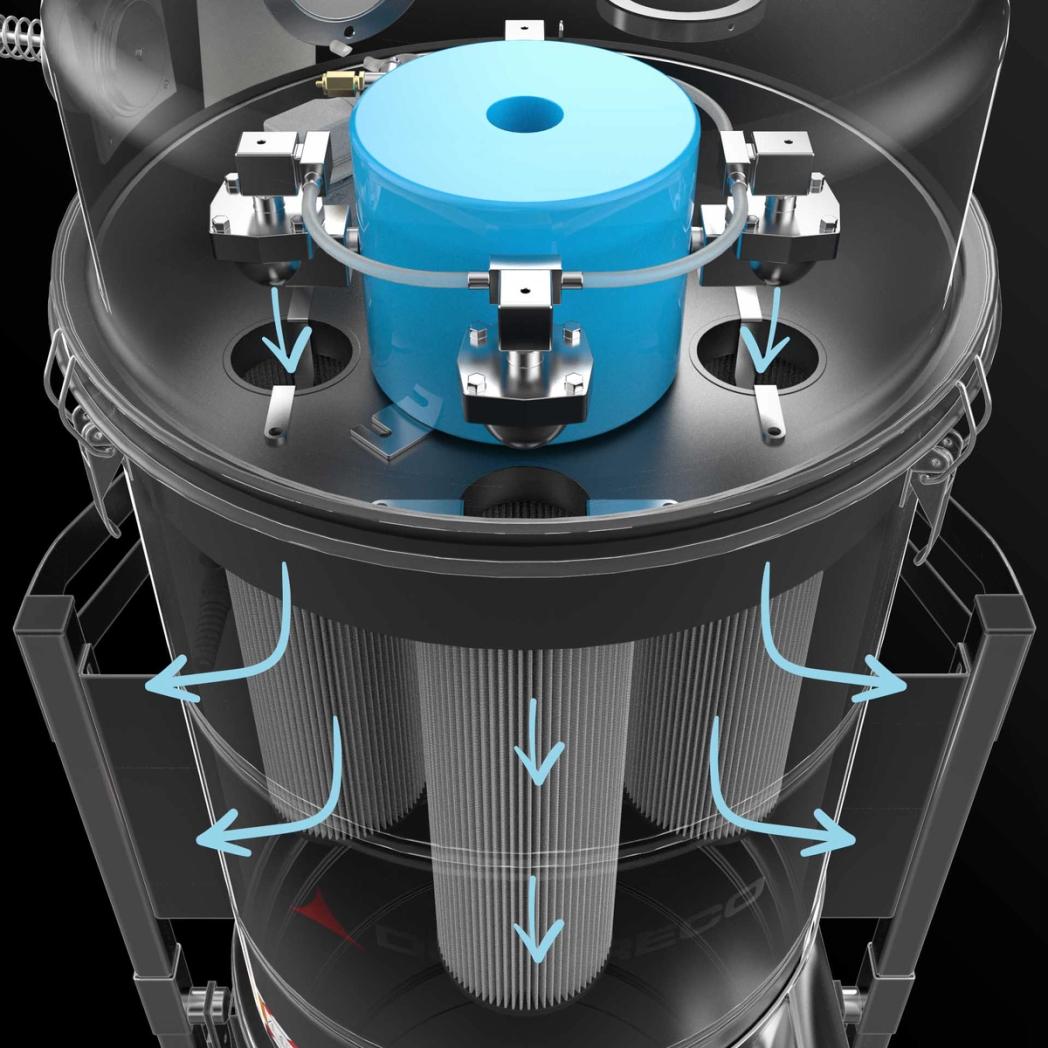

SP FILTER CLEANING SYSTEM

SP FILTER CLEANING SYSTEM

Automatic filter cleaning system in reverse flow of air at 6 bar (compressed air not supplied as standard). Each filter is cleaned at regular, alternately adjustable intervals without interrupting suction. Ideal for fine and difficult dust.

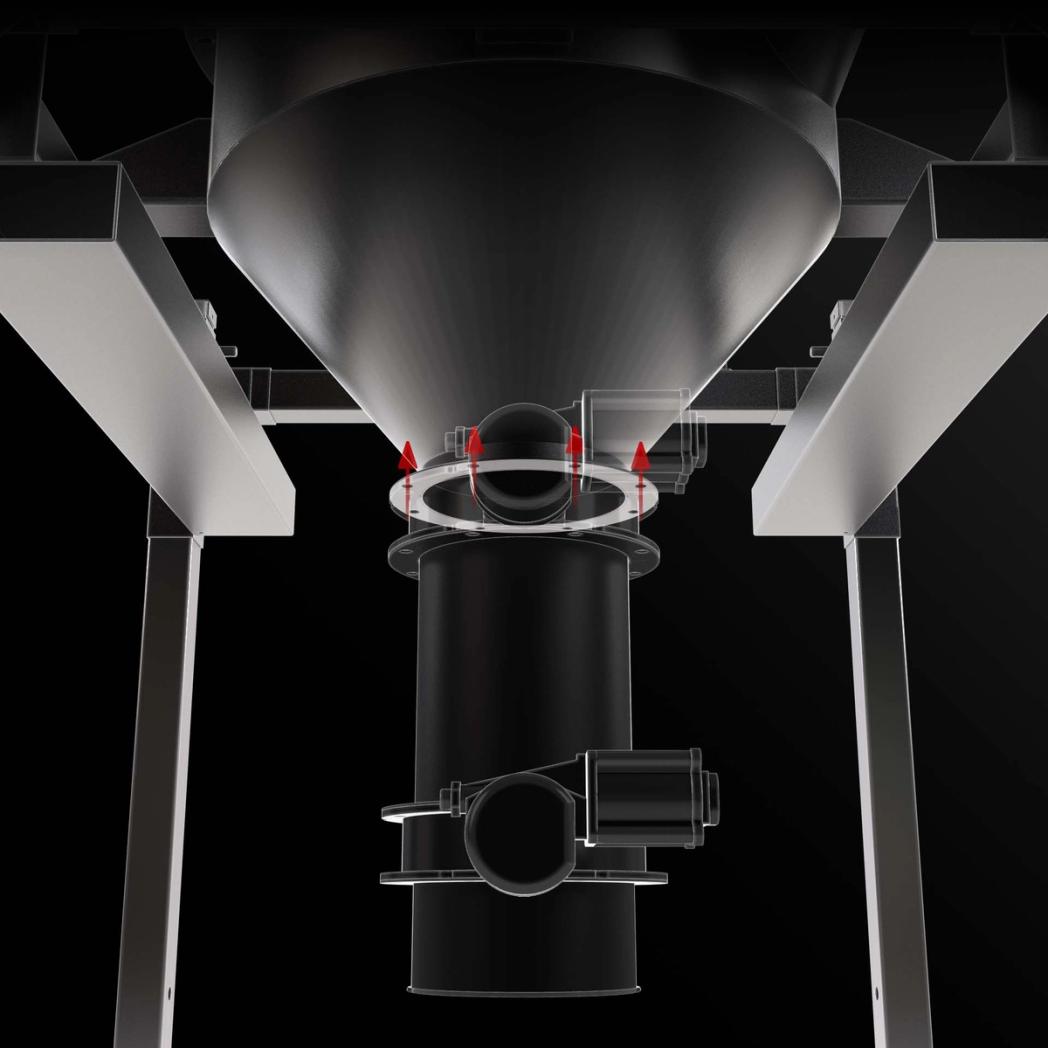

CUSTOM EXHAUST SYSTEM

CUSTOM EXHAUST SYSTEM

A specific discharge system, intermittent or continuous, can be installed depending on operational needs.

Downloads

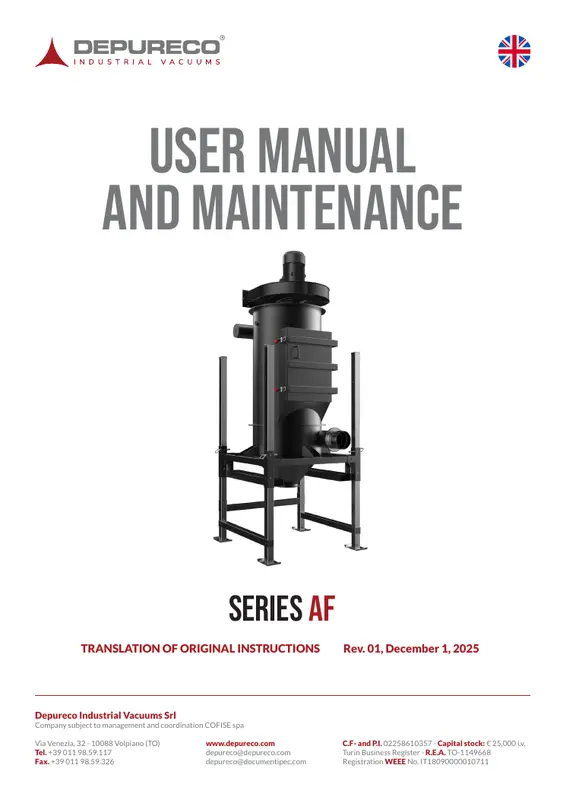

User Manual

Declaration of Conformity

Brochure

Case Studies

Real Depureco installations.

See how our industrial vacuum systems are specified, supplied and commissioned on real industrial sites.

See case studies
Direct from the manufacturer UK-based technical team

Tell us what you need. We'll specify the right machine.

Send us a short description of the job — the material, the volume, the regulations that apply — and we'll come back with a recommended machine and a quote.

Typical response within one working day

Related Products

Similar machines

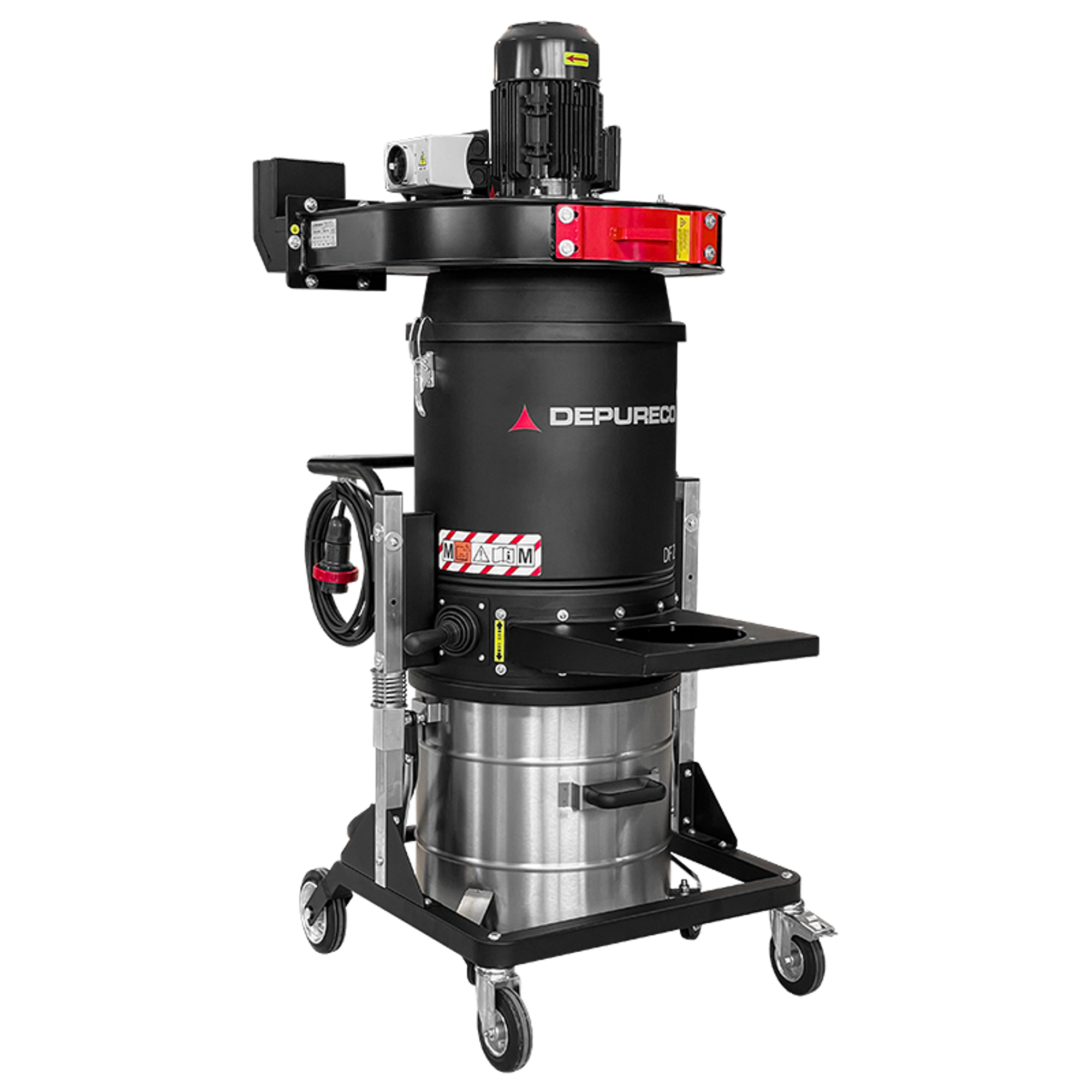

DF 075 – 22 DEX 1/3D
Dust Collectors

DF 075 – 22 DEX 1/3D

An ATEX-certified industrial dust collector for extracting conductive and combustible volatile dusts, including type IIIC, in Zone 22 atmospheres. Driven by an ATEX-certified three-phase fan, with a Category 1D internal chamber certified for Zone 20.

Motor type Atex 3D fan
Motor power 0.75 kW | 2.2 kW
Max airflow 300 | 600 | 800 | 1,000 | 1,400 m³/h
View DF 075 – 22 DEX 1/3D
DF 075 – 22 DEX 3/3G
Dust Collectors

DF 075 – 22 DEX 3/3G

The DF 075 – 22 DEX 3/3G is a wheeled, ATEX Zone 2 certified industrial dust collector with an ATEX-certified three-phase fan, built to extract combustible and volatile dusts safely at high airflow.

Motor type Atex 3G fan
Motor power 0.75 kW | 2.2 kW
Max airflow 300 | 600 | 800 | 1,000 | 1,400 m³/h
View DF 075 – 22 DEX 3/3G

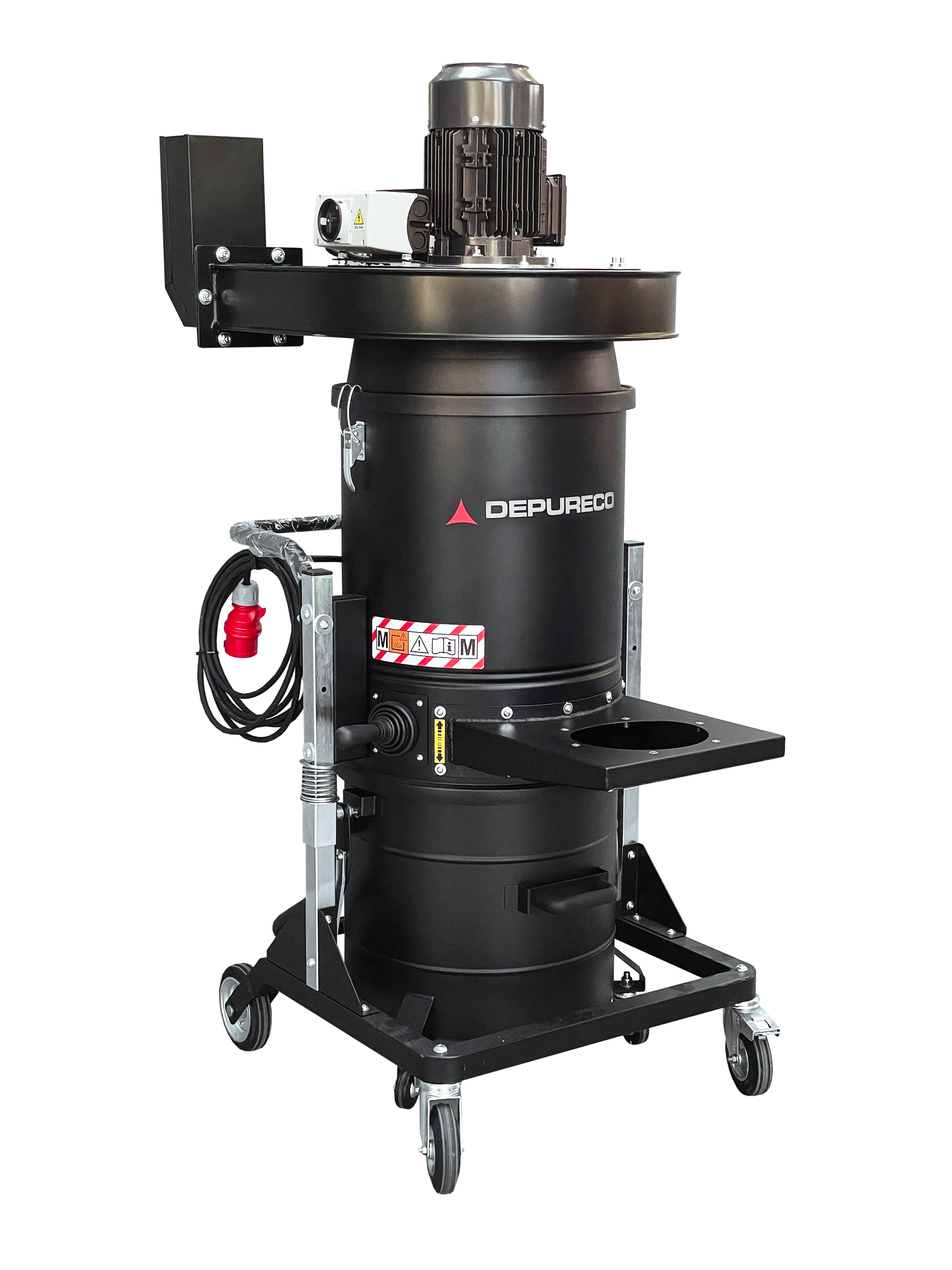

DF 075 – 22 SP
Dust Collectors

DF 075 – 22 SP

A compact three-phase industrial dust collector with a built-in SP automatic filter-cleaning system, engineered by Depureco to pull fine, volatile and suspended powders out of the working air. Supplied with a suction arm fitted, or prepared for direct connection to your production machinery.

Motor type Electric Fan
Motor power 0.75 kW | 2.2 kW
Max airflow 300 | 600 | 800 | 1,000 | 1,400 m³/h
View DF 075 – 22 SP
DF 075 – DF 22
Dust Collectors

DF 075 – DF 22

The most compact industrial dust collector in the Depureco range, using a three-phase fan to draw high air flow for capturing fine, suspended dust. Supplied with a suction arm or prepared to connect straight to your production machinery.

Motor type Electric Fan
Motor power 0.75 kW | 2.2 kW
Max airflow 300 | 600 | 800 | 1,000 | 1,400 m³/h
View DF 075 – DF 22

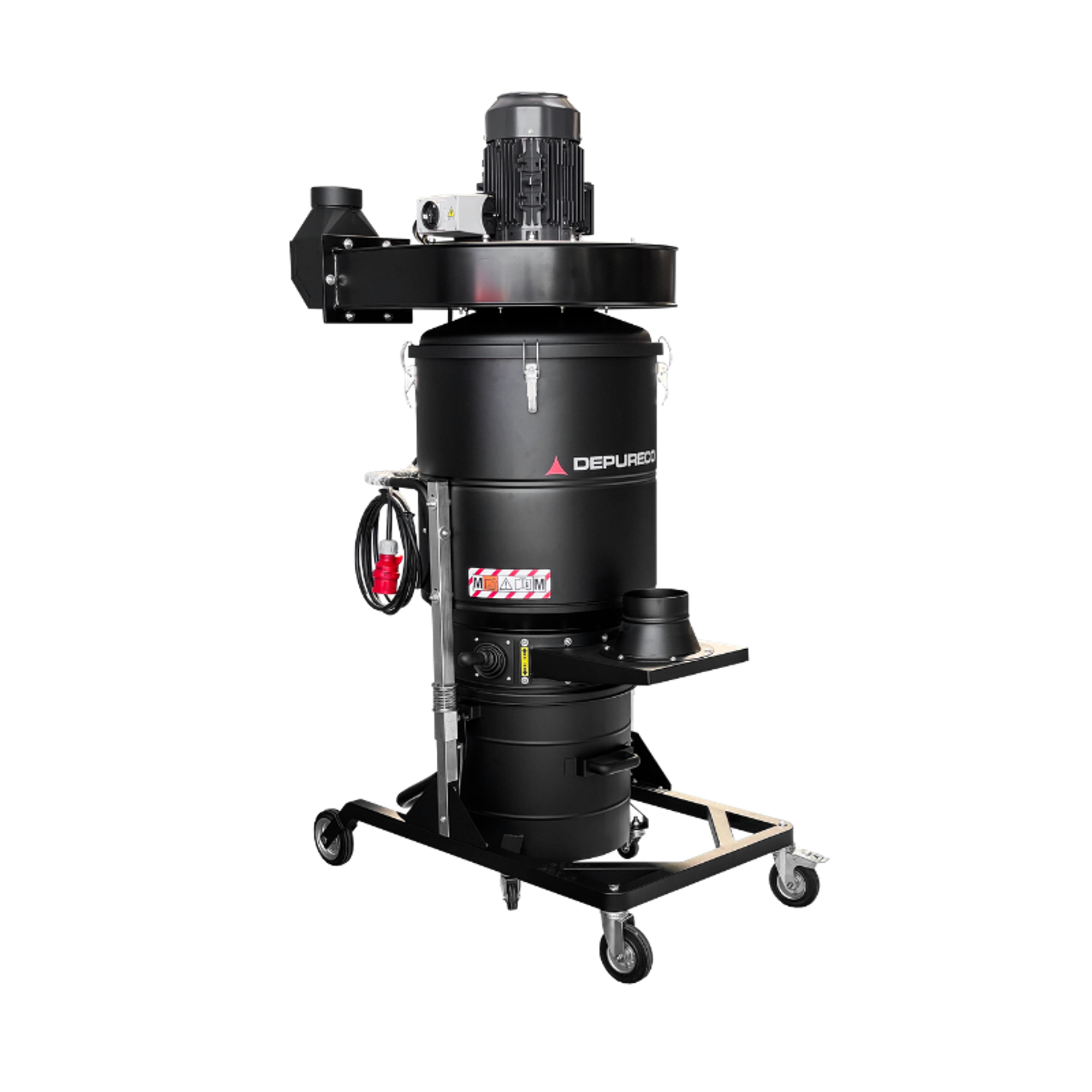

DF 40
