Depureco UK
DF 40

DF 40

A high-air-flow industrial dust collector that pulls fine, suspended and volatile powders straight off your production line.

Request a Quote Ask a Question
Motor power 4 kW
Container capacity 65 Lt
Max airflow 1,500 | 2,100 | 2,700 m³/h
10-year guarantee

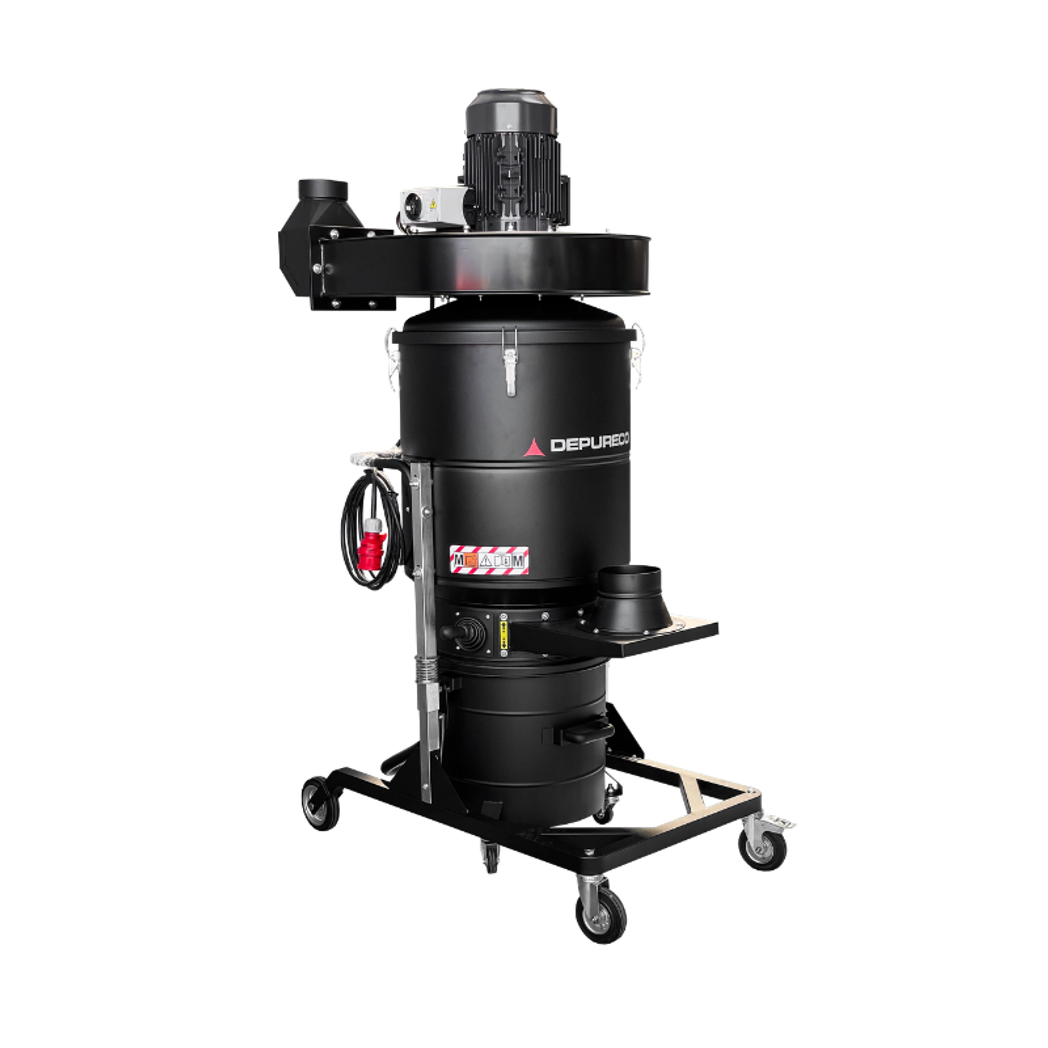

The DF 40 is an industrial dust collector engineered for very high air flow. Its 4 kW three-phase fan generates the suction needed to capture fine, suspended and volatile powders as they are released, keeping them out of the air your operators breathe and off the surfaces around your machines.

High filtration capacity sits at the heart of the unit: a class M primary filter with polyester media traps fine dust efficiently, and a manual cleaning system keeps it working between service intervals. The whole collector is built in sturdy painted steel, so it stands up to continuous industrial duty. It is offered in three configurations, each tuned to a different balance of air flow and vacuum, so the DF 40 can be matched to the demands of your process rather than forced to fit.

Depureco supplies the DF 40 with a suction arm already installed for capture at the source, or configured for direct connection to production machinery where extraction is built into the line. As the manufacturer, we stand behind every CE-marked unit and the long-run value of a collector engineered to be maintained and kept in service rather than replaced.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type Electric Fan
Motor power 4 kW
Frequency 50/60 Hz
Voltage 400 V
Insulation class 55 | F
Power supply Electrical

Machine

Container capacity 65 Lt
Dimensions 630 × 1,100 mm
Height 2,150 mm
Weight 145 kg
Suction inlet 150 | 180 | 200 mm

Filter

Primary filter class M
Primary filter type Star
Filter media Polyester
Primary filter area 45,000 cm²
Filter cleaning system Manual

Performance

Max airflow 1,500 | 2,100 | 2,700 m³/h
Max vacuum 370 | 340 | 270 mmH₂O
Static depression 300 | 270 | 200 mmH₂O
Noise level 73 dB(A)

Key Features

SUCTION UNIT

SUCTION UNIT

The suction is generated by a specially designed electric fan to ensure the best air flow rate while maintaining a good level of water lift.

FILTER UNIT

FILTER UNIT

The material is diverted by a deflector protecting the main filter. Filtration is ensured by a class M polyester star filter (filtration efficiency 1 micron) with high filtering surface area, which guarantees air passage even with the dirty filter.

FILTER CLEANING SYSTEM

FILTER CLEANING SYSTEM

An ergonomic manual filter shaker allows the filter to be cleaned easily and quickly, removing dust and debris from the surface of the filter.

COLLECTION UNIT

COLLECTION UNIT

The material is collected inside a coated container complete with a handle that allows its release. Thanks to the 4 sturdy pivoting wheels, the container can be moved with ease, and the collected material can then be disposed of.

Downloads

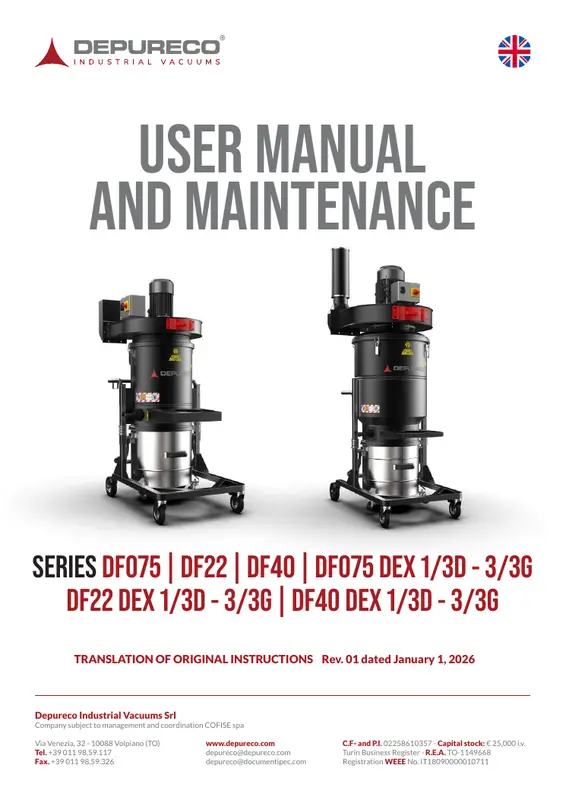

User Manual

Declaration of Conformity

Brochure

Case Studies

Real Depureco installations.

See how our industrial vacuum systems are specified, supplied and commissioned on real industrial sites.

See case studies
Direct from the manufacturer UK-based technical team

Tell us what you need. We'll specify the right machine.

Send us a short description of the job — the material, the volume, the regulations that apply — and we'll come back with a recommended machine and a quote.

Typical response within one working day
