SUCTION UNIT
Suction is generated by an Atex-certified electric fan specially designed to ensure the best air flow rate while maintaining a good vacuum level.
See it in action

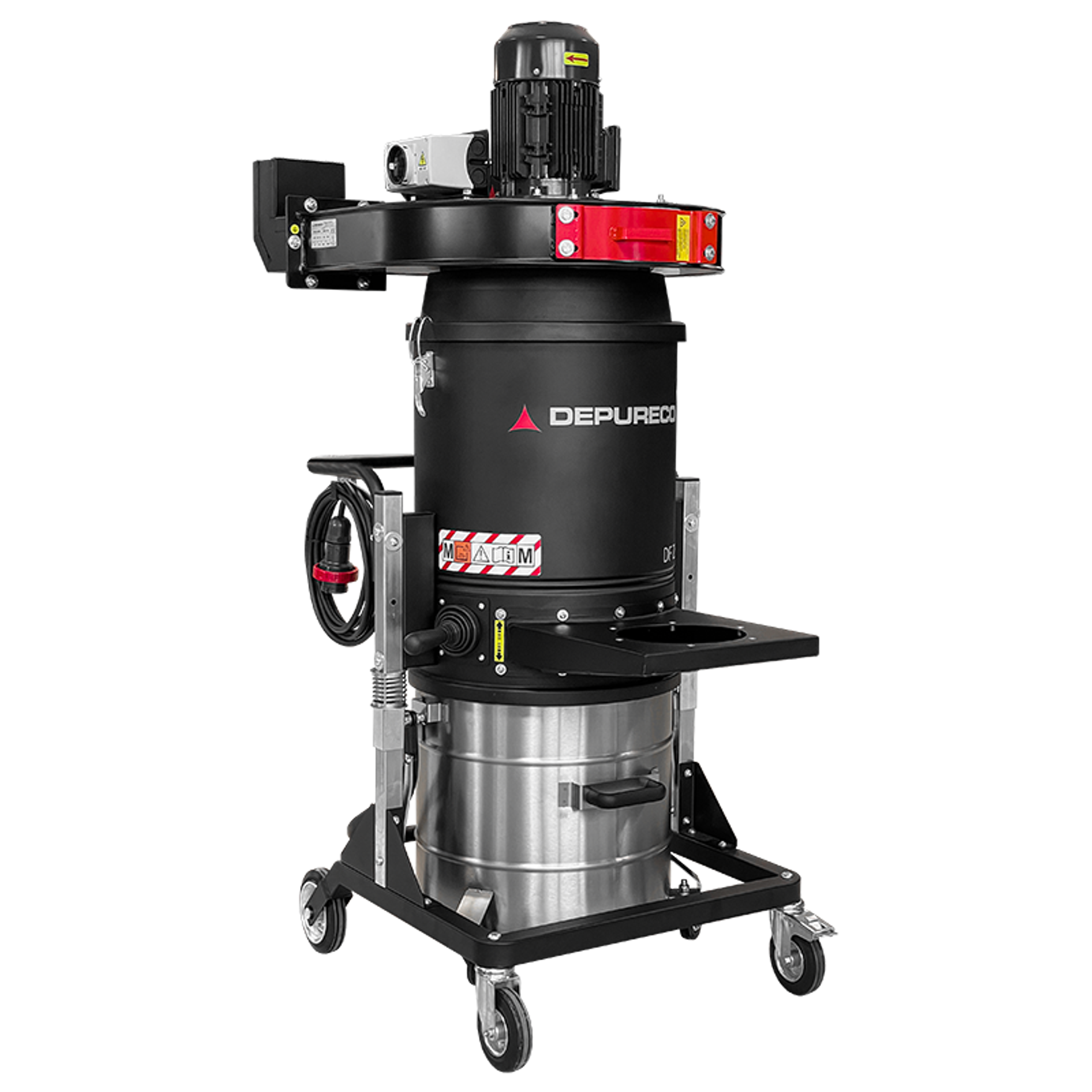

DF 075 – 22 DEX 3/3G
ATEX Zone 2 dust collection with a certified three-phase fan and extremely high airflow — engineered for safe, continuous extraction of combustible dust.
Motor power 0.75 kW | 2.2 kW
Container capacity 65 Lt
Max airflow 300 | 600 | 800 | 1,000 | 1,400 m³/h
The DF 075 – 22 DEX 3/3G is a wheeled industrial dust collector certified to ATEX Zone 2 for the safe extraction of volatile, suspended and combustible dusts in explosion-risk areas. Its ATEX-certified three-phase fan delivers extremely high airflow, and complete grounding of the unit keeps filtration efficient while removing the static charge that airborne dust can carry.
Designed as a fixed point of extraction, the DF DEX 3/3G connects to an ATEX articulated arm, an extraction hood, or directly to your machinery or process line — capturing dust at source rather than after it has spread. High-efficiency M-class filtration with an antistatic polyester Stellare element holds fine powder inside the unit, and the filter is cleaned manually to restore airflow between shifts.
The unit is offered in a range of configurations, with 0.75 kW and 2.2 kW three-phase motor options, so airflow and vacuum can be matched to the duty — whether that is a single hood or a demanding process connection. Every build carries CE and ATEX certification, backed by Depureco's manufacturing pedigree in industrial extraction and a total-cost-of-ownership case built on a long, serviceable working life.
CE CE marking — conformity with EU health, safety and environmental directives.
Technical Data
Motor
Motor type Atex 3G fan
Motor power 0.75 kW | 2.2 kW
Frequency 50/60 Hz
Voltage 400 V
Insulation class 55 | F
Power supply Electrical
Machine
Container capacity 65 Lt
Dimensions 660 × 800 mm
Height 1,630 mm
Weight 110 kg
Suction inlet 70 | 100 | 120 | 150 mm
ATEX marking II 3/3G Ex h IIB T3 Gc/Gc | II 3/3 G Ex h IIB T3 Gc/Gc
Operating temperature -20/+40 °C
Filter
Primary filter class M
Primary filter type Star
Filter media Antistatic polyester
Primary filter area 24,000 cm²
Filter cleaning system Manual
Performance
Max airflow 300 | 600 | 800 | 1,000 | 1,400 m³/h
Max vacuum 185 | 200 | 180 | 350 mmH₂O
Static depression 180 | 192 | 170 | 340 | 320 | 280 mmH₂O
Noise level 65 | 73 dB(A)
Key Features
FILTER UNIT
Filtration is provided by a polyester star filter in class M (filtration efficiency 1 micron) with a high filtering surface area, which guarantees the passage of air even with a dirty filter.
FILTER CLEANING SYSTEM
An ergonomic manual filter shaker allows the filter to be cleaned easily and quickly, removing dust and debris from the surface of the filter.
COLLECTION UNIT
The material is collected inside an AISI 304 stainless steel container, complete with a metal handle that allows its release, to avoid any sparks that could be generated by the electrostatic charge.

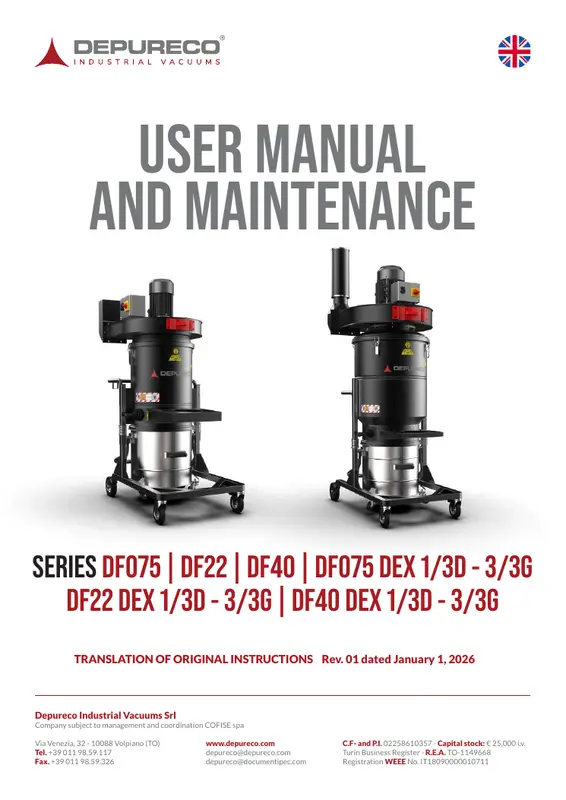

Downloads
