SUCTION UNIT
The suction is generated by a specially designed electric fan to ensure the best air flow rate while maintaining a good level of water lift.
See it in action
DF 075 – 22 SP
Depureco's most compact industrial dust collector — very high airflow and automatic filter cleaning for continuous capture of fine, suspended dust.
Motor power 0.75 kW | 2.2 kW
Container capacity 65 Lt
Max airflow 300 | 600 | 800 | 1,000 | 1,400 m³/h
The DF 075 – 22 SP is the most compact industrial dust collector Depureco builds. A three-phase fan drives very high airflow through the unit, drawing fine, suspended and volatile powders straight out of the working air. Compact enough to sit tight against the process it protects, it can be supplied with a suction arm already installed or prepared for direct connection to your production machinery.
At its core is the SP automatic filter-cleaning system. Three antistatic polyester cartridges hold an M-class primary filter, and the SP mechanism pulses them clean while the machine runs — rather than forcing you to stop and service a clogged filter, the collector holds its suction and the operator keeps working. That self-cleaning cycle is what gives the DF 075 – 22 SP its long working autonomy on continuous fine-dust duty.
Because dust loads vary from a single bench to a full production line, the DF 075 – 22 SP is offered in a range of configurations rather than one fixed build, with motors of 0.75 kW and 2.2 kW to match the airflow your process demands. Every version is CE-marked and built for ordinary and ACD (non-ATEX-classified) industrial areas. Buying from the manufacturer means the specification, the filtration and the after-sales support all come from a single source.
CE CE marking — conformity with EU health, safety and environmental directives.
Technical Data
Motor
Motor type Electric Fan
Motor power 0.75 kW | 2.2 kW
Frequency 50/60 Hz
Voltage 400 V
Insulation class 55 | F
Power supply Electrical
Machine
Container capacity 65 Lt
Dimensions 660 × 800 mm
Height 1,980 mm
Weight 110 | 120 kg
Suction inlet 70 | 100 | 120 | 150 mm
Filter
Primary filter class M
Primary filter type 3x Cartridges
Filter media Antistatic polyester
Primary filter area 90,000 cm²
Filter cleaning system Automatic SP
Performance
Max airflow 300 | 600 | 800 | 1,000 | 1,400 m³/h
Max vacuum 185 | 200 | 180 | 350 mmH₂O
Static depression 180 | 192 | 170 | 340 | 320 | 280 mmH₂O
Noise level 70 | 73 dB(A)
Key Features
FILTER UNIT
Filtration is ensured by polyester cartridge filters in class M (filtration efficiency 1 micron) with high filtering surface area, which guarantees the passage of air even with dirty filter.
SP FILTER CLEANING SYSTEM
Automatic filter cleaning system in reverse flow of air at 6 bar (compressed air not supplied as standard). Each filter is cleaned at regular, adjustable intervals alternately without interrupting suction. Ideal for fine and difficult dust.
COLLECTION UNIT
The material is collected inside a coated container complete with a handle that allows its release. Thanks to the 4 sturdy pivoting wheels, the container can be moved with ease, and the collected material can then be disposed of.

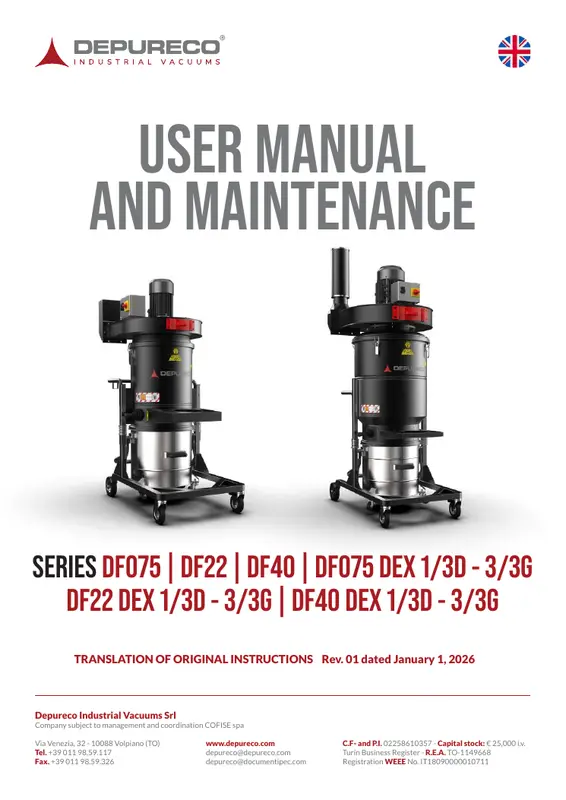

Downloads
Direct from the manufacturer UK-based technical team Tell us what you need. We'll specify the right machine.
Send us a short description of the job — the material, the volume, the regulations that apply — and we'll come back with a recommended machine and a quote.
