SUCTION UNIT
Suction is generated by an Atex-certified electric fan specially designed to ensure the best air flow rate while maintaining a good vacuum level.
See it in action
DF 40 DEX 3/3G
ATEX-certified dust extraction for gas Zone 2 atmospheres, driven by a 4 kW three-phase fan.
Motor power 4 kW
Container capacity 65 Lt
Max airflow 1,500 | 2,100 | 2,700 m³/h
The DF 40 DEX 3/3G is a wheeled industrial dust collector built for one demanding job: safely extracting fine, suspended dust from atmospheres where an explosive gas may be present. It is ATEX-certified for gas Zone 2, marked II 3/3 G Ex h IIB T3 Gc/Gc, and driven by an ATEX-certified three-phase fan that generates a very high air flow rate on a 400-volt supply.
Capturing volatile powders takes more than raw suction. The whole unit is grounded and fitted with an antistatic polyester Stellare primary filter, so charge is discharged instead of building up as fine dust passes through. M-class filtration holds that dust to a high efficiency, and a manual filter-cleaning system keeps performance up without adding complexity or running costs.
No two extraction points are the same, so the DF 40 DEX 3/3G is offered in three fan configurations, letting you match airflow and vacuum to the source. Connect it to an ATEX articulated arm, to an extraction hood, or directly to a machine or process line. CE and ATEX certified and engineered to Depureco's manufacturing standard, it is built to keep a hazardous area clean for the long term, and to lower the real cost of doing so.
CE CE marking — conformity with EU health, safety and environmental directives.
Technical Data
Motor
Motor type Atex 3G fan
Motor power 4 kW
Frequency 50/60 Hz
Voltage 400 V
Insulation class 55 | F
Power supply Electrical
Machine
Container capacity 65 Lt
Dimensions 630 × 1,100 mm
Height 2,150 mm
Weight 145 kg
Suction inlet 150 | 180 | 200 mm
ATEX marking II 3/3 G Ex h IIB T3 Gc/Gc
Operating temperature -20/+40 °C
Filter
Primary filter class M
Primary filter type Star
Filter media Antistatic polyester
Primary filter area 45,000 cm²
Filter cleaning system Manual
Performance
Max airflow 1,500 | 2,100 | 2,700 m³/h
Max vacuum 370 | 340 | 270 mmH₂O
Static depression 300 | 270 | 200 mmH₂O
Noise level 77 dB(A)
Key Features
FILTER UNIT
Filtration is provided by a polyester star filter in class M (filtration efficiency 1 micron) with a high filtering surface area, which guarantees the passage of air even with a dirty filter.
FILTER CLEANING SYSTEM
An ergonomic manual filter shaker allows the filter to be cleaned easily and quickly, removing dust and debris from the surface of the filter.
COLLECTION UNIT
The material is collected inside an AISI 304 stainless steel container, complete with a metal handle that allows its release, to avoid any sparks that could be generated by the electrostatic charge.

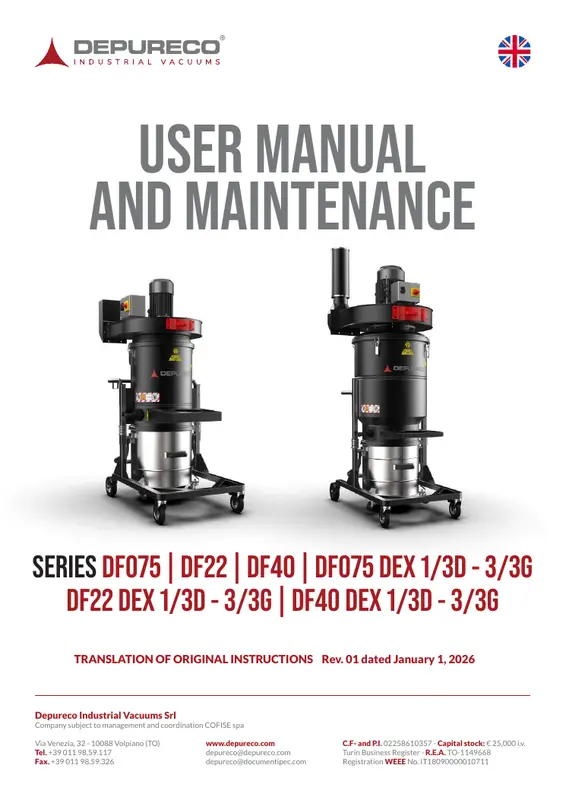

Downloads
Direct from the manufacturer UK-based technical team Tell us what you need. We'll specify the right machine.
Send us a short description of the job — the material, the volume, the regulations that apply — and we'll come back with a recommended machine and a quote.
