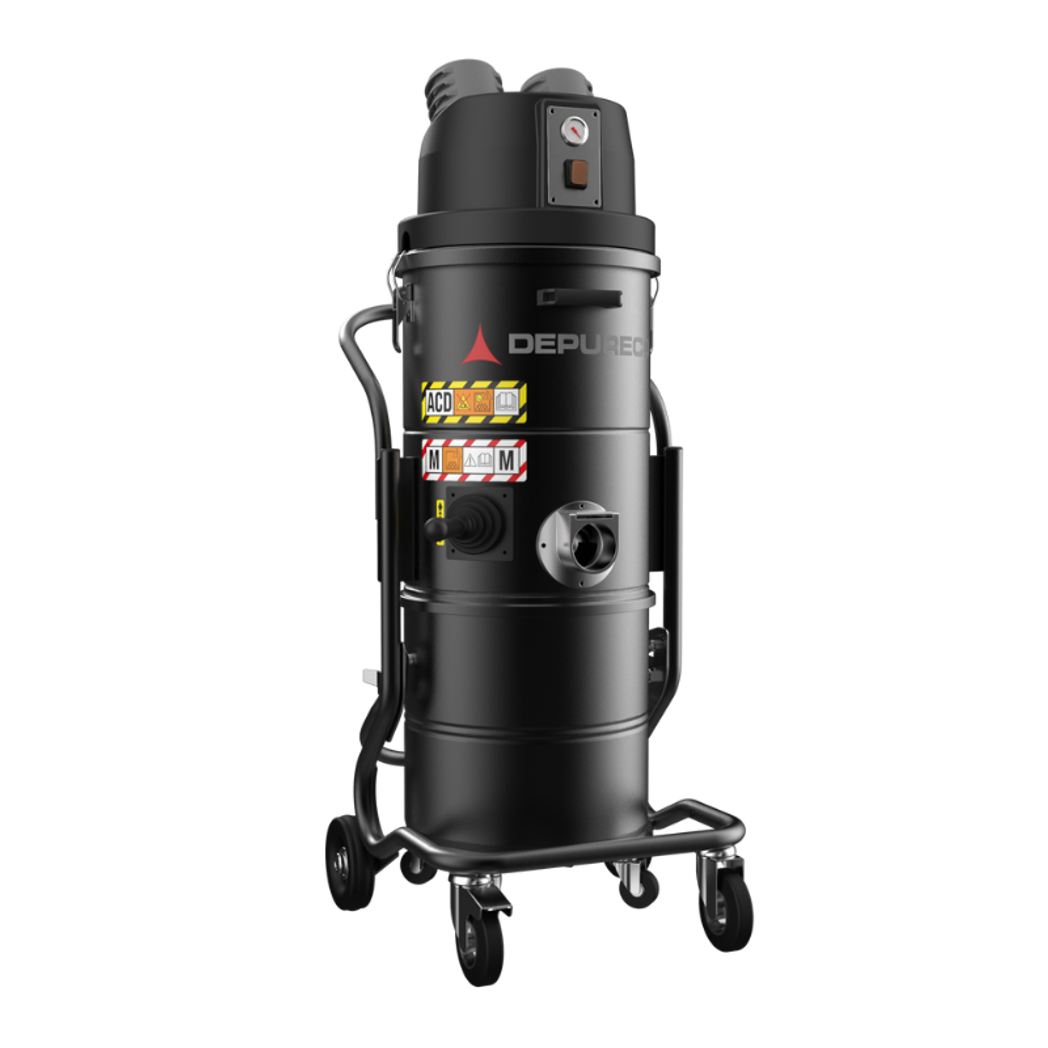

BL 45 ACD

A brushless ACD vacuum engineered to suction combustible dust safely in non-ATEX classified areas.

Motor power 1.1 kW
Container capacity 45 Lt
Max airflow 220 m³/h
10-year guarantee

The BL 45 ACD is Depureco's ACD-classified industrial vacuum for the safe extraction of combustible dust in non-ATEX classified areas. Complete grounding and a high-efficiency class M filter in antistatic polyester keep the machine antistatic through the airflow path, while a 45-litre stainless steel container holds collected dust securely during use.

At its heart is a 1.1 kW brushless motor rated for prolonged duty and a running life of over 20,000 hours, so the machine keeps working shift after shift with fewer wearing parts to replace. A built-in vacuum gauge lets operators monitor suction at a glance, and the compact, easy-to-maintain body keeps servicing quick.

Antistatic accessories are available as optional extras, and a certified version with a container for neutralising reactive dust can be specified where the application calls for it. As the manufacturer, Depureco UK stands behind the BL 45 ACD across its full working life.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type Brushless
Motor power 1.1 kW
Frequency 50/60 Hz
Voltage 110 - 230 V
Power supply Electrical

Machine

Container capacity 45 Lt
Dimensions 550 × 620 mm
Height 1,303 mm
Weight 45 kg
Suction inlet 70 mm

Filter

Primary filter class M
Primary filter type Star
Filter media Antistatic polyester
Primary filter area 15,000 cm²
Filter cleaning system Manual

Performance

Max airflow 220 m³/h
Continuous vacuum 230 mbar
Noise level 72 dB(A)

Key Features

SUCTION UNIT

SUCTION UNIT

The vacuum unit is a powerful Brushless motor, suitable for continuous work. Two filters are installed on the vacuum cleaner head: one to protect the motor and the other placed on the air outlet. The air that comes out is totally filtered

FILTER UNIT

FILTER UNIT

The material is diverted by a deflector protecting the main filter. Filtration is ensured by a class M polyester star filter (filtration efficiency 1 micron) with high filtering surface area, which guarantees air passage even with the dirty filter.

DESIGNED FOR COMBUSTIBLE DUST

DESIGNED FOR COMBUSTIBLE DUST

Ideal for collecting fine and potentially combustible dust in non-ATEX classified areas. The ACD vacuum is equipped with antistatic filters and full grounding to ensure safe and reliable operation.

COLLECTION UNIT

COLLECTION UNIT

The material is collected inside a coated bin complete with a handle that allows it to be released. Thanks to the 4 sturdy pivoting wheels, the container can be moved with ease and the collected material can then be disposed of.

Downloads

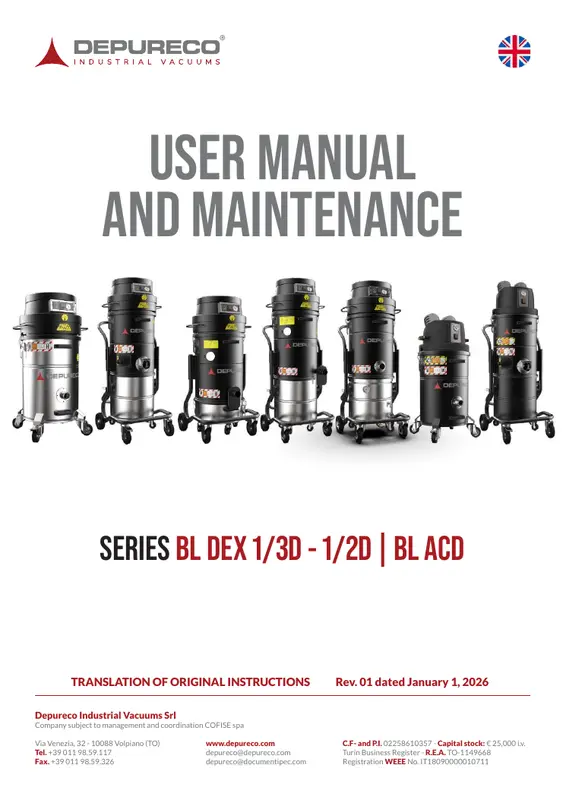

User Manual

Declaration of Conformity

Case Study

ATEX Central Vacuum System for a Flour Mill

How a Depureco ATEX central system controls combustible flour dust across a five-floor mill.

Read case study
