Depureco UK

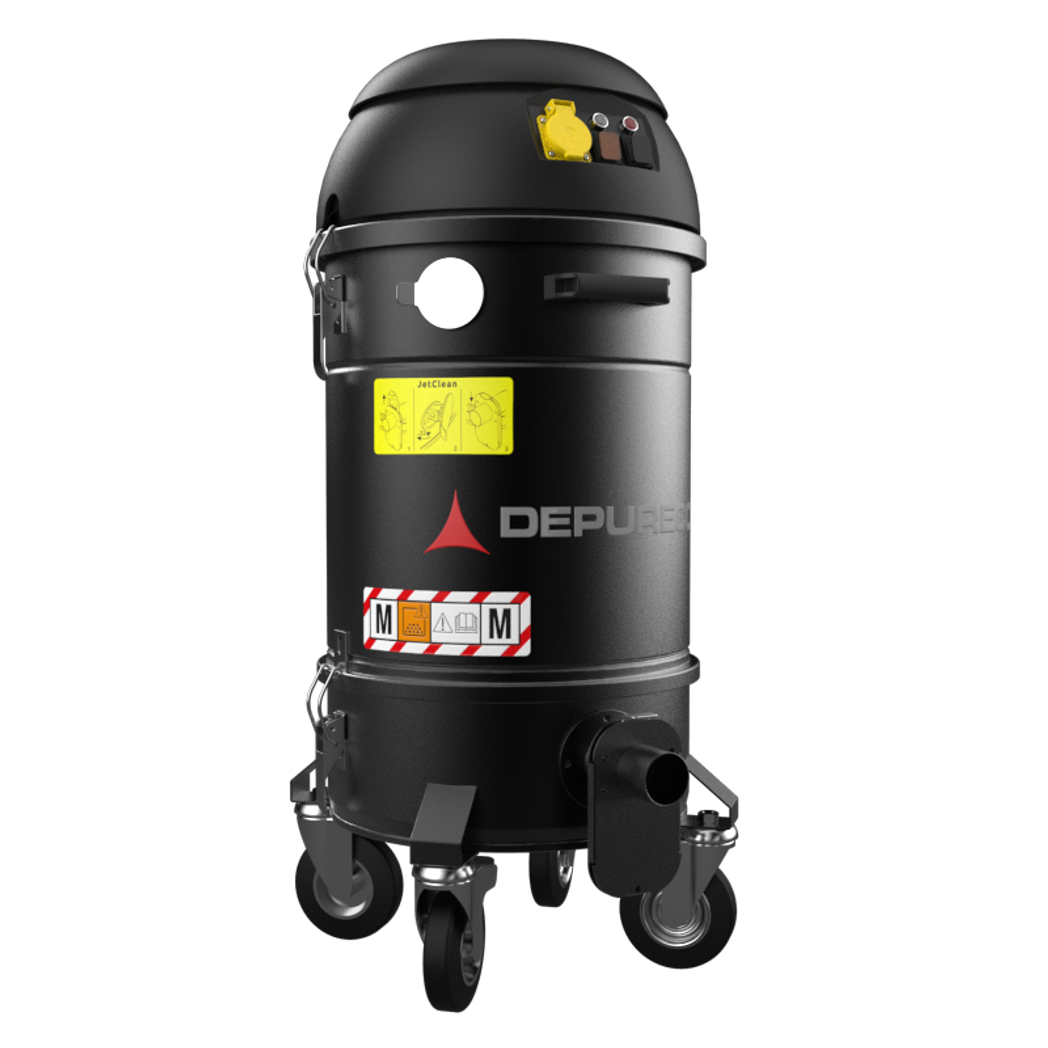

XM TOOLS

XM TOOLS

Compact industrial extraction for grinding, finishing and mechanical processing — capturing dust, shavings and welding fumes right at the tool.

Request a Quote Ask a Question
Motor power 1.3 kW
Container capacity 20 Lt
Max airflow 190 m³/h
10-year guarantee

The XM TOOLS is an industrial shop vacuum engineered for mechanical processing — the fine particles thrown off during grinding, finishing and surface work. It draws powders, solids and shavings straight from the source, and its 1.3 kW by-pass motor delivers steady suction across the working shift.

Multi-stage filtration is built around an M-class cartridge in PTFE-coated polyester, cleaned in place by the Jet Clean system so suction stays consistent as the filter loads. That combination captures fine dust and welding fumes to help protect the operator, and where a finer grade is needed an H14 filter can be fitted on request. The vacuum starts and stops directly from the connected power tool, so extraction runs only when the tool does — dust is captured the moment it is created, not swept up afterwards.

Housed in sturdy painted steel and light enough to move between workstations, the XM TOOLS carries CE marking and is built for ordinary work areas rather than ATEX-classified zones. It is Italian-engineered by Depureco, a manufacturer that has specialised in industrial vacuums since 1972 — a durable, low-maintenance workhorse designed to earn its keep over a long working life.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type By-pass
Motor power 1.3 kW
Frequency 50/60 Hz
Voltage 230 V
Power supply Electrical

Machine

Container capacity 20 Lt
Dimensions 534 × 471 mm
Height 983 mm
Weight 36 kg
Suction inlet 50 mm

Filter

Primary filter class M
Primary filter type Cartridge
Filter media PTFE-coated polyester
Primary filter area 16,000 cm²
Filter cleaning system Jet Clean

Performance

Max airflow 190 m³/h
Continuous vacuum 250 mbar
Noise level 72 dB(A)

Key Features

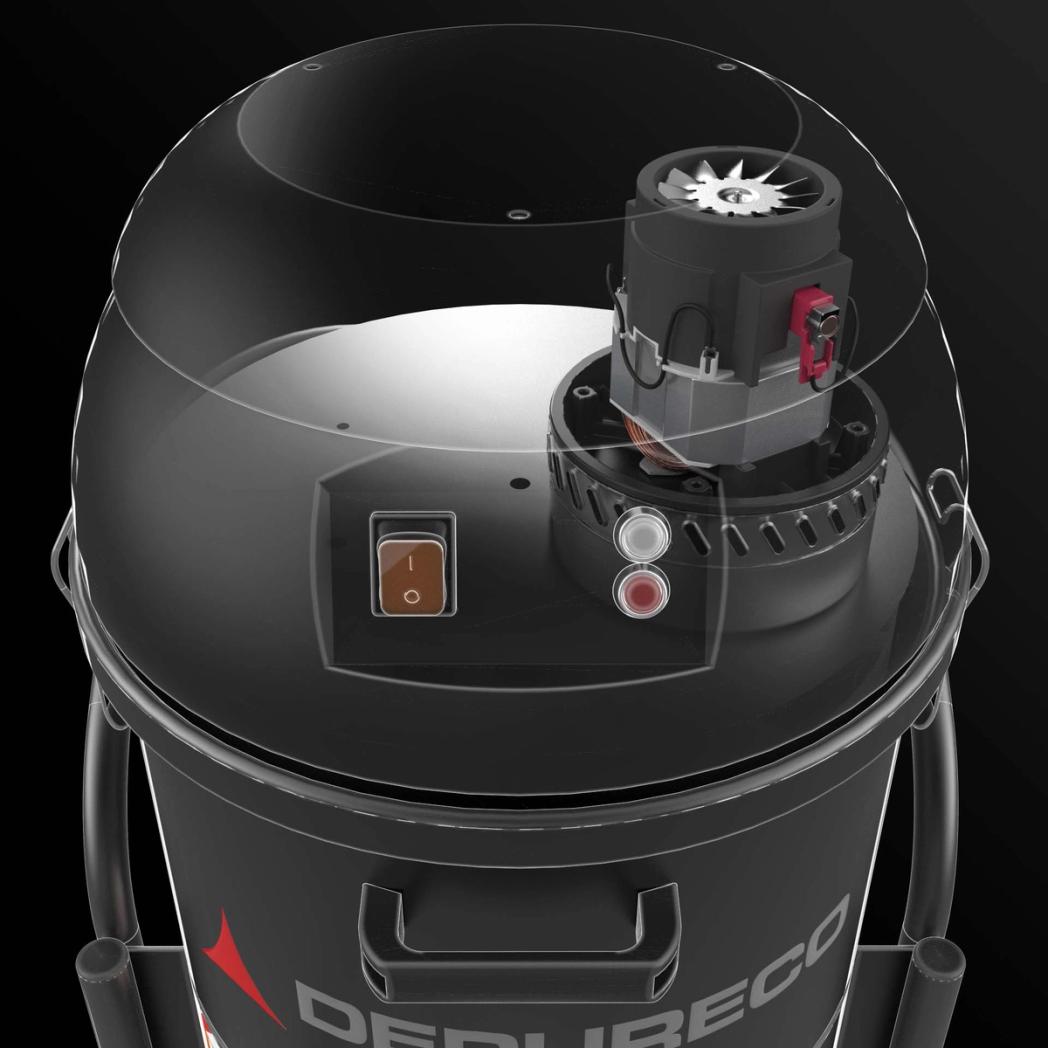

SUCTION UNIT

SUCTION UNIT

Suction is provided by 1 by-pass motor placed inside a robust casing, with an insulating sponge to maintain a low noise level.

FILTER UNIT

FILTER UNIT

Filtration is ensured by a Class M polyester cartridge filter (filtration efficiency 1 micron) with a high filtering surface area, which guarantees air passage even with a dirty filter.

JET CLEAN FILTER CLEANING SYSTEM

JET CLEAN FILTER CLEANING SYSTEM

Equipped with JetClean® filter cleaning system. Due to the different pressure between the outside and inside of the vacuum cleaner, the system generates a flow of air through the cartridge that detaches dust from the surface of the filter, keeping the filter efficient while working and without stopping suction.

REMOTE CONTROL

REMOTE CONTROL

Passing the electric cable of the welding machine through the clip, the vacuum unit automatically begins suction when the operator starts welding and ends a few seconds after the welding machine is turned off.

Downloads

Declaration of Conformity

Case Studies

Real Depureco installations.

See how our industrial vacuum systems are specified, supplied and commissioned on real industrial sites.

See case studies
Direct from the manufacturer UK-based technical team

Tell us what you need. We'll specify the right machine.

Send us a short description of the job — the material, the volume, the regulations that apply — and we'll come back with a recommended machine and a quote.

Typical response within one working day
