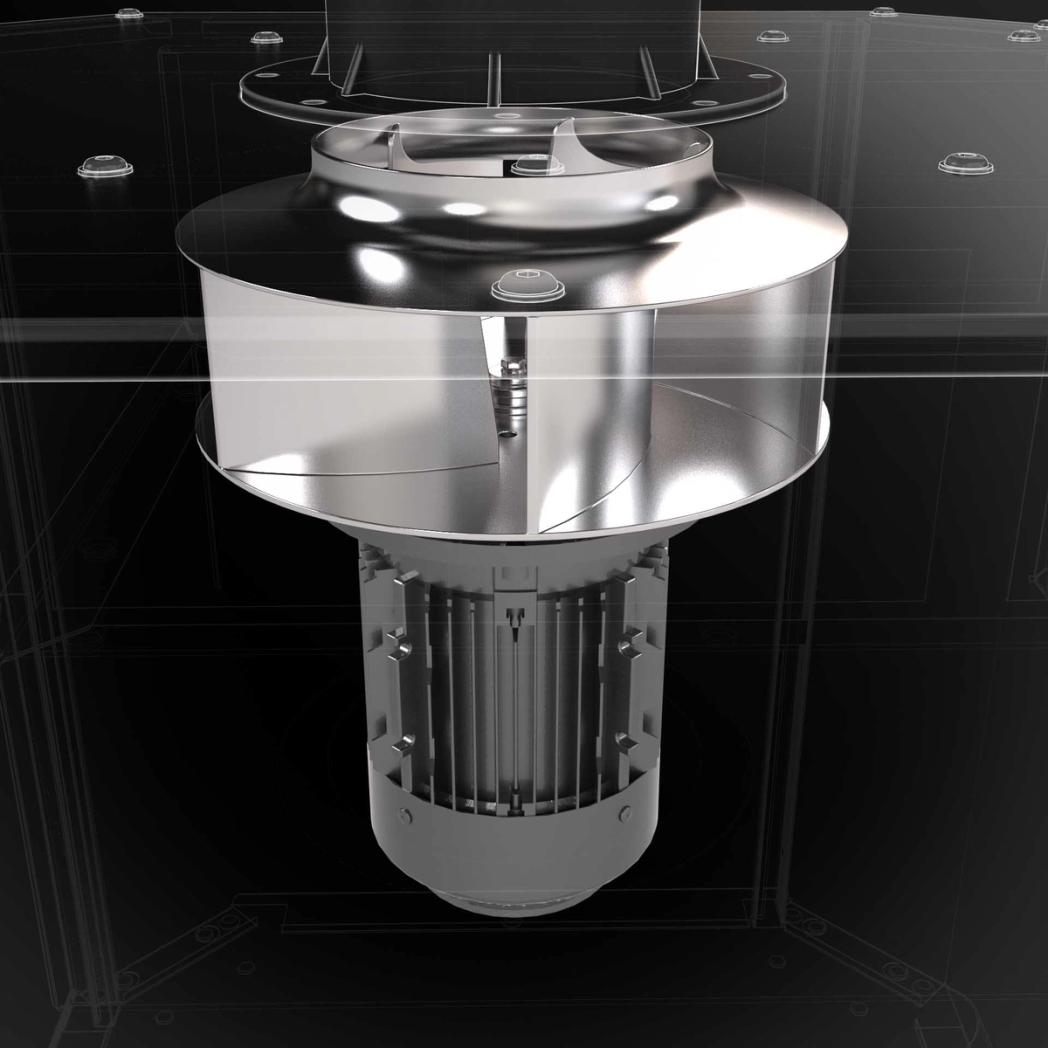

SUCTION UNIT
The suction is generated by a specially designed electric fan to ensure the best air flow rate while maintaining a good vacuum level.
See it in action

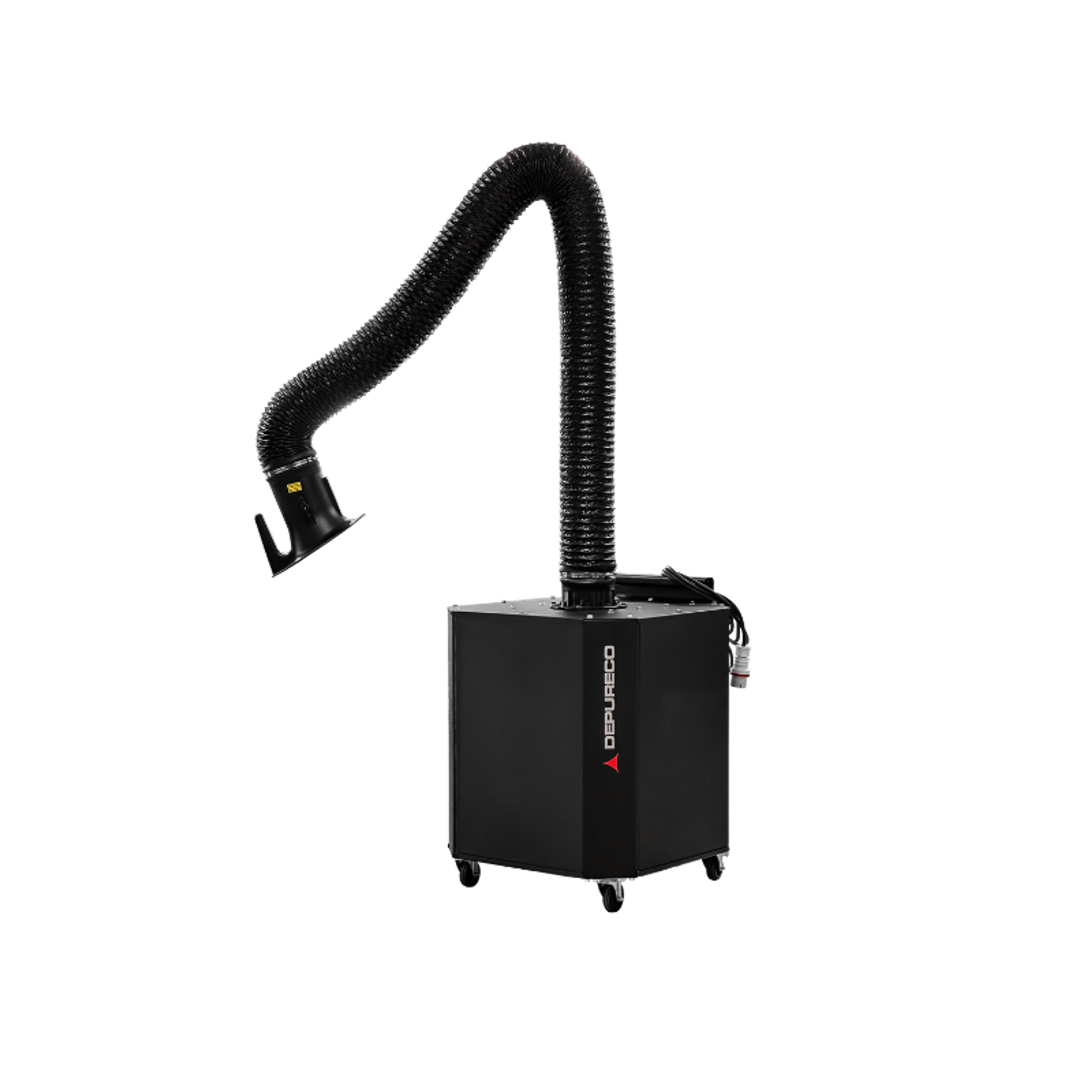

AIR WELD
Pull welding fume straight off the arc with a mobile extractor and a 3-metre articulated capture arm.
Motor power 1.3 kW
Max airflow 1,400 m³/h
The AIR WELD is Depureco's mobile answer to welding fume. A wheeled extractor fan you can roll from bay to bay, it draws smoke straight off the weld through a 3-metre articulated arm, so welders keep clean air where they work without stopping to reposition heavy ducting.
At its heart is a 1.3 kW electric fan pulling fume through an M-class cellulose cartridge filter with a large filtering surface, sized to hold plenty of dust between changes. A built-in counter signals when the cartridge needs replacing, so you swap filters on actual use rather than guesswork and keep running costs predictable over the life of the machine.
AIR WELD is CE-marked and built for ordinary workshop and fabrication areas. It is not ATEX zone-rated: it is designed for standard welding environments rather than classified explosive atmospheres, making it the straightforward choice for everyday welding fume capture on the shop floor.
CE CE marking — conformity with EU health, safety and environmental directives.
Technical Data
Motor
Motor type Electric Fan
Motor power 1.3 kW
Frequency 50/60 Hz
Voltage 400 V
Power supply Electrical
Machine
Dimensions 700 × 750 mm
Height 900 mm
Weight 80 kg
Suction inlet 160 mm
Filter
Primary filter class M
Primary filter type Cartridge
Filter media Cellulose
Primary filter area 120,000 cm²
Performance
Max airflow 1,400 m³/h
Noise level 72 dB(A)
Key Features
FILTER UNIT
A special very high surface area M-class filter cartridge lined with a regenerable coalescing washing mat captures the remaining microneedles.

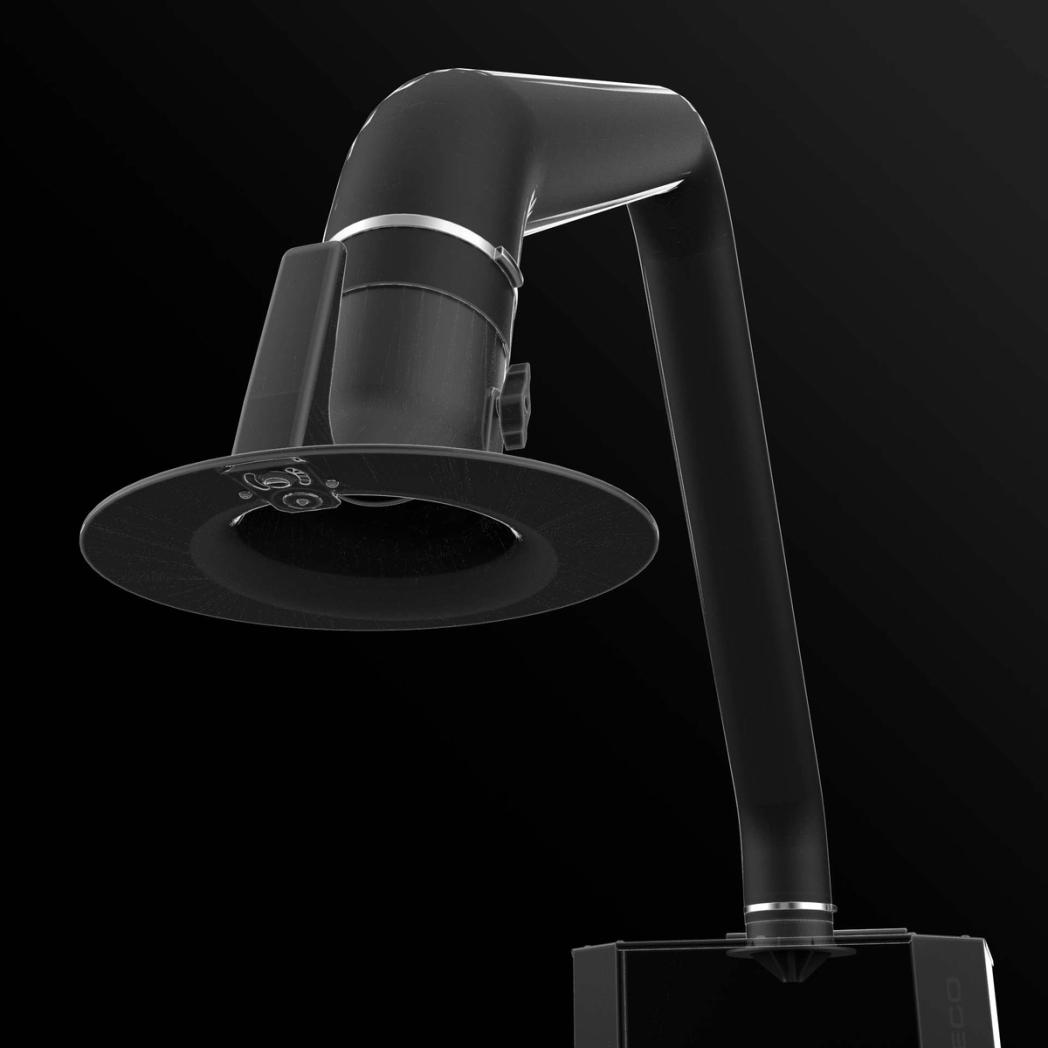

ARTICULATED ARM
A long suction arm facilitates positioning to vacuum directly to the source and avoid dust/fume dispersion into the work environment

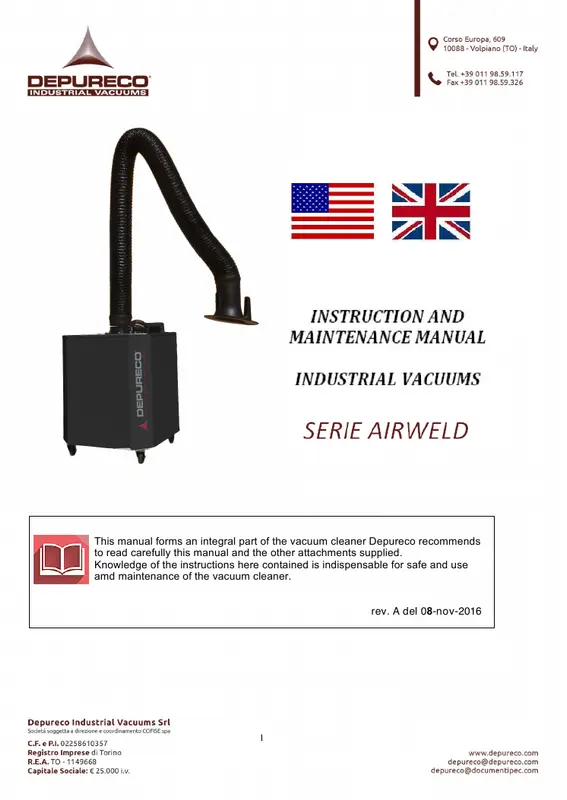

Downloads
Direct from the manufacturer UK-based technical team Tell us what you need. We'll specify the right machine.
Send us a short description of the job — the material, the volume, the regulations that apply — and we'll come back with a recommended machine and a quote.
