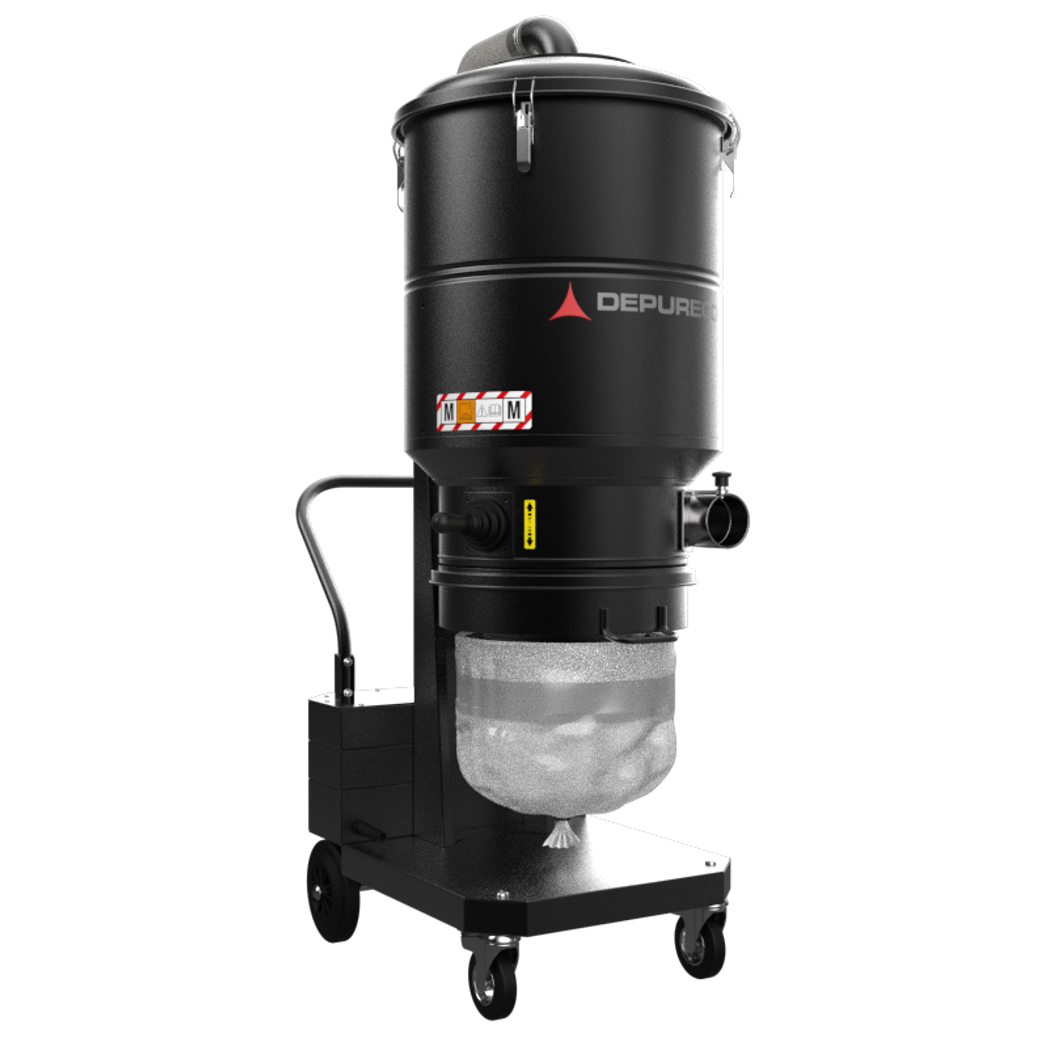

XFLOOR 3 PLUS

XFLOOR 3 PLUS

A compact, easy-to-move industrial vacuum that captures fine construction and surface-treatment dust at the source and bags it without operator contact.

Motor power 3.9 kW
Max airflow 570 m³/h
10-year guarantee

The XFLOOR 3 PLUS is an industrial vacuum built for construction and surface-treatment work, where fine dust is produced constantly and needs to be captured before it disperses. Compact and easy to transport around a site or between floors, it combines suction power, filtration efficiency and safe dust collection to give operators strong protection from airborne fine dust in floor and surface-treatment operations.

A tangential inlet sets up a cyclonic effect that drops heavier material into the container before it reaches the filter, easing the load on the filtration stage. From there a large-area class M primary filter — a polyester star filter with a 45,000 square-centimetre surface — traps the fine, clogging powders that construction and surface work throw off, and an ergonomic manual filter-shaker clears the surface in seconds to keep airflow and suction consistent. Collected material discharges into a continuous Endless Bag, so the operator can seal and remove it without coming into contact with what has been vacuumed.

That combination suits fine, dry and clogging powders as well as toxic or hazardous dusts, where keeping material sealed and out of the air matters most. The XFLOOR 3 PLUS is CE-marked and runs on an electrical supply; it is not ATEX zone-certified and is intended for ordinary, non-classified working areas. Backed by Depureco's Italian engineering — a manufacturer that has built industrial vacuum systems since 1972 — it is specified around durability and total cost of ownership across a long service life rather than the lowest up-front price.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type By-pass
Motor power 3.9 kW
Frequency 50/60 Hz
Voltage 230 V
Power supply Electrical

Machine

Dimensions 920 × 565 mm
Height 1,430 mm
Compact height 1,170 mm
Weight 80 kg
Suction inlet 80 mm

Filter

Primary filter class M
Primary filter type Star
Filter media Polyester
Primary filter area 45,000 cm²
Filter cleaning system Manual

Performance

Max airflow 570 m³/h
Continuous vacuum 250 mbar
Noise level 72 dB(A)

Key Features

SUCTION UNIT

SUCTION UNIT

Suction is provided by 3 by-pass motors controlled by a single switch that allows them to start sequentially, avoiding current spikes. The motors are inside a sturdy enclosure, with an insulating sponge to maintain a low noise level.

FILTER CLEANING SYSTEM

FILTER CLEANING SYSTEM

An ergonomic manual filter shaker allows the filter to be cleaned easily and quickly, removing dust and debris from the surface of the filter.

FILTER UNIT

FILTER UNIT

The tangential inlet facilitates the cyclonic effect to deposit the collected material in the container. Filtration is ensured by a polyester star filter in class M (filtering efficiency 1 micron) with high filtering surface area, which guarantees air passage even with a dirty filter.

COLLECTION UNIT

COLLECTION UNIT

The material is collected inside a sturdy 20-meter-long adjustable roll plastic bag. Once the bag is filled, simply seal and remove it, with no contact between operator and material.

Downloads

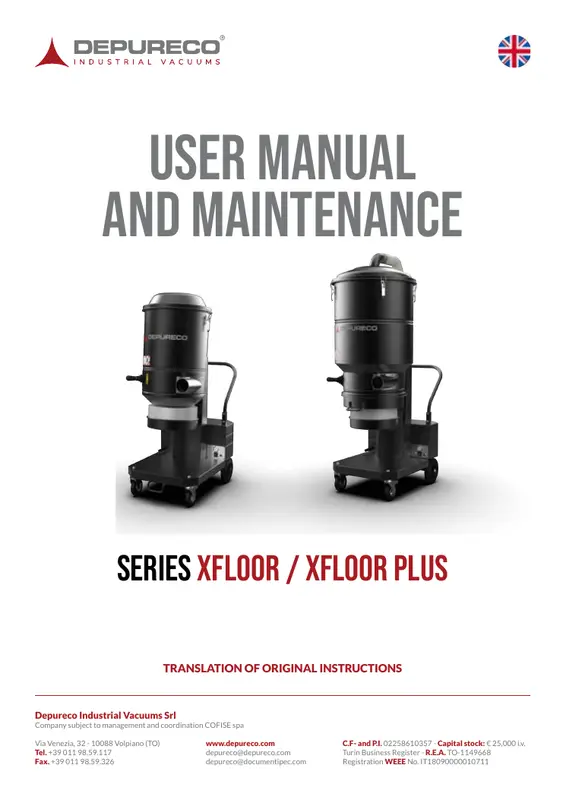

User Manual

Declaration of Conformity

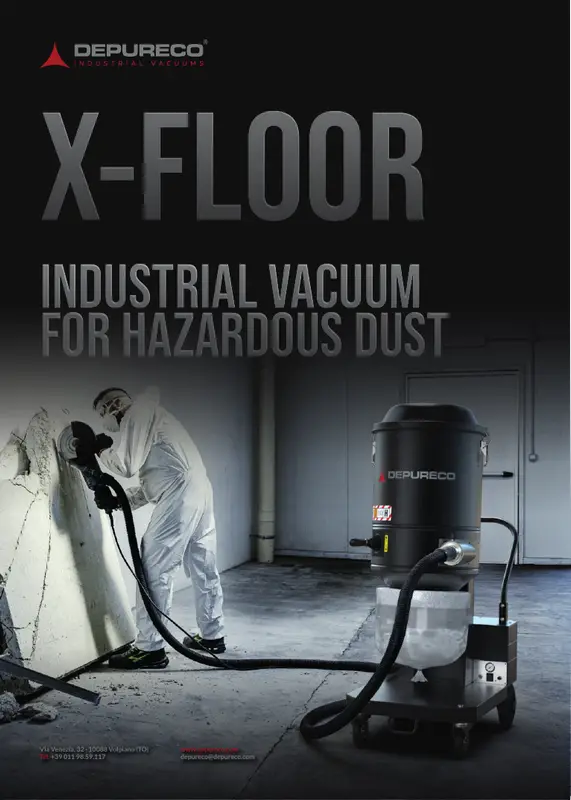

Brochure
