Depureco UK

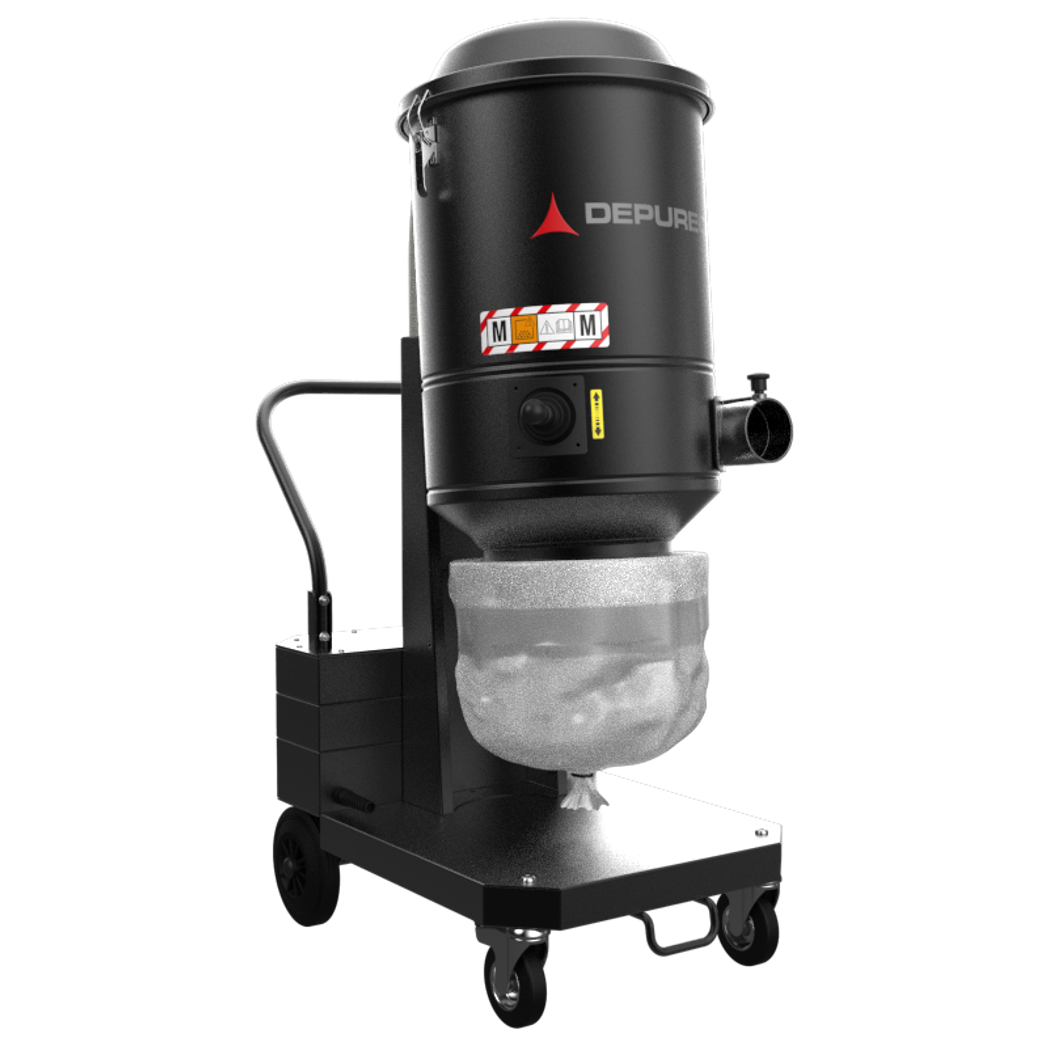

XFLOOR 3

XFLOOR 3

Compact, mobile fine-dust extraction for floor and surface treatment — cyclonic separation, a class M filter and sealed Endless Bag collection in one machine.

Request a Quote Ask a Question
Motor power 3.9 kW
Max airflow 570 m³/h
10-year guarantee

The XFLOOR 3 is an industrial vacuum engineered for surface treatment — the fine, airborne dust thrown off during floor grinding, sanding and finishing. It is compact and easy to move around a site, and it is built to keep that dust contained rather than dispersed across the working area.

Suction draws dust through a tangential inlet, where a cyclonic effect drops the heavier material straight into the container before it reaches the filter. What remains is captured by a large-area class M filter in star-configuration polyester, cleaned in seconds by an integrated manual filter shaker so airflow stays high even as the filter loads. A by-pass motor rated at 3.9 kW drives the unit.

Collected dust discharges into an Endless Bag — a continuous sleeve the operator seals and removes with no direct contact with the material. That makes the XFLOOR 3 well suited to fine, dry and clogging powders as well as toxic or hazardous dusts. It carries CE certification and runs on a standard electrical supply. Note that it is not ATEX zone-certified: it is specified for ordinary, non-classified areas.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type By-pass
Motor power 3.9 kW
Frequency 50/60 Hz
Voltage 230 V
Power supply Electrical

Machine

Dimensions 920 × 565 mm
Height 1,430 mm
Compact height 1,170 mm
Weight 70 kg
Suction inlet 80 mm

Filter

Primary filter class M
Primary filter type Star
Filter media Polyester
Primary filter area 24,000 cm²
Filter cleaning system Manual

Performance

Max airflow 570 m³/h
Continuous vacuum 250 mbar
Noise level 72 dB(A)

Key Features

SUCTION UNIT

SUCTION UNIT

Suction is provided by 3 by-pass motors controlled by a single switch that allows them to start sequentially, avoiding current spikes. The motors are inside a sturdy enclosure, with an insulating sponge to maintain a low noise level.

FILTER CLEANING SYSTEM

FILTER CLEANING SYSTEM

An ergonomic manual filter shaker allows the filter to be cleaned easily and quickly, removing dust and debris from the surface of the filter.

FILTER UNIT

FILTER UNIT

The tangential inlet facilitates the cyclonic effect to deposit the collected material in the container. Filtration is ensured by a polyester star filter in class M (filtering efficiency 1 micron) with high filtering surface area, which guarantees air passage even with a dirty filter.

COLLECTION UNIT

COLLECTION UNIT

The material is collected inside a sturdy 20-meter-long adjustable roll plastic bag. Once the bag is filled, simply seal and remove it, with no contact between operator and material.

Downloads

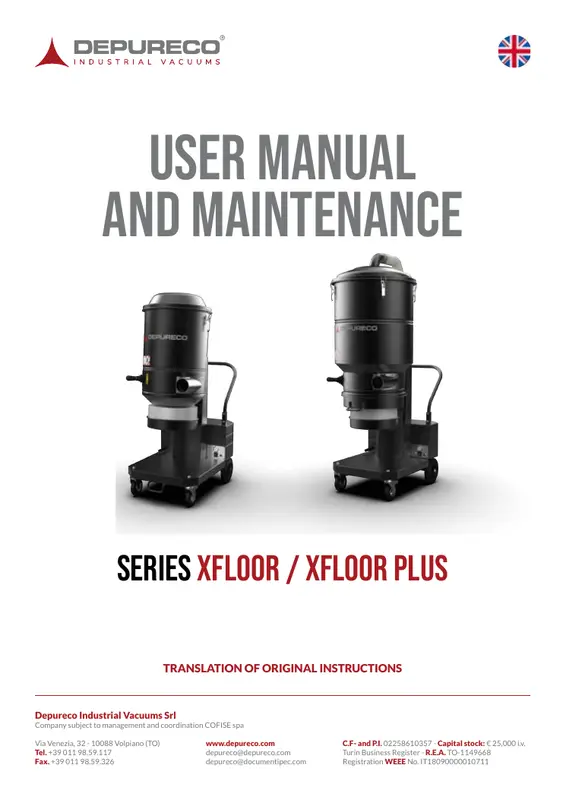

User Manual

Declaration of Conformity

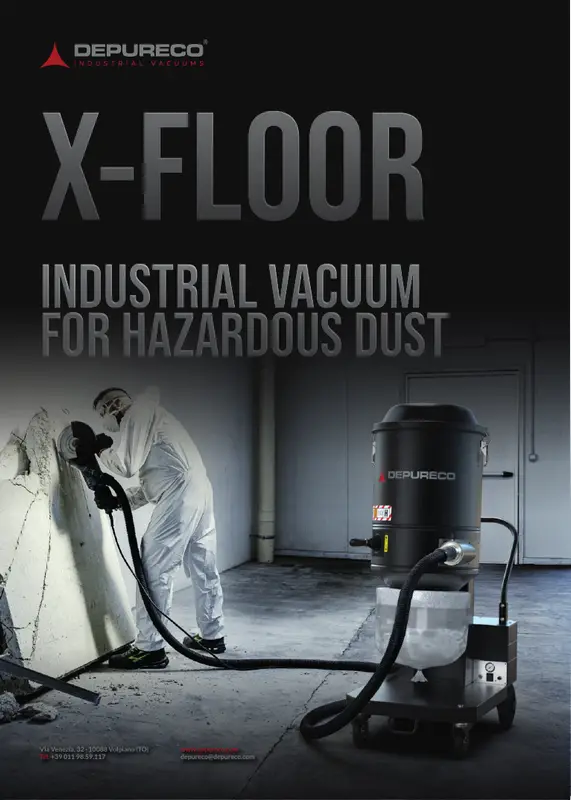

Brochure

Case Studies

Real Depureco installations.

See how our industrial vacuum systems are specified, supplied and commissioned on real industrial sites.

See case studies
Direct from the manufacturer UK-based technical team

Tell us what you need. We'll specify the right machine.

Send us a short description of the job — the material, the volume, the regulations that apply — and we'll come back with a recommended machine and a quote.

Typical response within one working day
