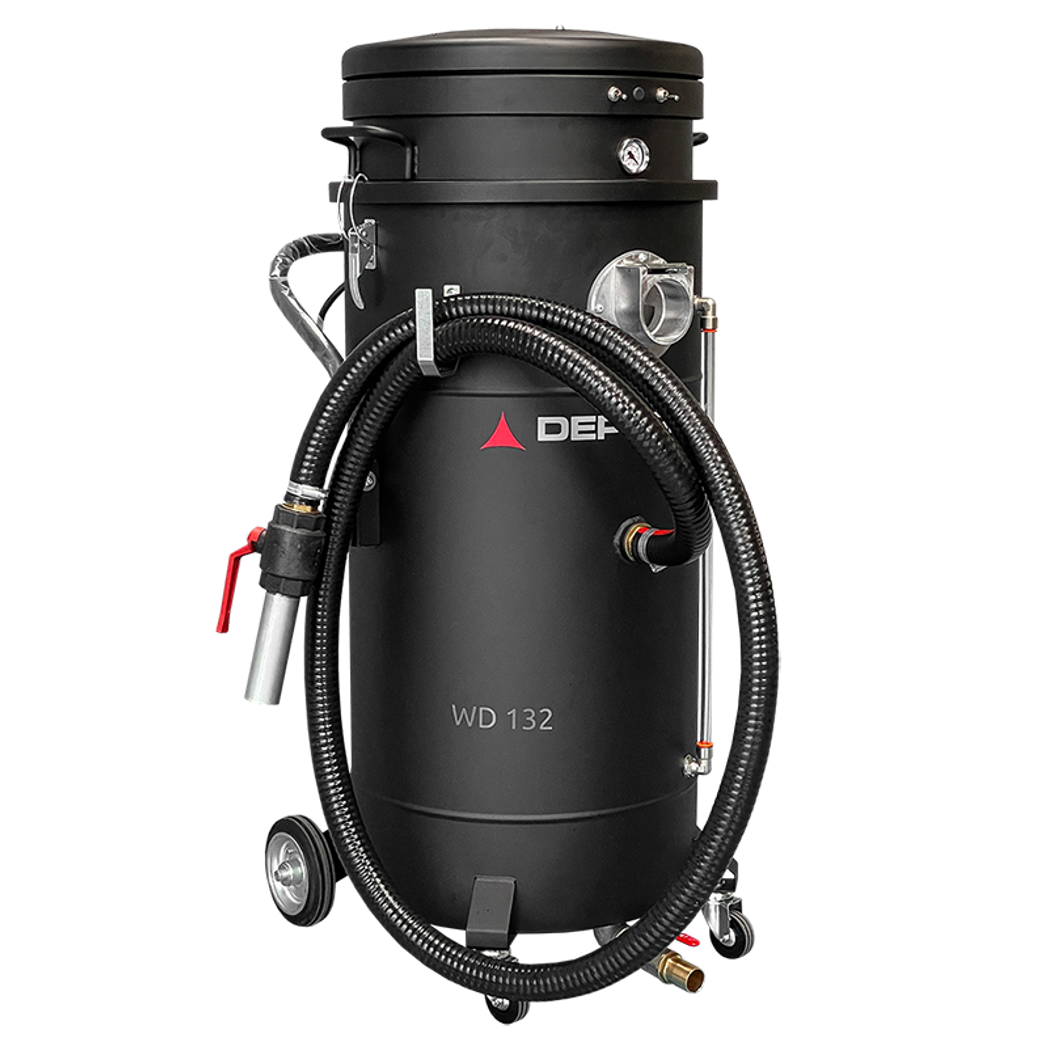

WD 132 P

WD 132 P

Vacuum liquids and empty the tank at the same time — no stopping to drain.

Motor power 2.6 kW
Container capacity 130 Lt
Max airflow 380 m³/h
10-year guarantee

The WD 132 P is a heavy-duty industrial vacuum built for one of the toughest recovery jobs on site: large volumes of liquid mixed with solids. Two single-phase by-pass motors deliver 2.6 kW of power, while a manual discharge valve and an immersed pump empty the collected liquid automatically — so the machine keeps vacuuming as it discharges, rather than filling up and forcing you to stop and drain by hand.

A dual, interchangeable filtration system lets the same machine handle liquid or solid recovery, so you swap the filters to suit the job rather than buying a second vacuum. The 130-litre collection tank is made from high-strength steel, and an anti-foam filter keeps foaming liquids under control through long recovery runs.

Engineered and built by Depureco, an Italian industrial-vacuum manufacturer, the WD 132 P is CE certified for ordinary industrial environments. It is not ATEX zone-certified for potentially explosive atmospheres — but for standard liquid and slurry recovery it is a robust, long-serving workhorse.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type By-pass
Motor power 2.6 kW
Frequency 50/60 Hz
Voltage 230 V
Power supply Electrical

Machine

Container capacity 130 Lt
Dimensions 580 × 530 mm
Height 1,160 mm
Weight 47 kg
Suction inlet 70 mm
Liquid discharge system Discharge pump

Filter

Primary filter type Bag
Filter media Polypropylene 150μm
Additional filter Anti-foam filter

Performance

Max airflow 380 m³/h
Continuous vacuum 250 mbar
Noise level 72 dB(A)

Key Features

SUCTION UNIT

SUCTION UNIT

Suction is provided by 2 by-pass motors controlled by independent switches, allowing the operator to control suction performance. The motors are located inside a robust enclosure, with an insulating sponge to maintain a low noise level.

DUST/LIQUID FILTRATION KIT

DUST/LIQUID FILTRATION KIT

Supplied with two washable filters, one polypropylene for liquid suction and one polyester for dust suction.

COLLECTION UNIT

COLLECTION UNIT

The material is collected inside a large coated steel container that is easy to move thanks to the 4 sturdy wheels.

LIQUID DISCHARGE SYSTEM

LIQUID DISCHARGE SYSTEM

An electric pump is installed inside the container and allows the extracted and filtered liquids to be discharged quickly. Thanks to the non-return valve, it is possible to suction and discharge at the same time, without stopping the machine.

Downloads

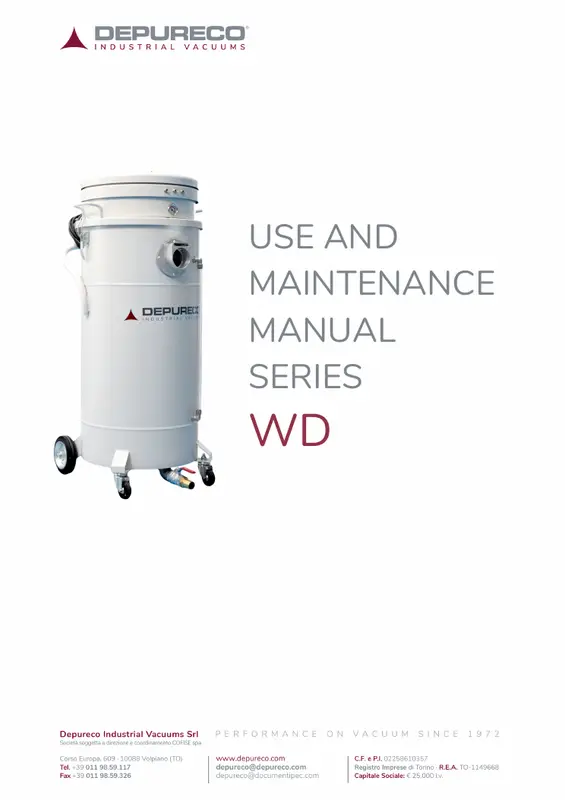

User Manual

Declaration of Conformity

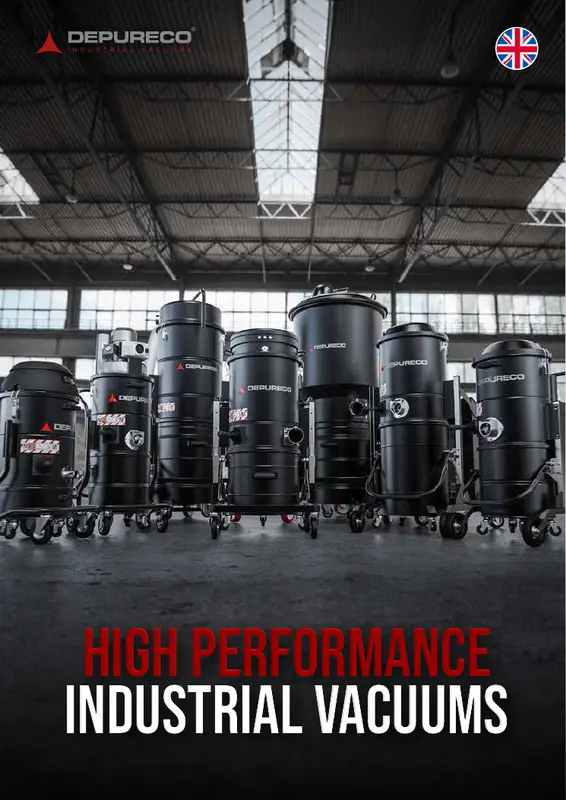

Brochure
