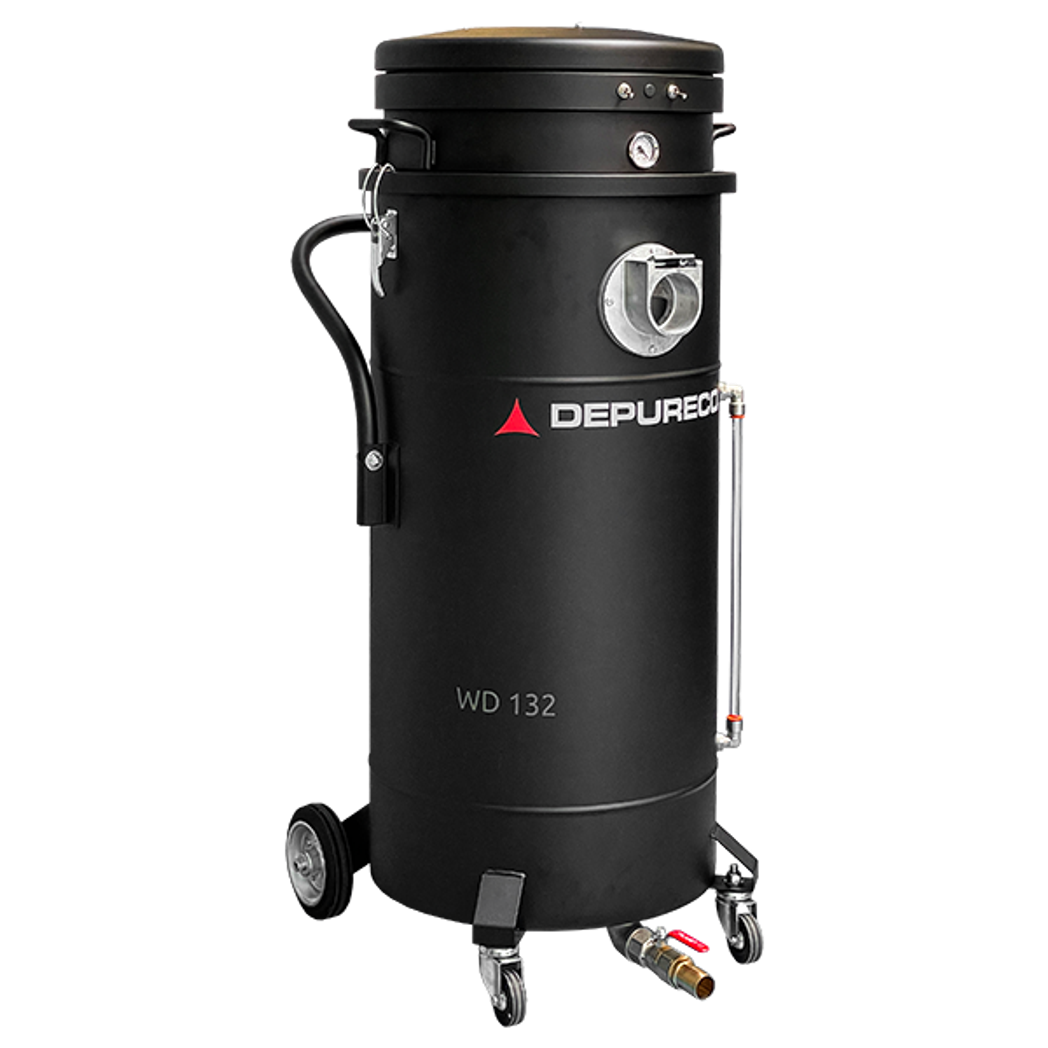

WD 132/133

WD 132/133

The single-phase wet vacuum built to lift large volumes of liquid — and the solids carried in it — into one 130-litre steel container.

Motor power 2.6 kW | 3.9 kW
Container capacity 130 Lt
Max airflow 380 | 570 m³/h
10-year guarantee

The WD 132/133 is a heavy-duty industrial vacuum built for one demanding job: recovering large volumes of liquid — and the solids suspended in it — quickly and repeatedly. Single-phase by-pass motors drive the suction, and everything collects in a 130-litre high-strength steel container sized for real production volumes. A manual valve lets an operator discharge the collected liquid without lifting or tipping the machine.

Industrial liquids rarely arrive clean, so the WD 132/133 uses a dual, interchangeable filtration system — switch between the liquid and the solid set-up to match what you are recovering. A 150-micron polypropylene filter media sits at the core, with an anti-foam filter for wet work. It is offered in two single-phase configurations, a 2.6 kW build and a 3.9 kW build, so you can match motor power to the duty cycle. For continuous jobs, a submersible-pump version discharges liquid automatically and lets the machine vacuum and drain at the same time.

High-strength steel construction is the core of the WD 132/133's value: it is built to keep working through a long service life in demanding environments, which is where a cheaper wet vacuum quietly runs up its real cost. The machine is CE marked for ordinary, non-classified industrial areas — it is not ATEX-certified for explosive atmospheres — so specify it for standard production, cleaning and maintenance duties.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type By-pass
Motor power 2.6 kW | 3.9 kW
Frequency 50/60 Hz
Voltage 230 V
Power supply Electrical

Machine

Container capacity 130 Lt
Dimensions 580 × 530 mm
Height 1,160 mm
Weight 38 | 40 kg
Suction inlet 70 mm
Liquid discharge system Discharge valve

Filter

Primary filter type Bag
Filter media Polypropylene 150μm
Additional filter Anti-foam filter

Performance

Max airflow 380 | 570 m³/h
Continuous vacuum 250 mbar
Noise level 72 dB(A)

Key Features

SUCTION UNIT

SUCTION UNIT

Suction is provided by 2/3 by-pass motors operated by independent switches, allowing the operator to control suction performance. The motors are located inside a robust enclosure, with an insulating sponge to maintain a low noise level.

DUST/LIQUID FILTRATION KIT

DUST/LIQUID FILTRATION KIT

Supplied with two washable filters, one polypropylene for liquid suction and one polyester for dust suction.

COLLECTION UNIT

COLLECTION UNIT

The material is collected inside a large coated steel container that is easy to move thanks to the 4 sturdy wheels.

LIQUID DISCHARGE VALVE

LIQUID DISCHARGE VALVE

A ball valve located at the bottom of the container allows the collected liquids to be easily discharged by gravity.

Downloads

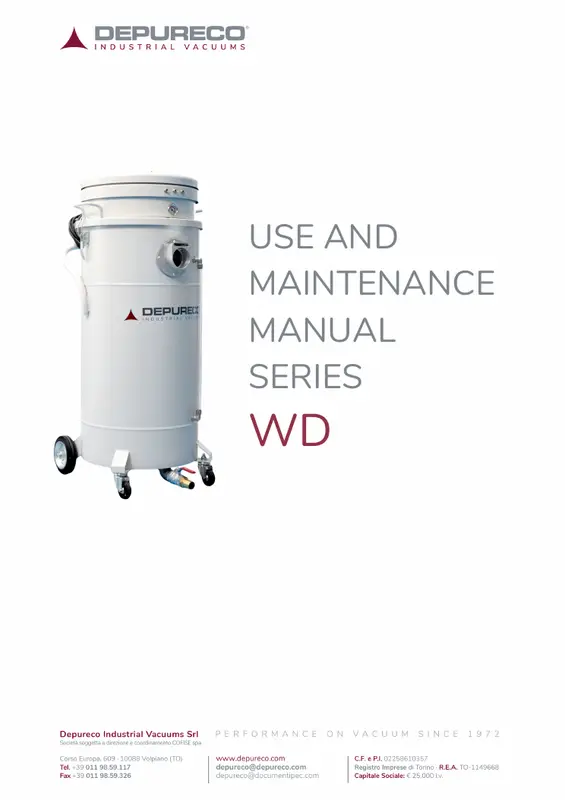

User Manual

Declaration of Conformity

Brochure

Case Studies

Real Depureco installations.

See how our industrial vacuum systems are specified, supplied and commissioned on real industrial sites.

See case studies
Direct from the manufacturer UK-based technical team

Tell us what you need. We'll specify the right machine.

Send us a short description of the job — the material, the volume, the regulations that apply — and we'll come back with a recommended machine and a quote.

Typical response within one working day
