MINIAIR

MINIAIR

Full industrial suction straight from your compressed-air line — no electric motor required.

Container capacity 45 Lt
Max airflow 300 m³/h
10-year guarantee

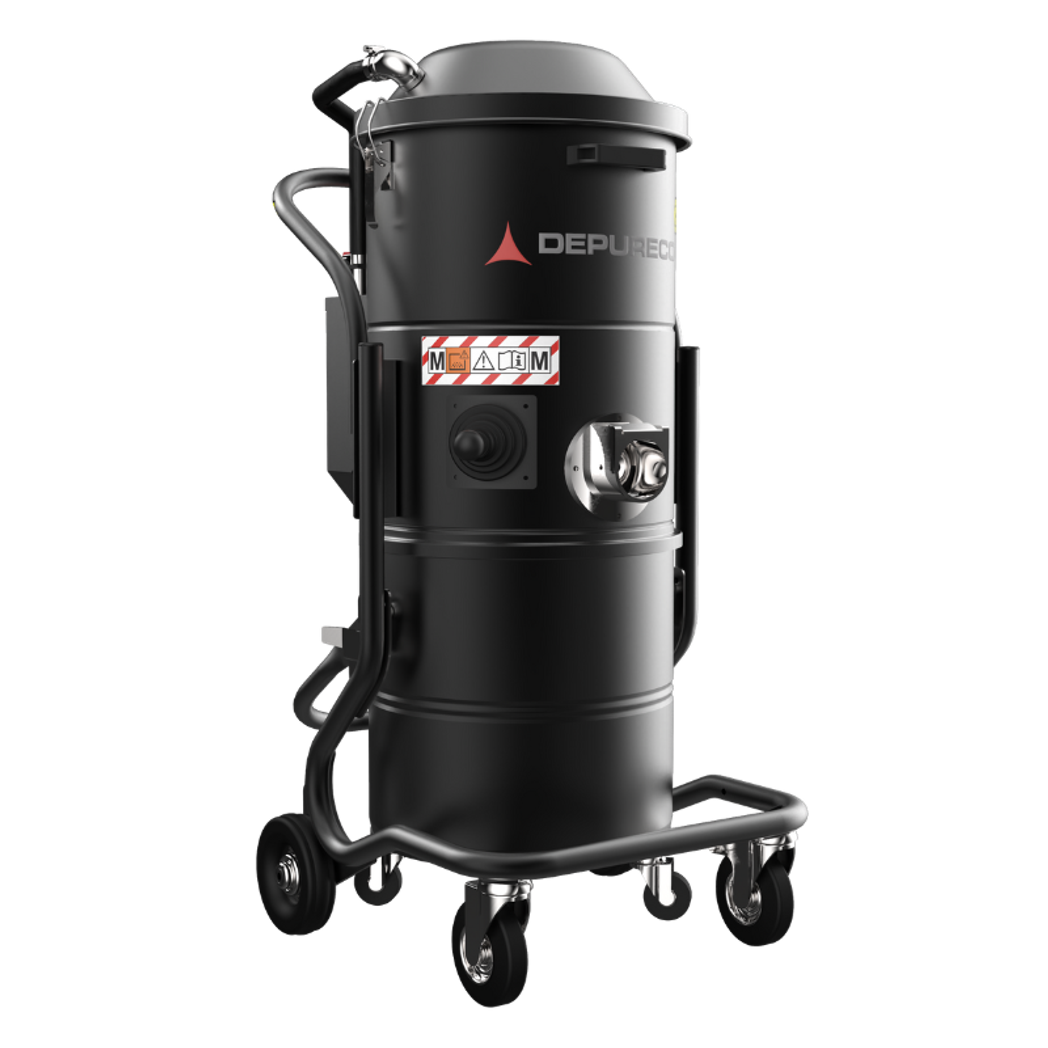

The Miniair is a compressed-air industrial vacuum built for workshops and production lines where a mains supply is scarce, awkward or best kept out of the way. In place of an electric motor, suction comes from two Venturi ejectors that draw a strong, steady vacuum straight off your compressed-air line — no moving parts in the airstream, and a rated noise level of 78 decibels.

It moves up to 300 cubic metres of air per hour at 500 millibar of continuous vacuum, pulling dry powders, solids and metal shavings into a 45-litre coated steel bin that releases on a handle and rolls on four pivoting wheels. A class M polyester star filter with 15,000 square centimetres of media filters down to one micron and keeps air moving even as it loads, while an ergonomic manual shaker cleans it in seconds. Fit the optional float switch and the same machine handles wet powders and liquids.

Because the ejectors have no motor to burn out and the body is welded from sturdy painted steel, the Miniair is Italian-engineered to keep earning its place on the floor for years, and it is rated for continuous-duty use — the kind of low-maintenance longevity that keeps total cost of ownership down. It is CE-marked for use in ordinary, non-ATEX-classified areas, and can be specified with AISI 304 stainless bins and chamber, absolute (HEPA) or antistatic filter media, full grounding and disposable collection bags to suit your process. Buy the replacement filter with the machine and Depureco backs it with a warranty of up to three years.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type Venturi ejector
Compressed air required 2,500 lt/min
Compressed air pressure required 6 - 8 bar
Power supply Compressed air

Machine

Container capacity 45 Lt
Dimensions 550 × 620 mm
Height 1,150 mm
Weight 40 kg
Suction inlet 70 mm

Filter

Primary filter class M
Primary filter type Star
Filter media Polyester
Primary filter area 15,000 cm²
Filter cleaning system Manual

Performance

Max airflow 300 m³/h
Continuous vacuum 500 mbar
Noise level 78 dB(A)

Key Features

SUCTION UNIT

SUCTION UNIT

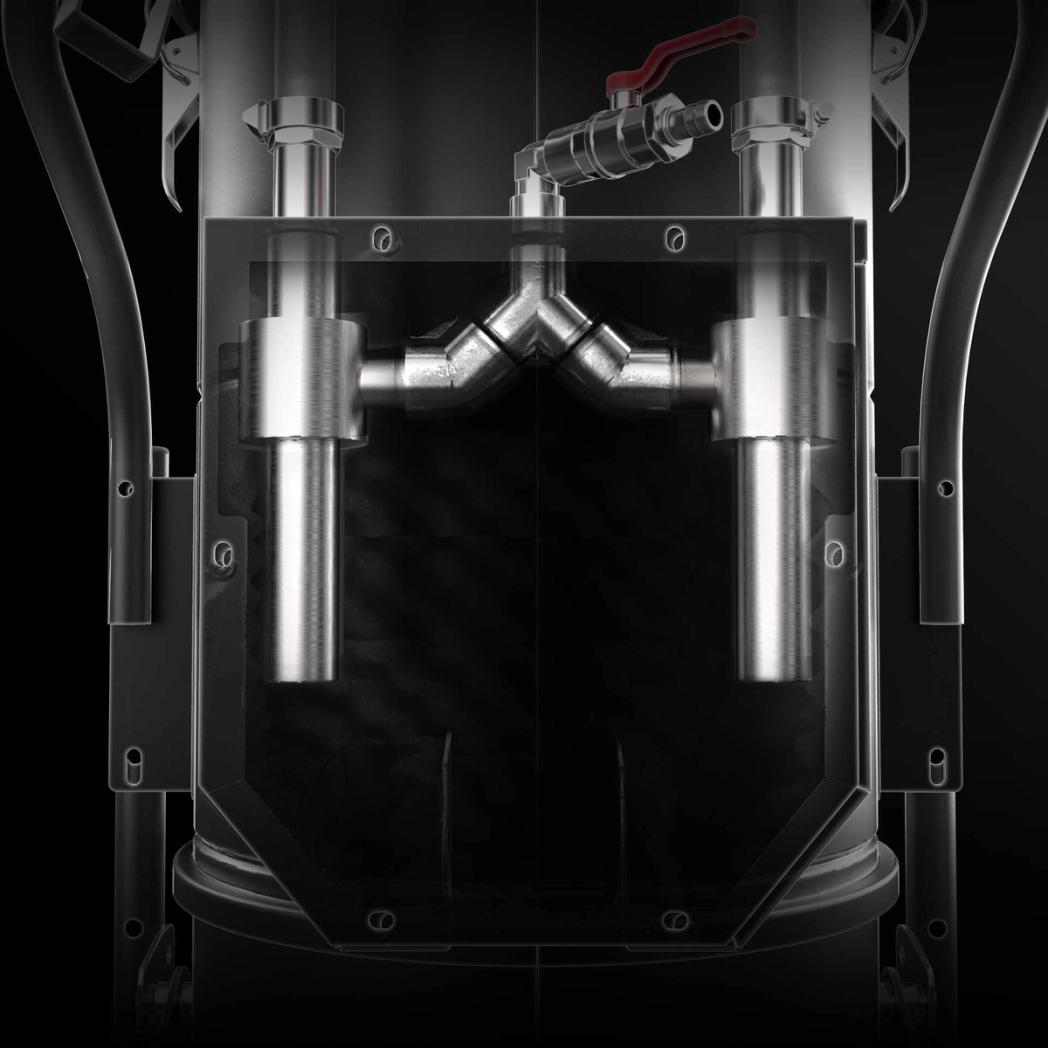

Suction is generated by two ejectors which generate, without the use of mechanical elements, a considerable vacuum inside the chamber, thus making suction possible.

FILTER UNIT

FILTER UNIT

Filtration is provided by a polyester star filter in class M (filtration efficiency 1 micron) with a high filtering surface area, which guarantees the passage of air even with a dirty filter.

FILTER CLEANING SYSTEM

FILTER CLEANING SYSTEM

An ergonomic manual filter shaker allows the filter to be cleaned easily and quickly, removing dust and debris from the surface of the filter.

COLLECTION UNIT

COLLECTION UNIT

The material is collected inside a coated bin complete with a handle that allows it to be released. Thanks to the 4 sturdy pivoting wheels, the container can be moved with ease and the collected material can then be disposed of.

Downloads

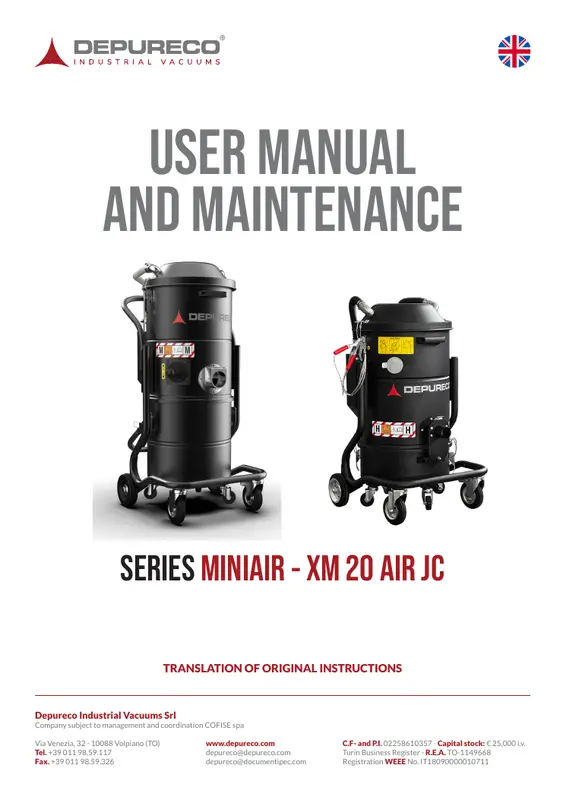

User Manual

Declaration of Conformity

Case Studies

Real Depureco installations.

See how our industrial vacuum systems are specified, supplied and commissioned on real industrial sites.

See case studies
Direct from the manufacturer UK-based technical team

Tell us what you need. We'll specify the right machine.

Send us a short description of the job — the material, the volume, the regulations that apply — and we'll come back with a recommended machine and a quote.

Typical response within one working day
