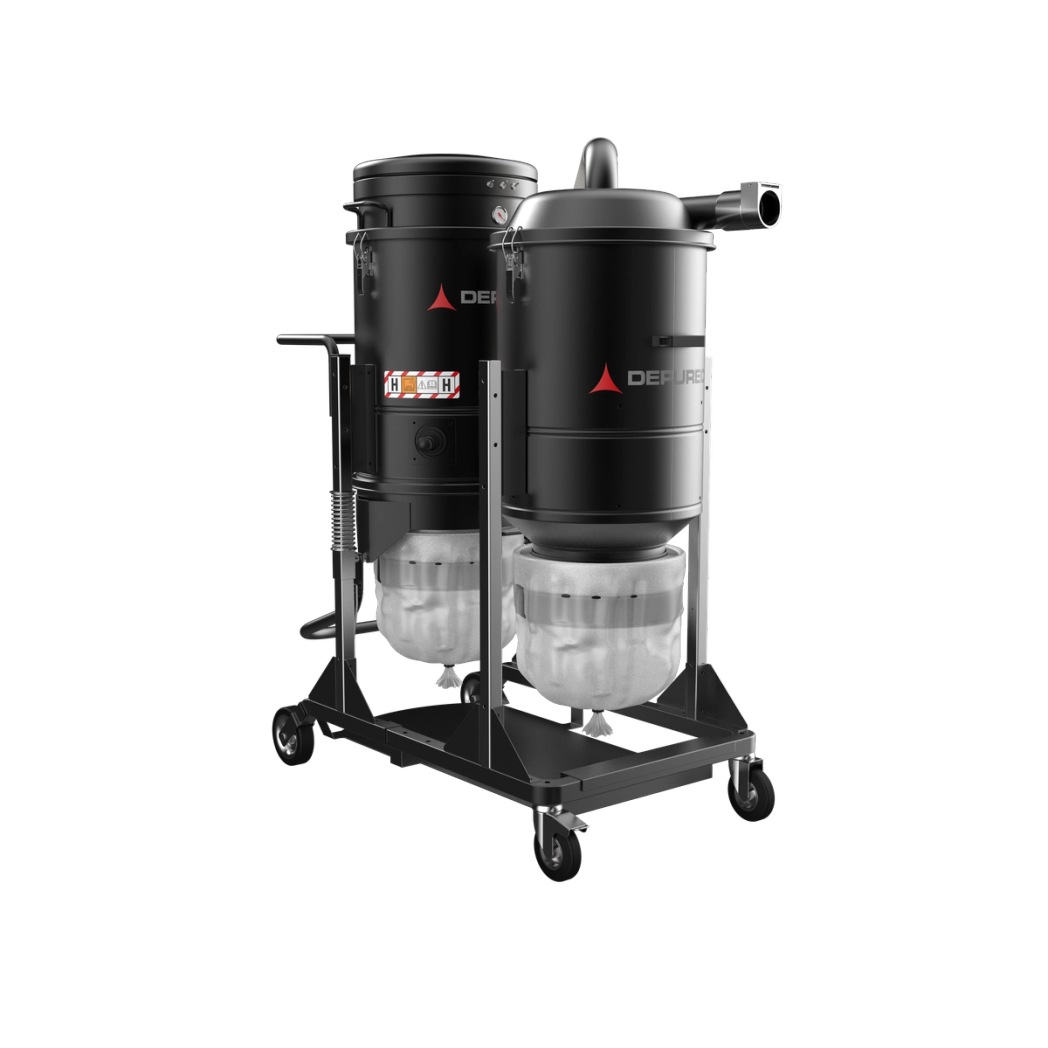

COMBO

COMBO

An industrial vacuum with an integrated preseparator, built for continuous fine-dust extraction through long, uninterrupted work cycles.

Request a Quote Ask a Question
Motor power 3.9 kW
Max airflow 570 m³/h
10-year guarantee

COMBO combines an industrial vacuum and an integrated preseparator in a single machine, engineered in Italy by Depureco to handle fine, dry and clogging powders. Three independent single-phase by-pass motors drive the suction, delivering effective extraction from a standard single-phase supply with 3.9 kW of installed motor power.

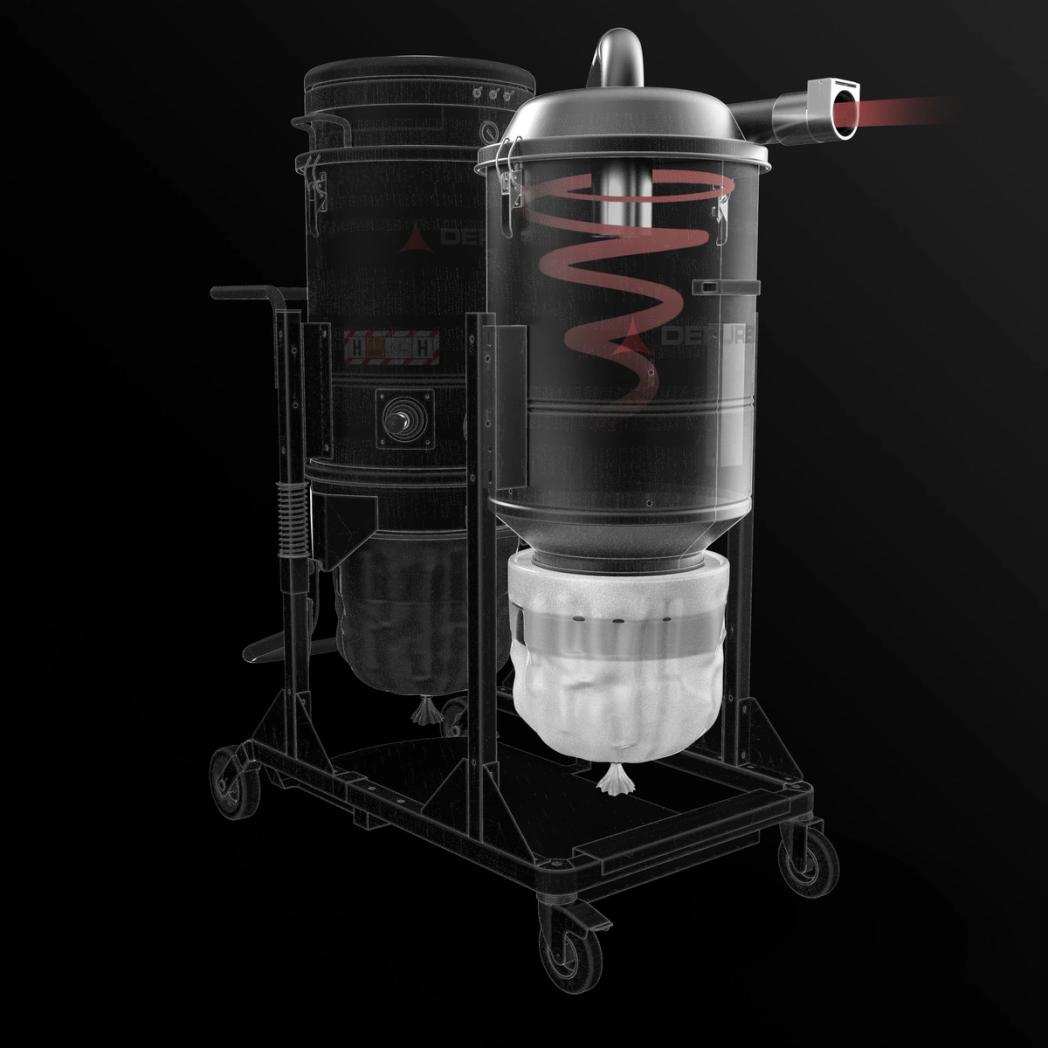

The built-in separator drops the bulk of the collected material out of the airstream before it reaches the filter, dramatically reducing the load on the primary filter. The result is long work cycles without interruption and far less time lost to filter maintenance — the kind of uptime that keeps total running cost down across a machine's working life.

Filtration is handled by a large-surface-area Class M star filter in polyester media, cleaned in seconds by a manual shaker without tools or downtime. For toxic and hazardous dusts, the double Endless Bag system seals the collected material as it is bagged, so operators never touch what has been extracted. COMBO is CE marked for ordinary, non-ATEX working areas.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type By-pass
Motor power 3.9 kW
Frequency 50/60 Hz
Voltage 230 V
Power supply Electrical

Machine

Dimensions 1,165 × 665 mm
Height 1,510 mm
Weight 99 kg
Suction inlet 70 mm
Suction inlet (vacuum side) 70 mm

Filter

Primary filter class M
Primary filter type Star
Filter media Polyester
Primary filter area 15,000 cm²
Filter cleaning system Manual

Performance

Max airflow 570 m³/h
Continuous vacuum 250 mbar
Noise level 72 dB(A)

Key Features

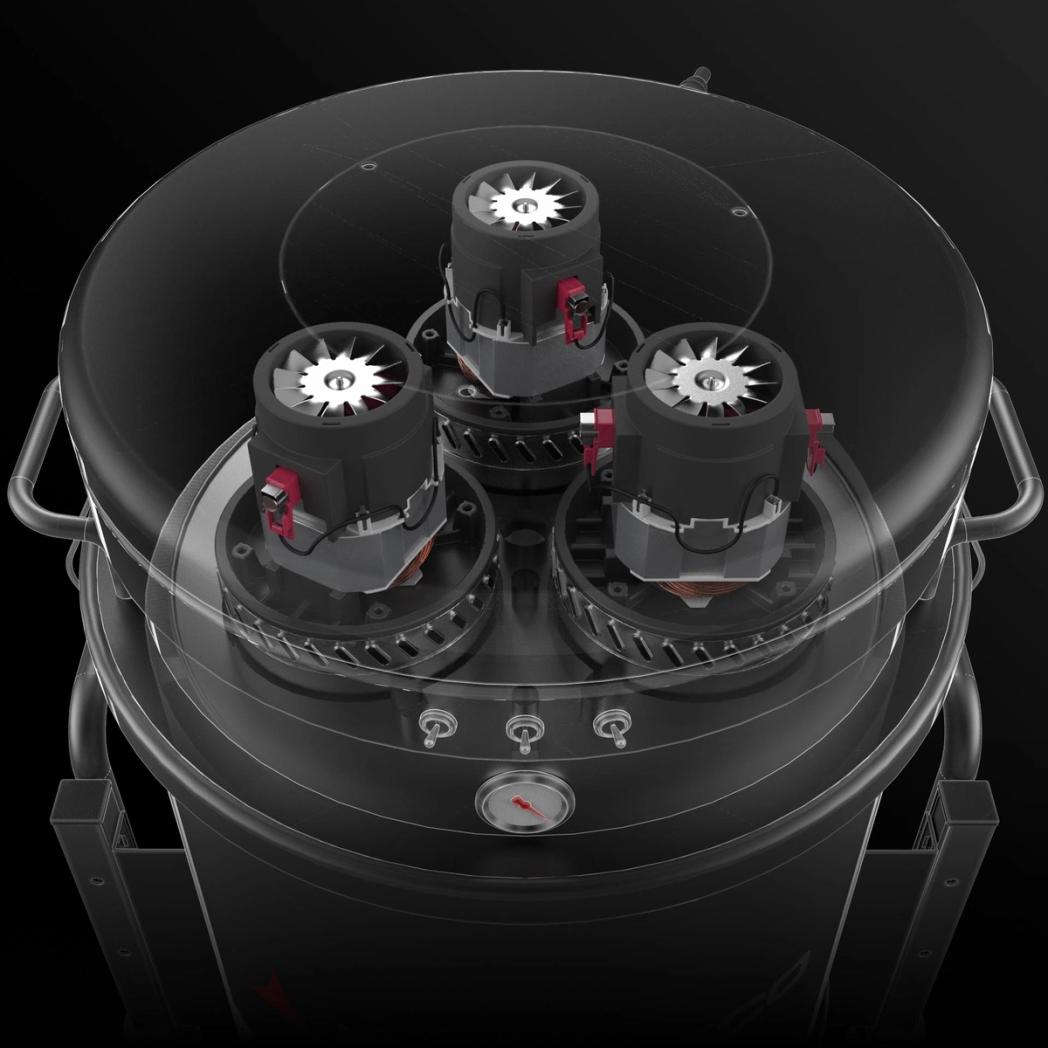

SUCTION UNIT

SUCTION UNIT

Suction is provided by 3 by-pass motors operated by independent switches, allowing the operator to control suction performance. The motors are located inside a robust enclosure, with an insulating sponge to maintain a low noise level.

FILTER UNIT

FILTER UNIT

Filtration is provided by a polyester star filter in class M (filtration efficiency 1 micron) with a high filtering surface area, which guarantees the passage of air even with a dirty filter.

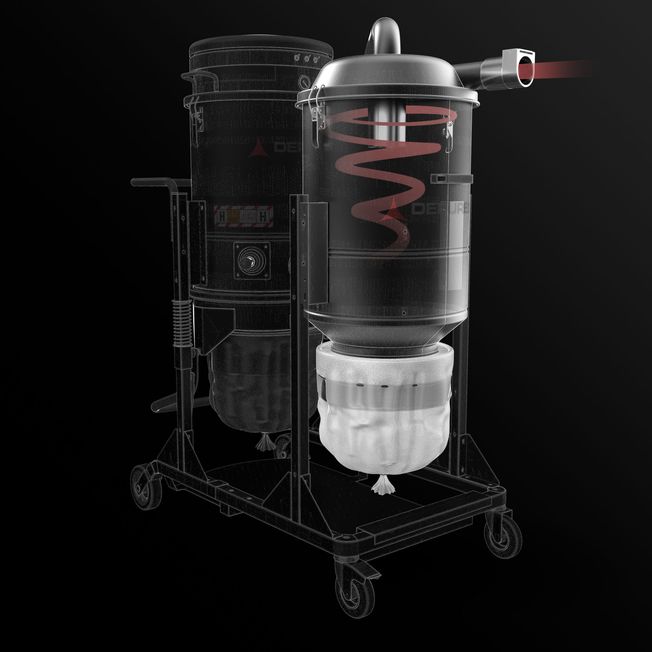

BUILT-IN PRE-SEPARATOR

BUILT-IN PRE-SEPARATOR

The vacuumed material is collected in a pre-separator integrated with the Endless Bag system. In this way only a small amount of lighter particles pass through the primary filter.

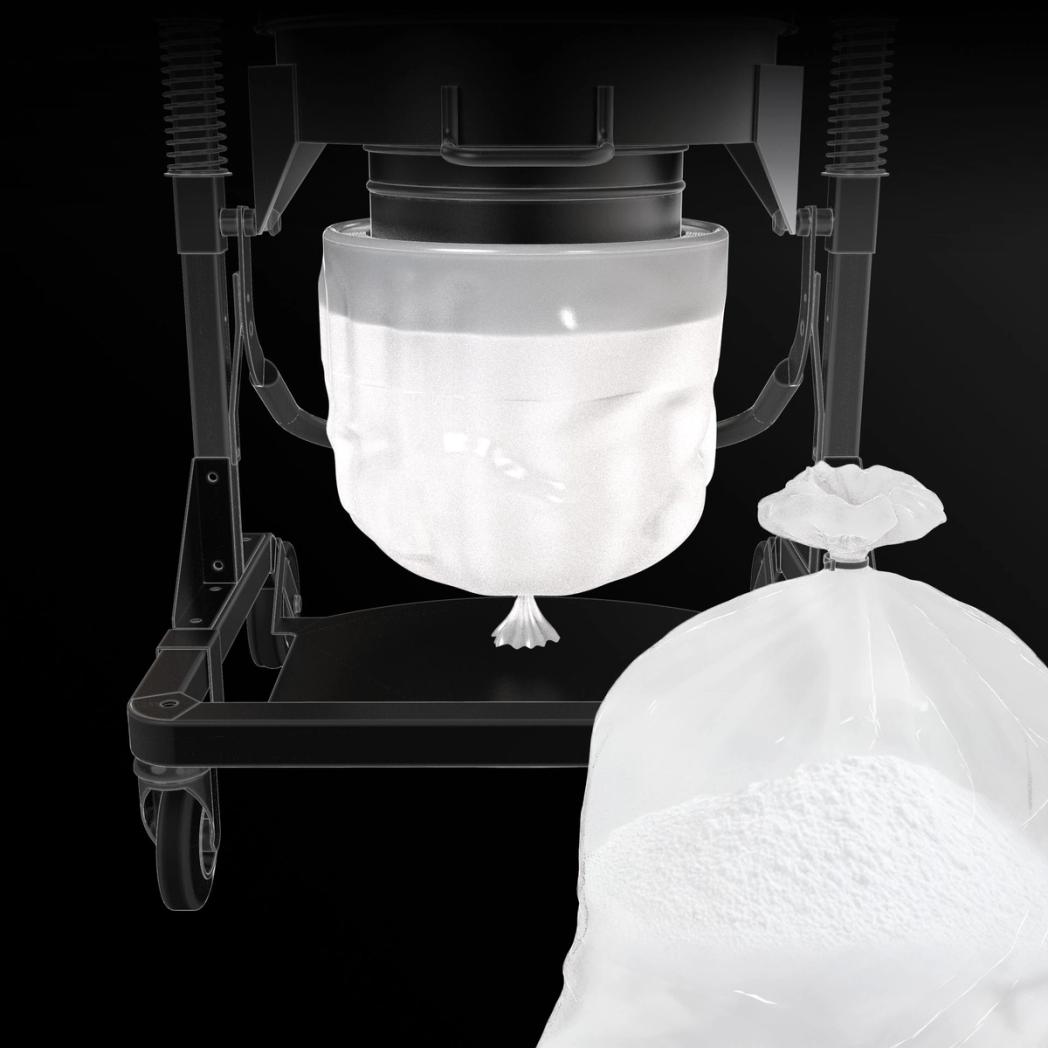

COLLECTION UNIT

COLLECTION UNIT

The material is collected inside a sturdy 20-meter-long adjustable roll plastic bag. Once the bag is filled, simply seal and remove it, with no contact between operator and material.

Downloads

Declaration of Conformity
