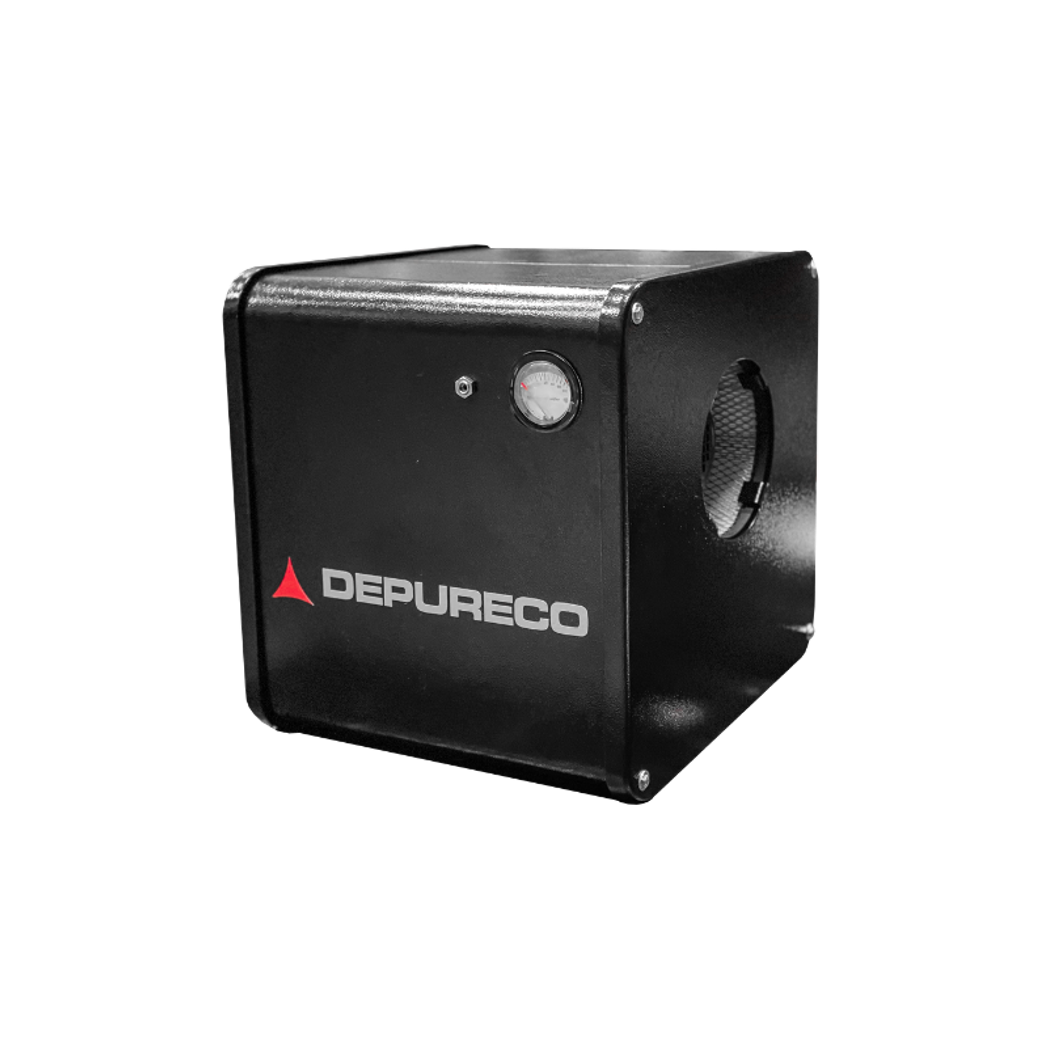

Depureco UK
CLEAN AIR

CLEAN AIR

Capture oily mist right at the machine tool and send clean, purified air straight back into the workshop.

Request a Quote Ask a Question
Motor power 0.25 kW | 0.37 kW | 0.55 kW | 0.75 kW
Max airflow 400 | 800 | 1,200 | 2,000 m³/h
10-year guarantee

The CLEAN AIR is Depureco's answer to the oily mist thrown off by machine tools. Fitted close to the machine, it draws that mist out of the air, collects the oil and expels it through a drainage pipe, then emits purified air back into the working environment. Compact and easy to adapt to almost any machine tool, it keeps operators breathing clean air without a bulky central installation.

CLEAN AIR is supplied in several sizes rather than a single fixed build, with the electric fan specified at 0.25 kW, 0.37 kW, 0.55 kW or 0.75 kW so the unit is matched to the machine and the volume of air it has to move. Filtration runs through four progressive stages of increasing efficiency, with an M-class cellulose cartridge as the primary filter, so mist is removed in steady steps rather than in one pass — which is why the air returned to the room is genuinely clean.

A high air flow rate keeps performance strong while low energy consumption holds running costs down, so the machine is economical to run as well as low in environmental impact. CLEAN AIR is CE-marked and built for ordinary, non-classified working areas; it is not ATEX zone-certified, so where a genuinely explosive atmosphere is present a zone-rated machine is required instead. For everyday oil-mist capture on the shop floor, it is the straightforward, energy-conscious choice.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type Electric Fan
Motor power 0.25 kW | 0.37 kW | 0.55 kW | 0.75 kW
Frequency 50/60 Hz
Voltage 400 V
Power supply Electrical

Machine

Dimensions 332 × 328 | 467 × 467 | 600 × 1,510 mm
Height 349 | 451 mm
Weight 24 | 40 | 41 | 54 kg
Suction inlet 120 | 150 | 200 mm

Filter

Primary filter class M
Primary filter type Cartridge
Filter media Cellulose

Performance

Max airflow 400 | 800 | 1,200 | 2,000 m³/h
Noise level 62 | 66 | 67 | 68 dB(A)

Key Features

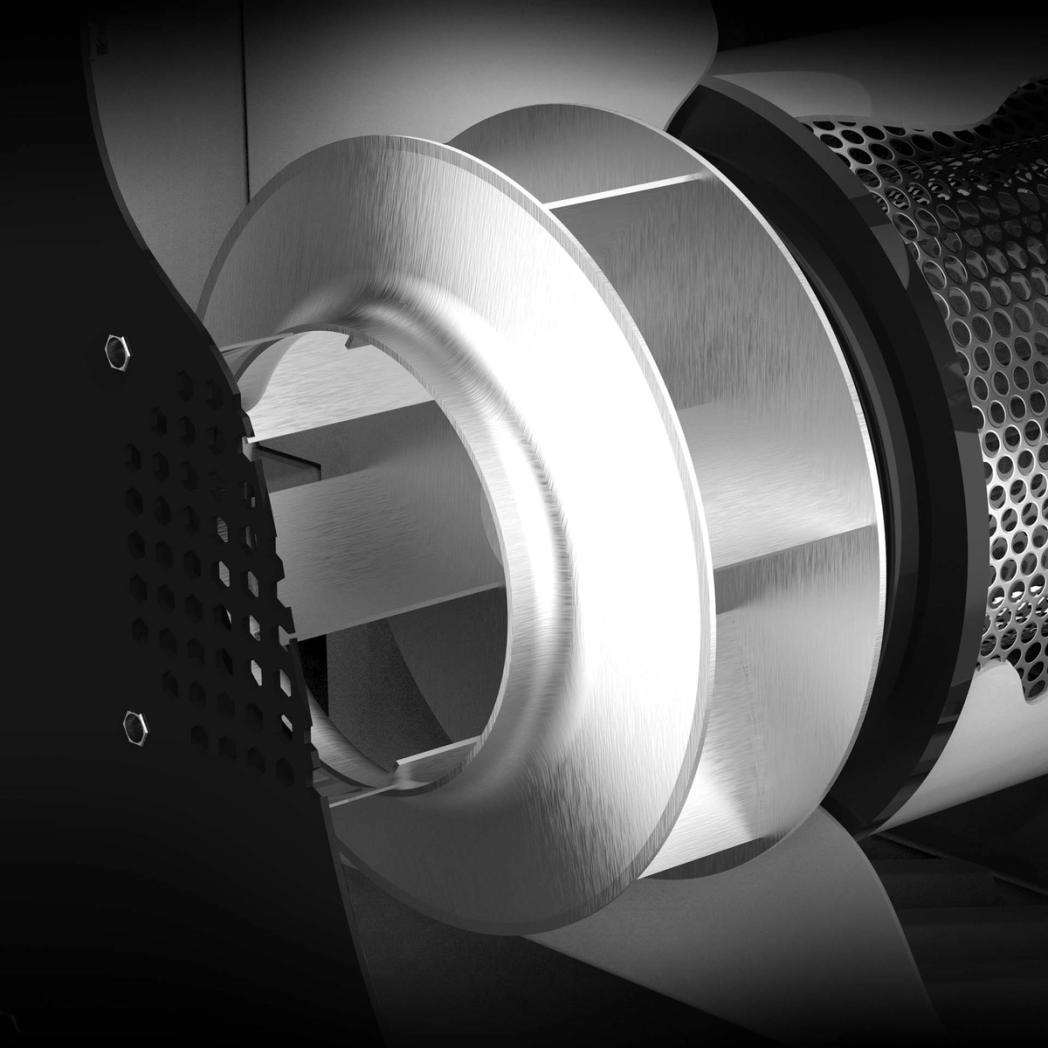

SUCTION UNIT

SUCTION UNIT

A backward-bladed impeller designed to generate a powerful coalescing effect is intended to quietly convey airflow into the vacuum cleaner.

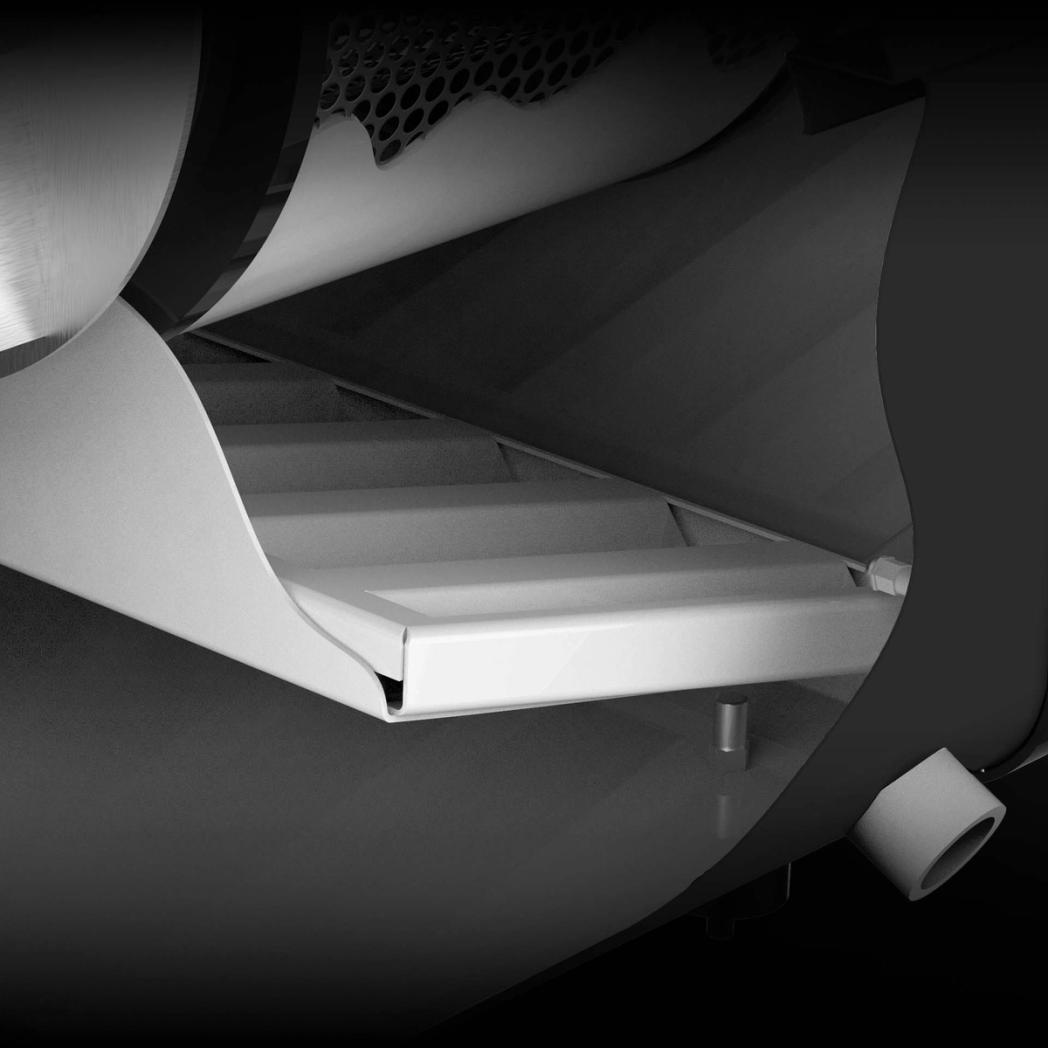

PRE-FILTERING UNIT

PRE-FILTERING UNIT

The fluid passes through an effective labyrinth prefilter for the removal of coarse mists.

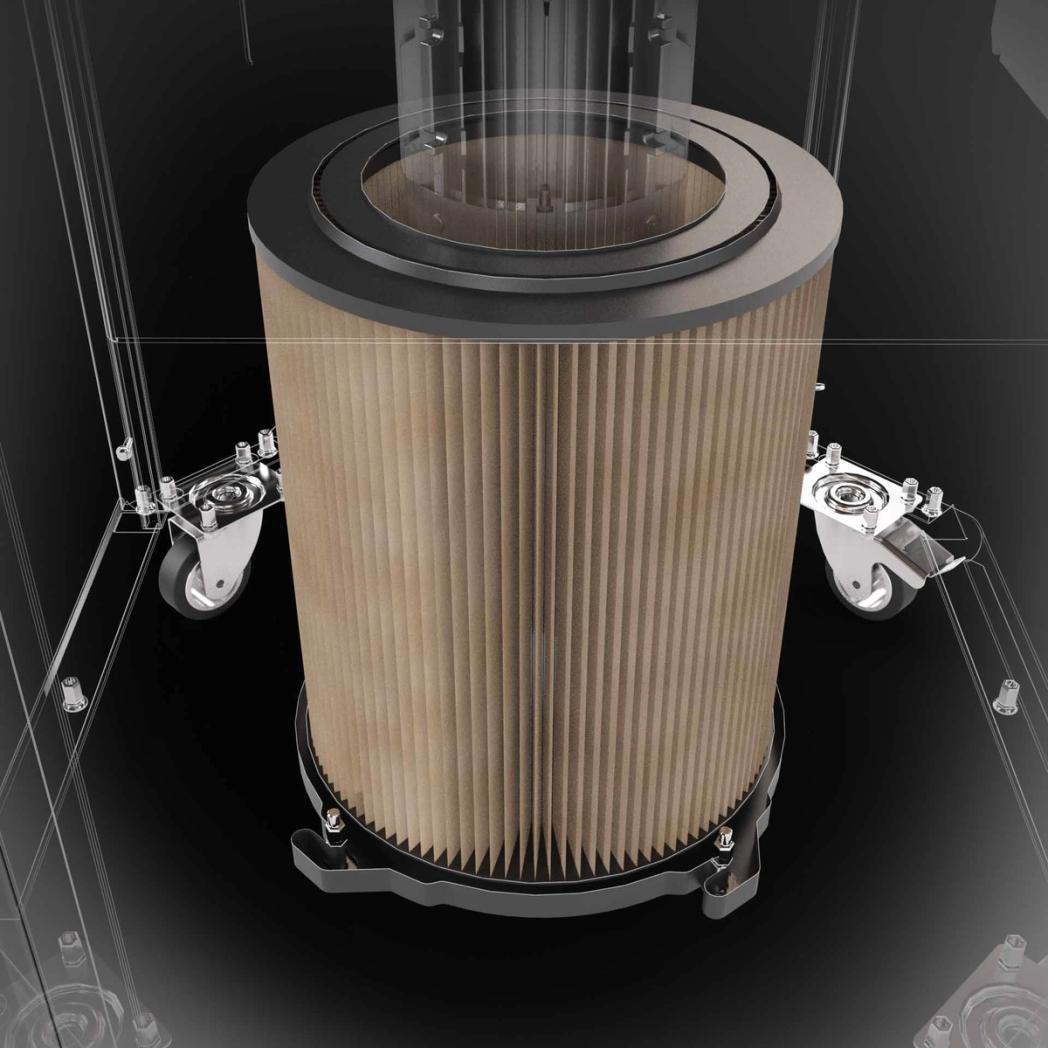

FILTER UNIT

FILTER UNIT

A special very high surface area M-class filter cartridge lined with a regenerable coalescing washing mat captures the remaining microneedles.

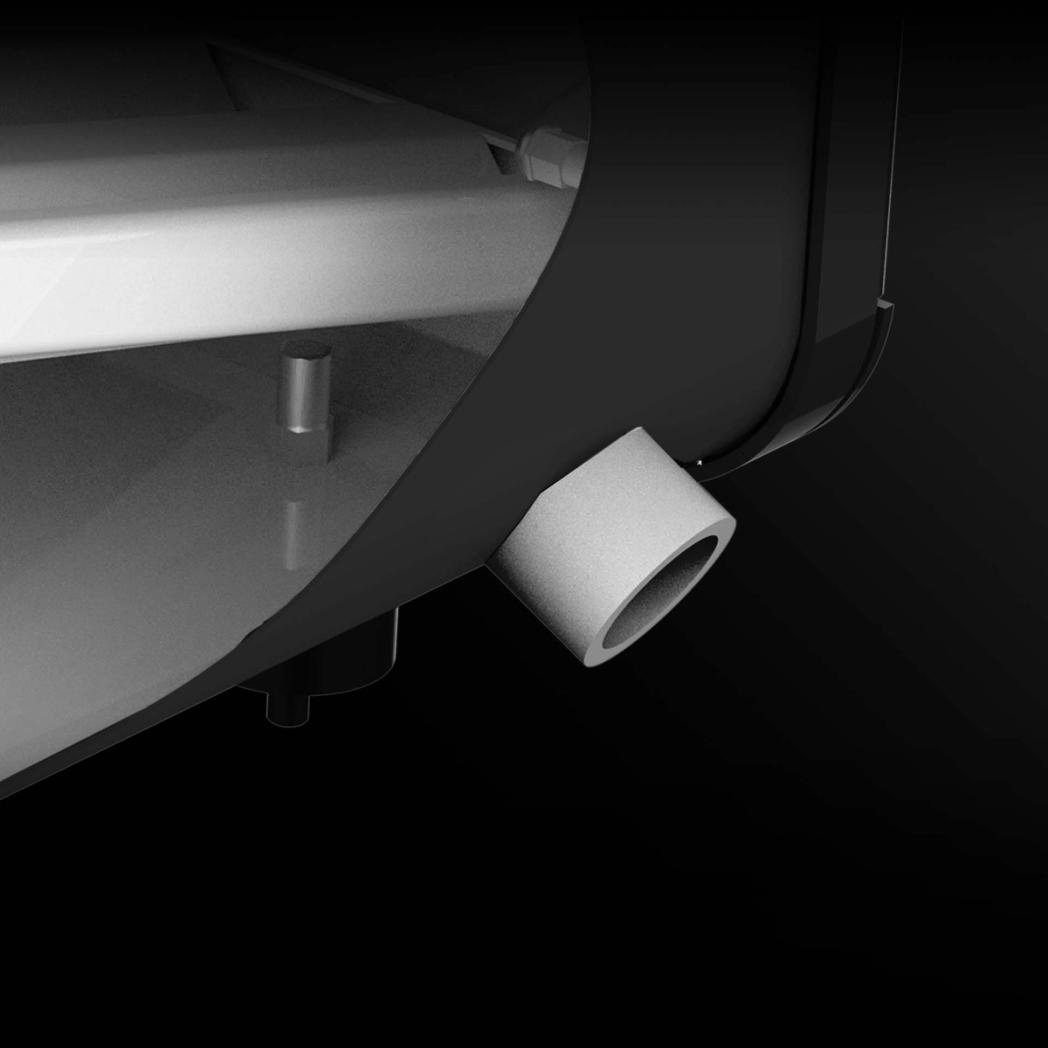

EXHAUST SYSTEM

EXHAUST SYSTEM

The dual recondensed lubricant-coolant drainage system ensures perfect and effective drainage in any application.

Downloads

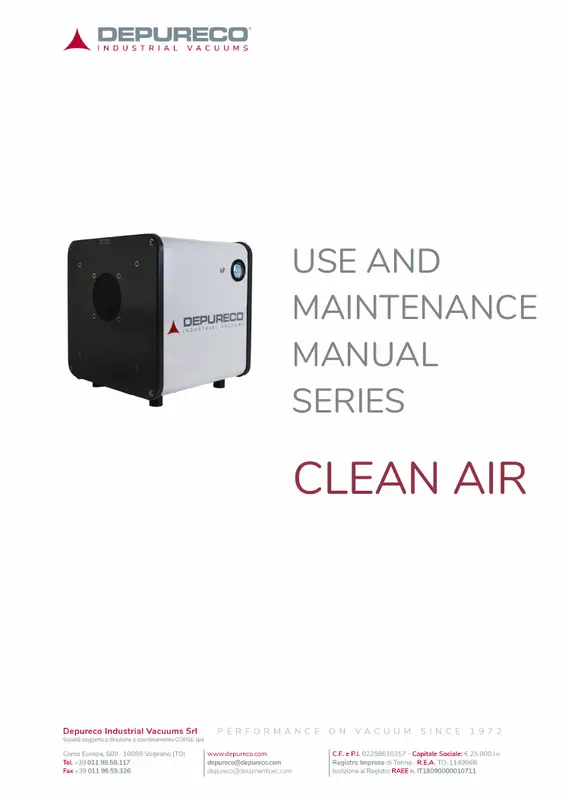

User Manual

Declaration of Conformity

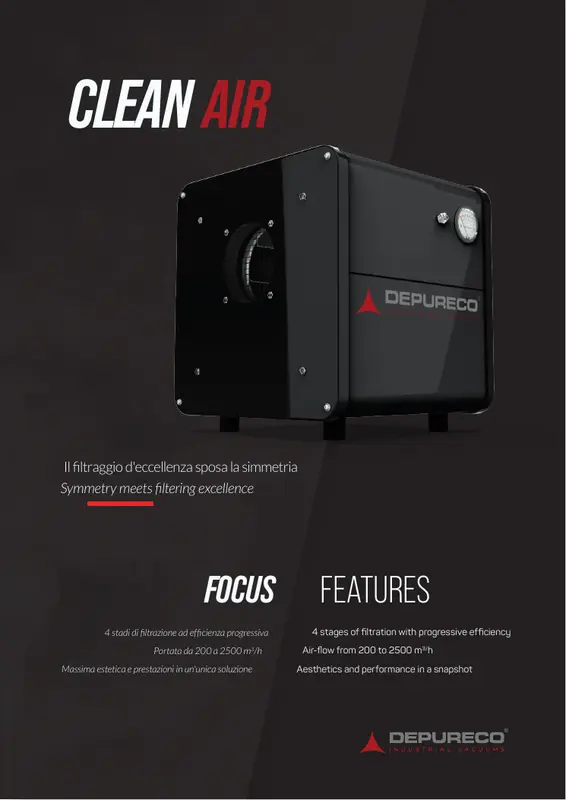

Brochure

Case Studies

Real Depureco installations.

See how our industrial vacuum systems are specified, supplied and commissioned on real industrial sites.

See case studies
Direct from the manufacturer UK-based technical team

Tell us what you need. We'll specify the right machine.

Send us a short description of the job — the material, the volume, the regulations that apply — and we'll come back with a recommended machine and a quote.

Typical response within one working day

Related Products

Similar machines

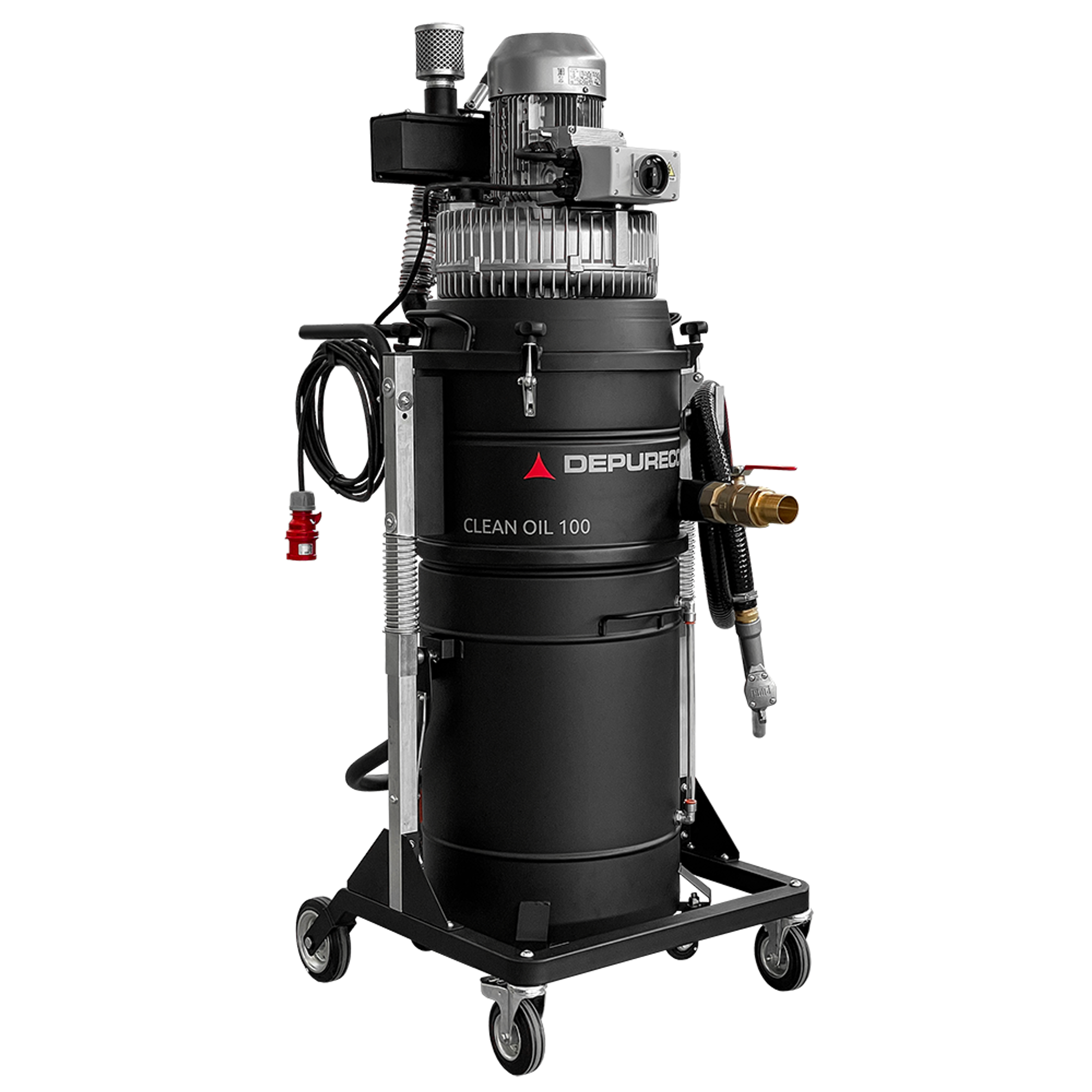

CLEAN OIL
Oil & swarf

CLEAN OIL

An industrial vacuum that separates oil and metal chips from tanks, tables and machine tools — filtering and reusing cutting and lubricating oils while collecting the swarf. Driven by a side channel blower with flux inversion, available in 2.2 kW and 3 kW versions.

Power 2.2–3 kW
Capacity 50 Lt
Airflow 350 m³/h
View CLEAN OIL

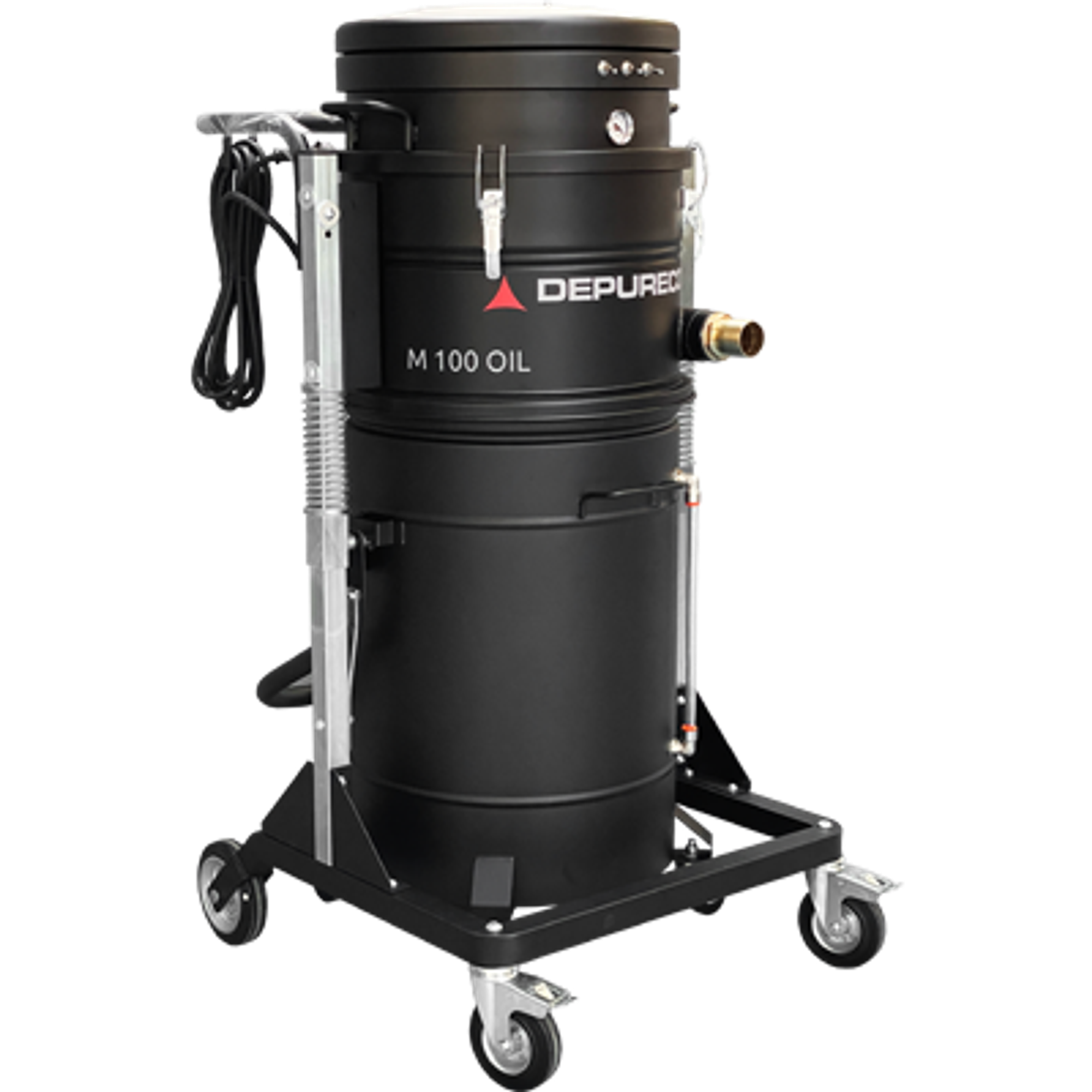

M100 OIL
Oil & swarf

M100 OIL

The M100 OIL is a Depureco industrial vacuum that separates oil and metal swarf from tanks, tables and machine tools, filters the fluid for reuse and discharges it by gravity. Three single-phase by-pass motors provide the suction, in a sturdy painted-steel body built for the workshop.

Power 3.9 kW
Capacity 50 Lt
Airflow 570 m³/h
View M100 OIL

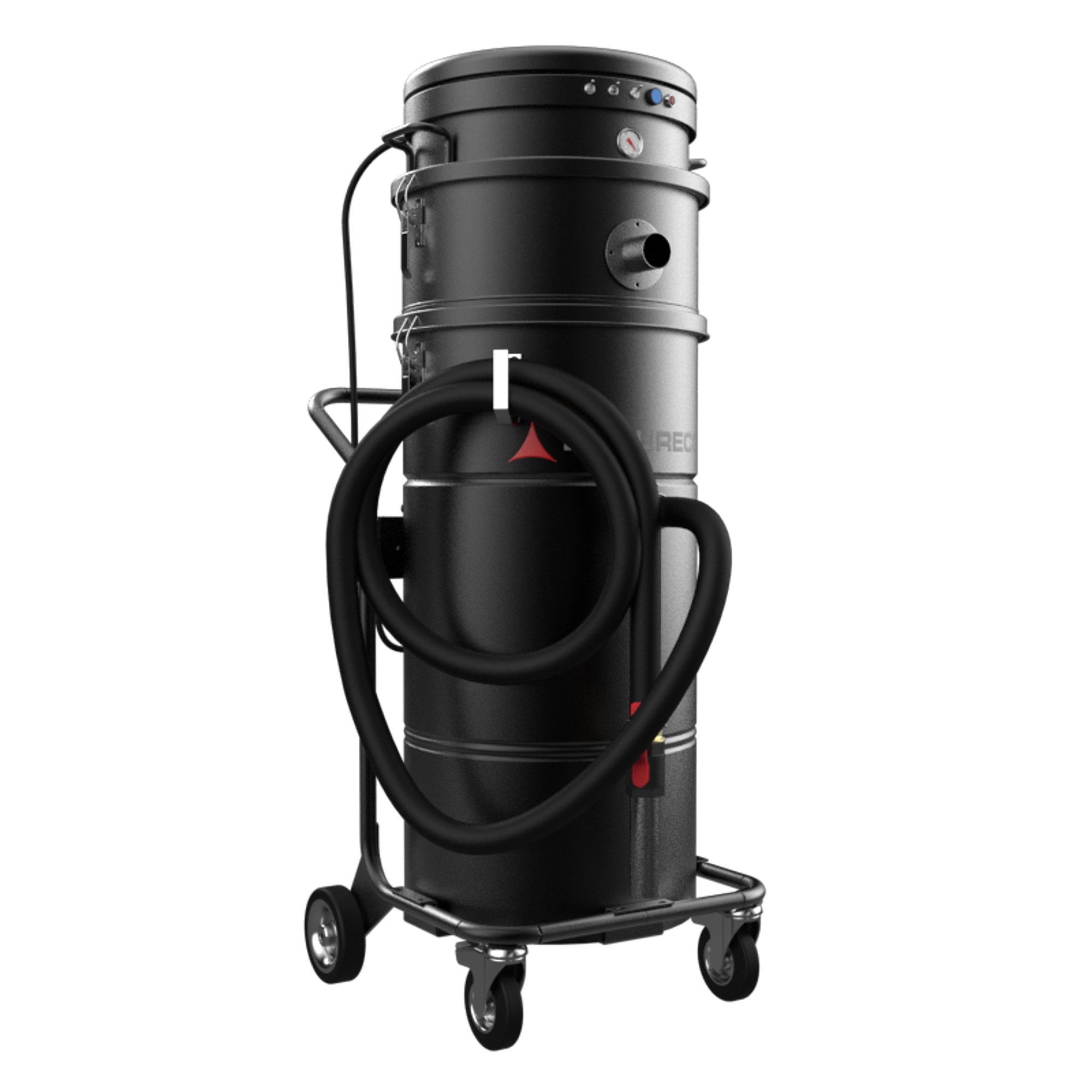

M130 OIL P
Oil & swarf

M130 OIL P

An industrial sump vacuum that separates cutting and lubricating oil from metal swarf, then pumps the filtered oil back out for reuse — clearing machine-tool sumps and recovering the oil in a single pass.

Power 2.6 kW
Capacity 40 Lt
Airflow 380 m³/h
View M130 OIL P

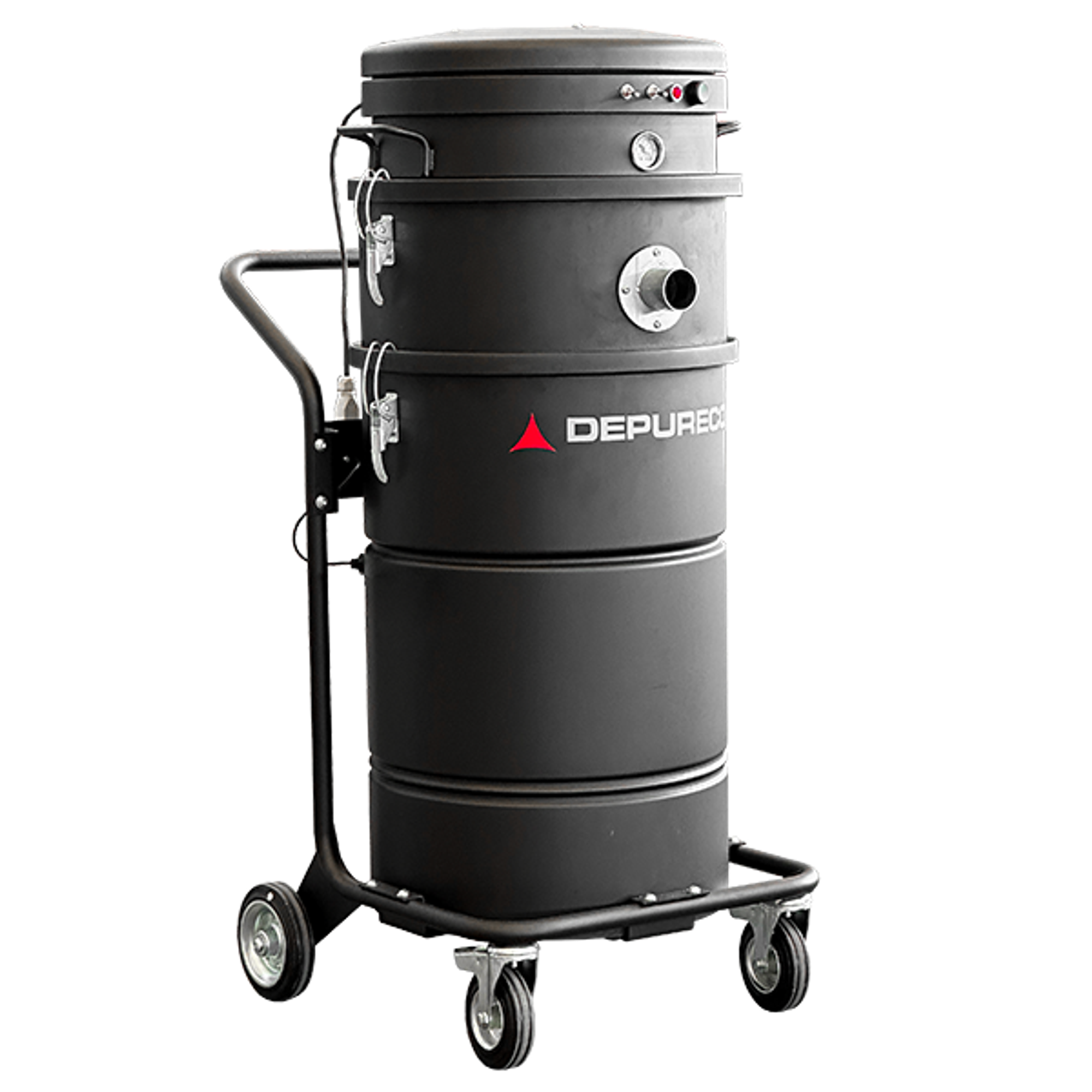

M70 OIL
Oil & swarf

M70 OIL

An industrial vacuum that separates oil and metal swarf from tanks, tables and machine tools, filtering cutting and lubricating oils for reuse. Driven by a 2.6 kW by-pass motor, with anti-foam filtration and a gravity drain hose, in sturdy painted steel.

Power 2.6 kW
Capacity 40 Lt
Airflow 380 m³/h
View M70 OIL

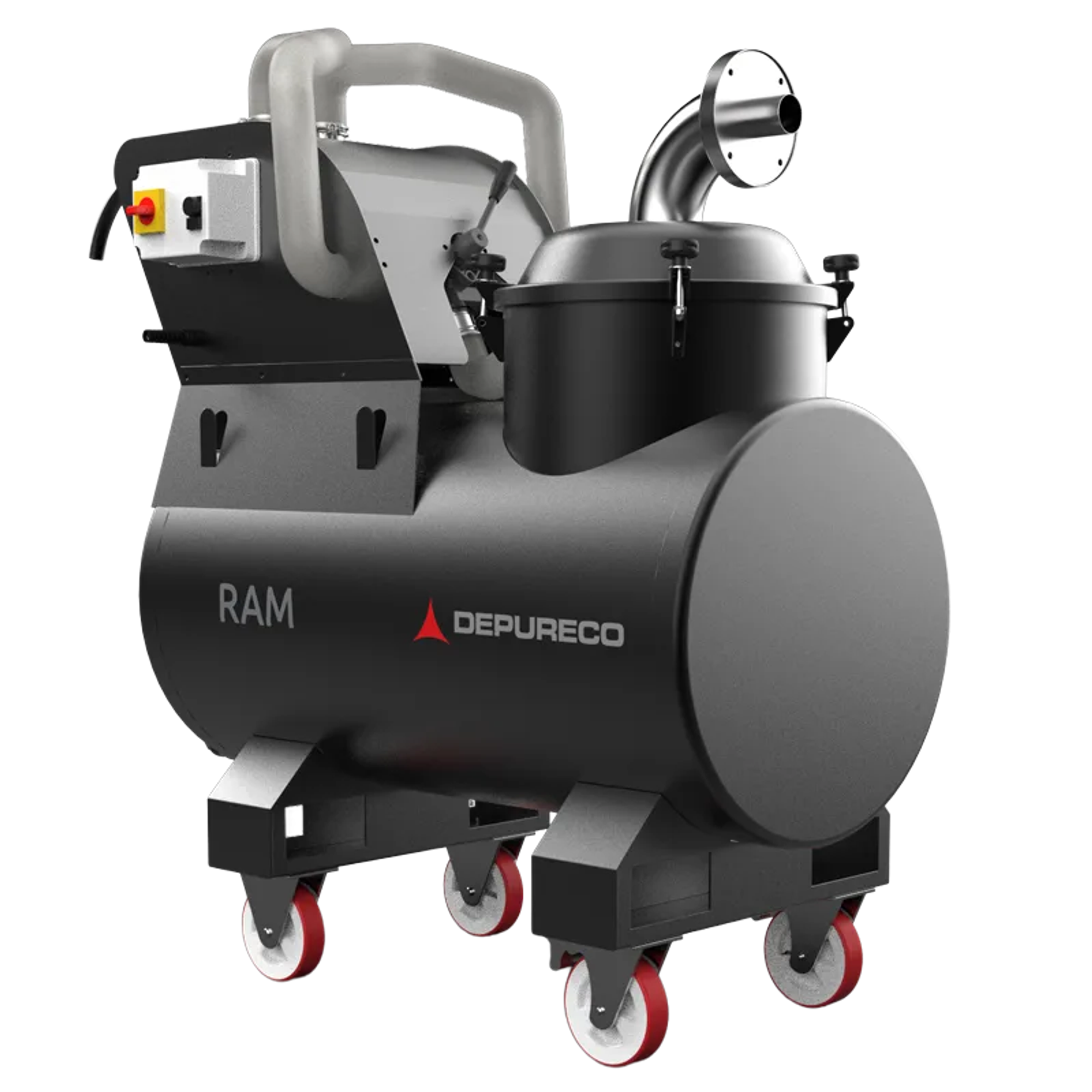

RAM OIL
