AS

Clear long, bulky production offcuts straight off the line — and compact them as the container fills.

Motor power 0.85 kW | 1.6 kW | 2.2 kW
Container capacity 120 Lt
Max airflow 150 | 280 | 320 m³/h
10-year guarantee

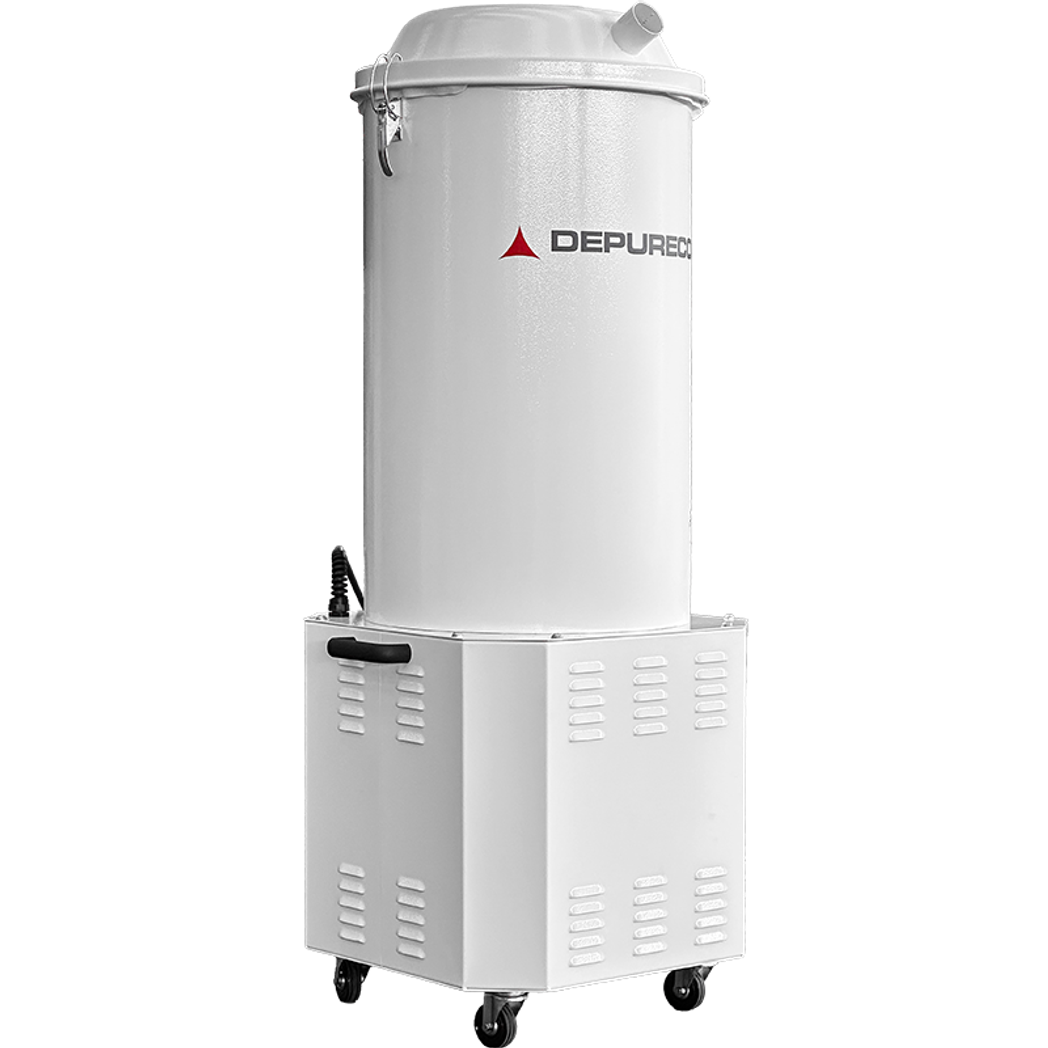

The Depureco AS is an industrial vacuum engineered for one job: clearing the long, bulky offcuts that a standard vacuum chokes on. Trims, production cuttings, paper, leather, plastic and packaging are drawn straight in and, thanks to its purpose-built construction, automatically compacted inside the container — so you get the full use of its capacity before it needs emptying.

Because it can be installed directly on your production lines, the AS keeps waste moving without a separate manual clearing step, and a viewing window lets operators check the fill level at a glance. A side channel blower drives the suction, and the machine is offered in three motor configurations — 0.85 kW, 1.6 kW and 2.2 kW — so you can match airflow to the volume and density of the material you are handling.

Every AS is CE-marked and fitted with a vacuum-limiter safety valve to protect the motor, with a polyester bag filter handling the primary filtration. It is designed for ordinary (non-ATEX) production environments — Italian-engineered by Depureco, a manufacturer that has specified industrial vacuum systems since 1972.

CE
CE CE marking — conformity with EU health, safety and environmental directives.

Technical Data

Motor

Motor type Side channel blower
Motor power 0.85 kW | 1.6 kW | 2.2 kW
Frequency 50/60 Hz
Voltage 400 V
Insulation class 55 | F
Power supply Electrical

Machine

Safety valve Vacuum limiter valve
Container capacity 120 Lt
Dimensions 510 × 590 | 600 × 500 mm
Height 1,440 mm
Weight 58 | 66 | 70 kg
Suction inlet 50 mm

Filter

Primary filter type Bag
Filter media Polyester

Performance

Max airflow 150 | 280 | 320 m³/h
Continuous vacuum 160 | 190 | 210 mbar
Noise level 64 dB(A)

Key Features

SUCTION UNIT

SUCTION UNIT

The suction unit is a side channel blower with direct coupling between motor and impeller. The turbine is equipped with a safety valve that ensures continuous, maintenance-free operation. A metal silencer is included as standard in the turbine to ensure a low noise level.

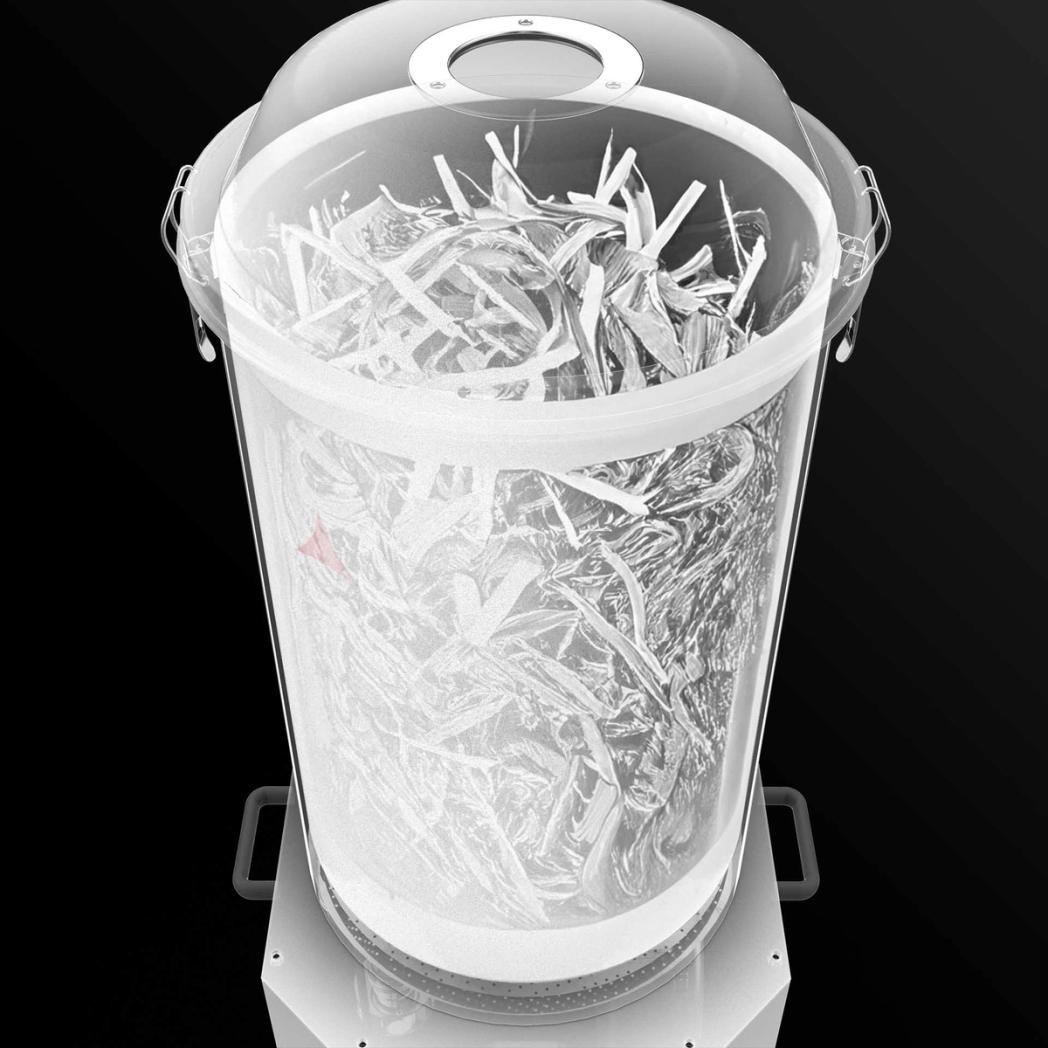

FILTERING COLLECTION BAG

FILTERING COLLECTION BAG

Polyester bag filter for material collection that compacts material to the bottom, thus enabling the suction of large amounts of material

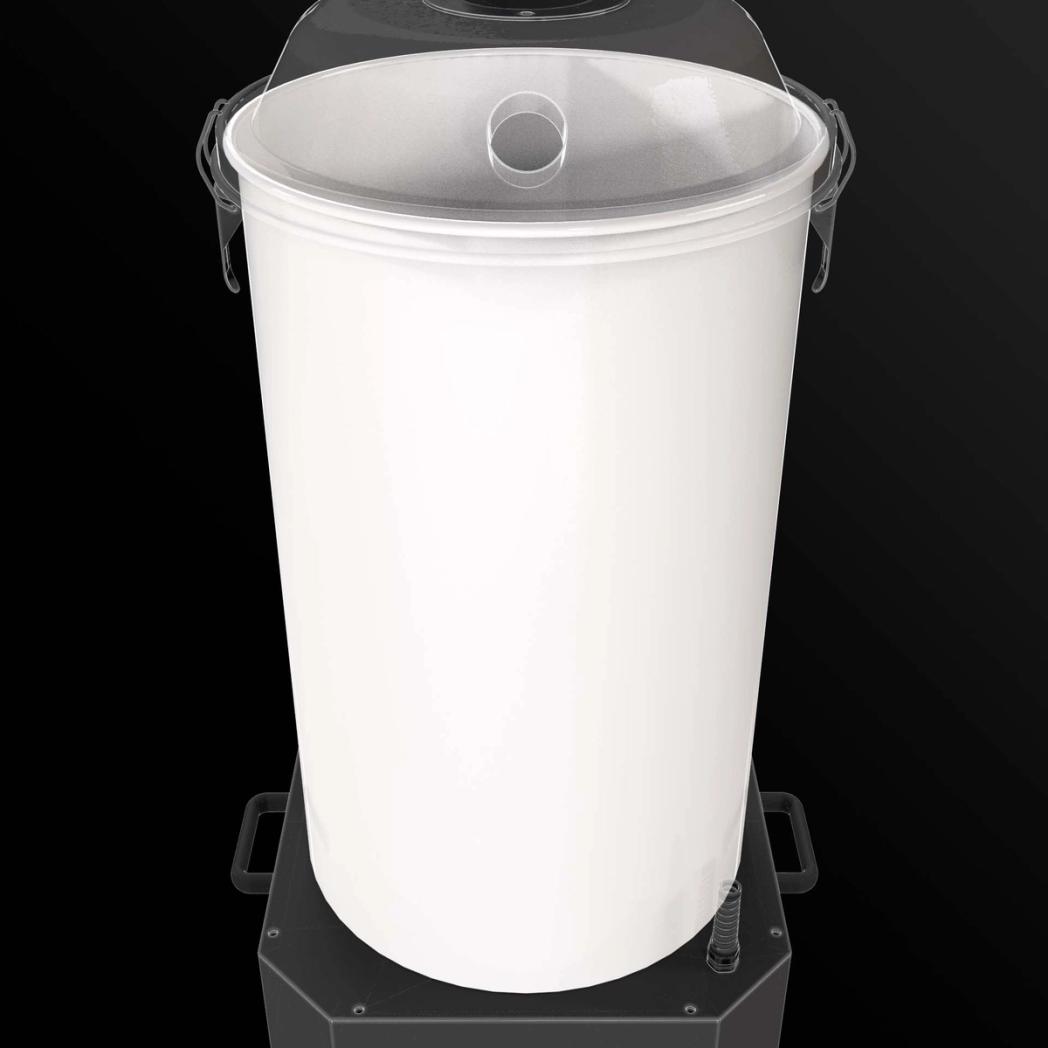

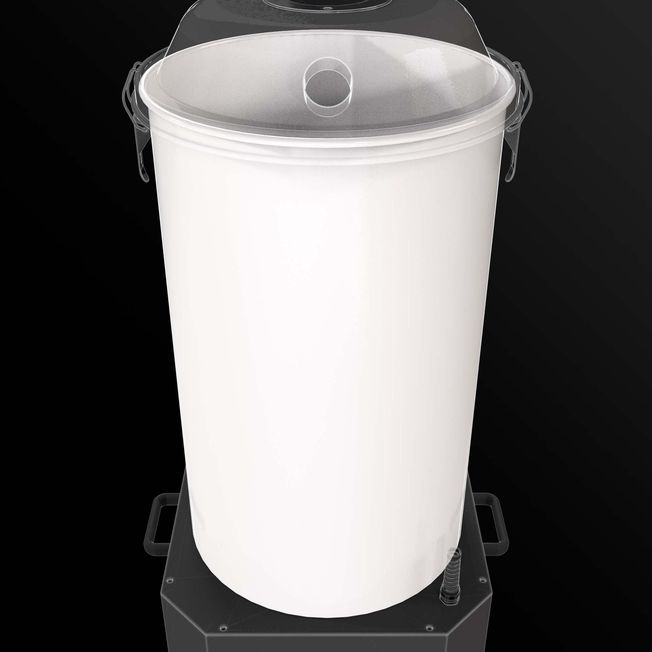

COLLECTION UNIT

COLLECTION UNIT

The material is collected inside the large steel vacuum chamber, which is easy to move thanks to the 4 sturdy wheels.

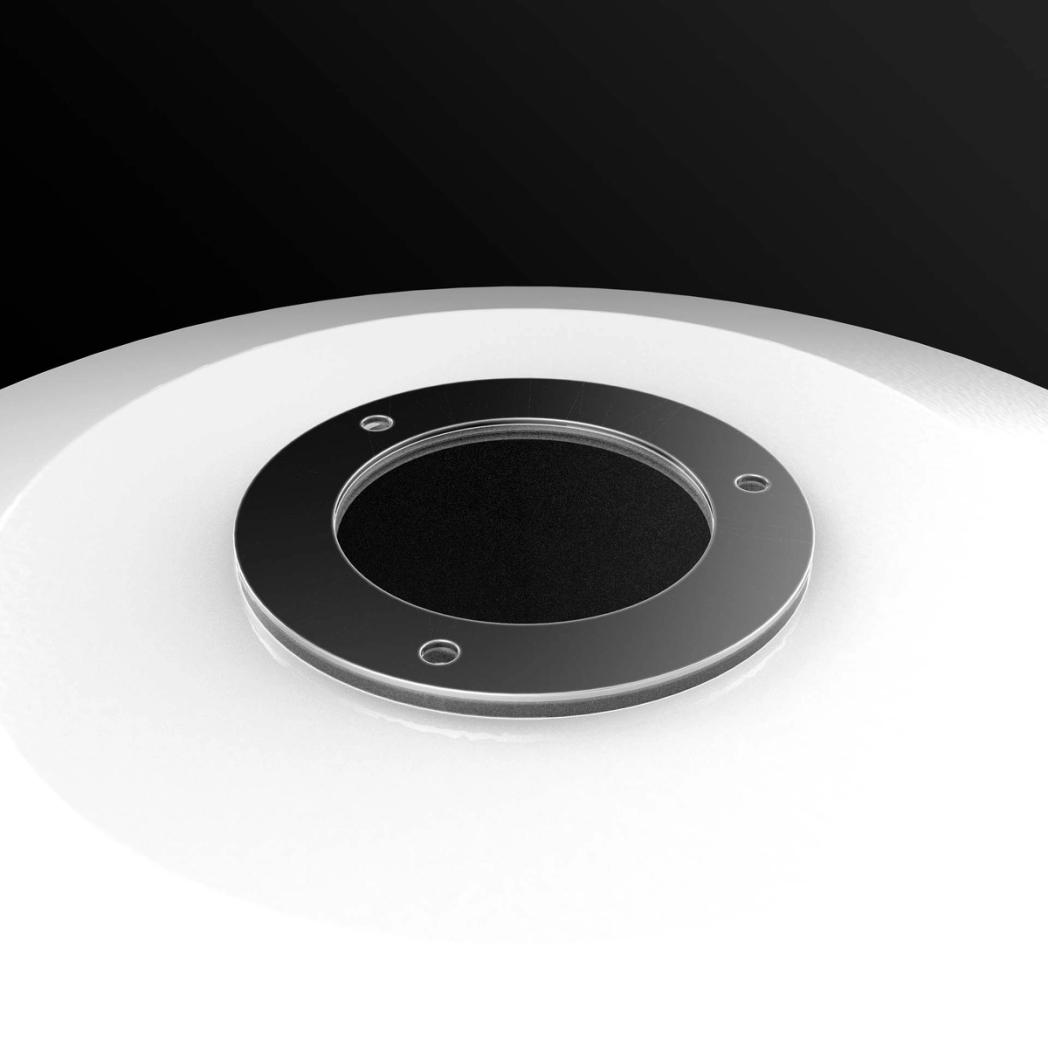

LEVEL INSPECTION DOOR

LEVEL INSPECTION DOOR

An inspection window allows inspection of the amount of material inside the container without having to open the top cover

Downloads

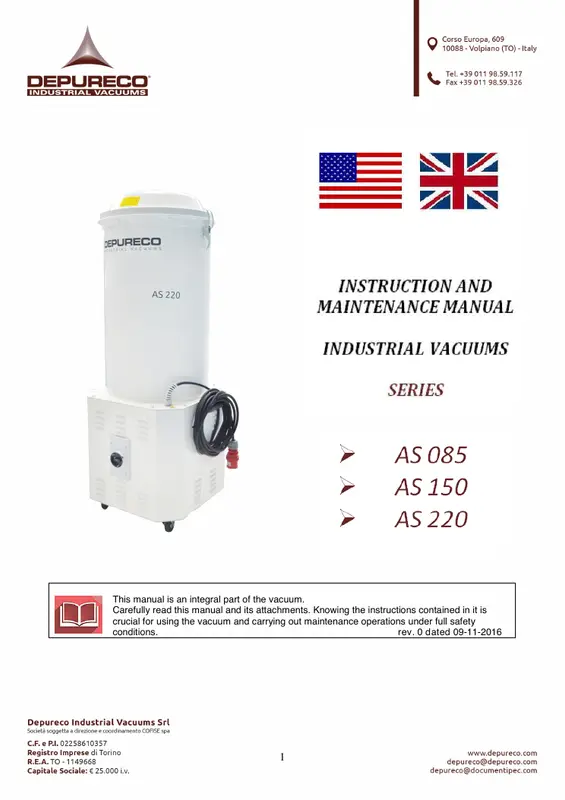

User Manual

Declaration of Conformity

Brochure

Case Studies

Real Depureco installations.

See how our industrial vacuum systems are specified, supplied and commissioned on real industrial sites.

See case studies
Direct from the manufacturer UK-based technical team

Tell us what you need. We'll specify the right machine.

Send us a short description of the job — the material, the volume, the regulations that apply — and we'll come back with a recommended machine and a quote.

Typical response within one working day
